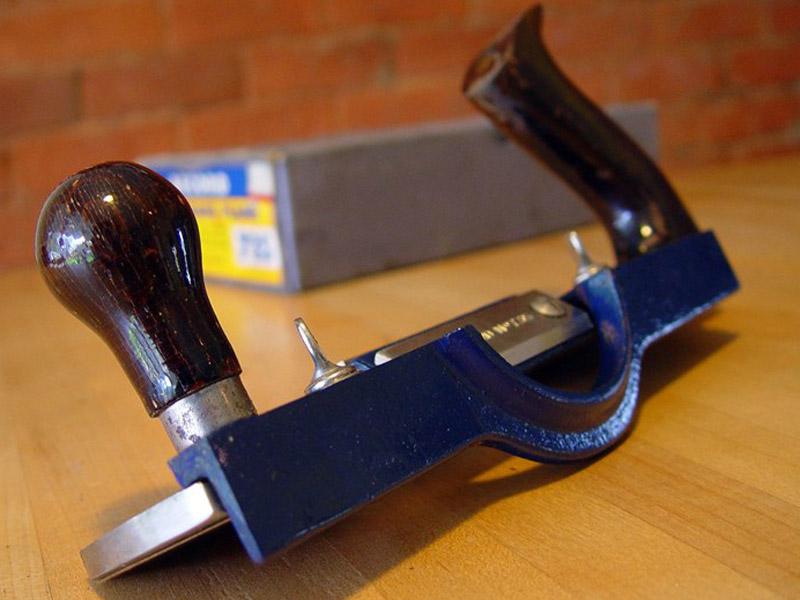

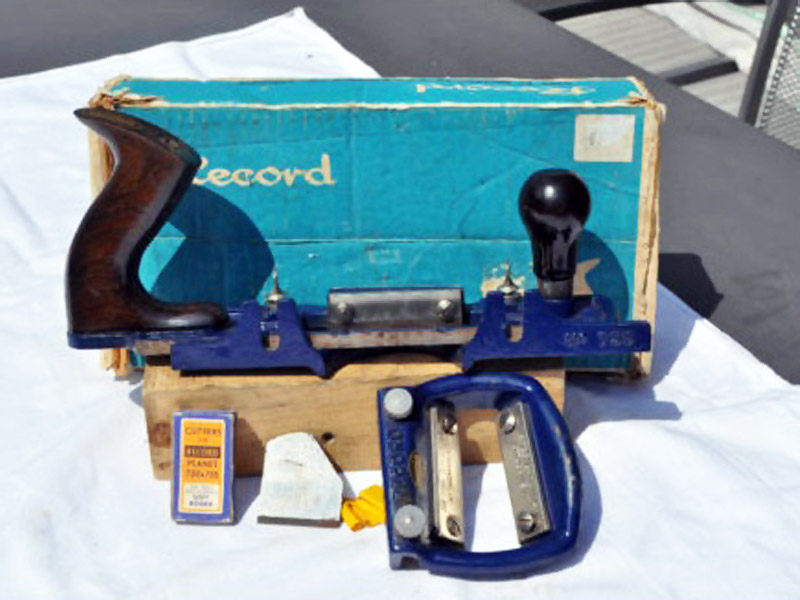

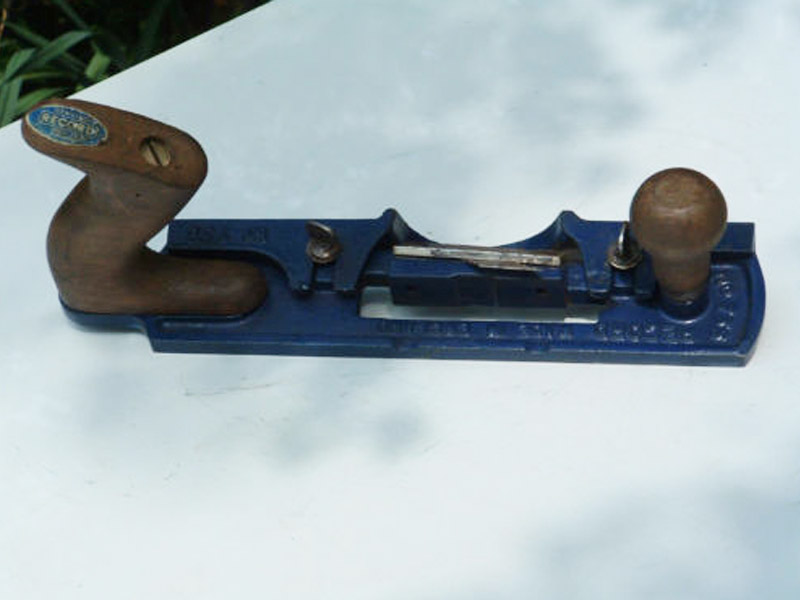

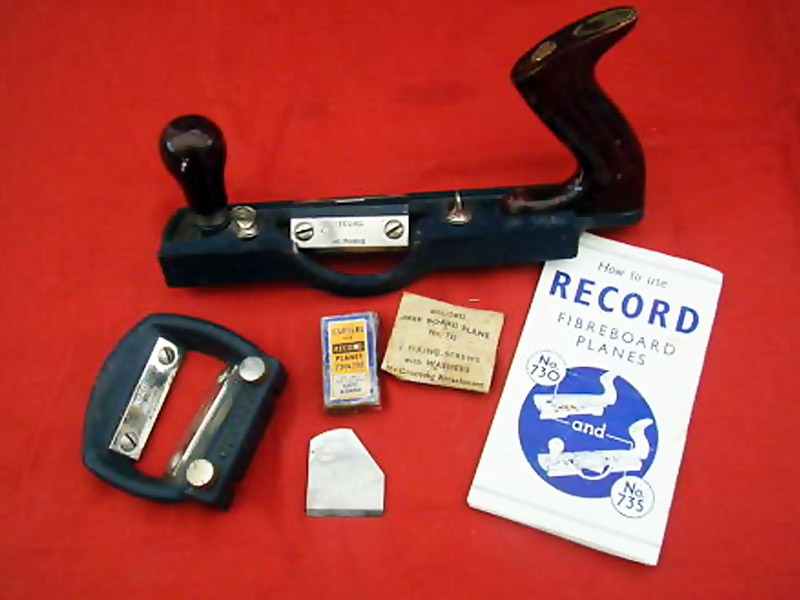

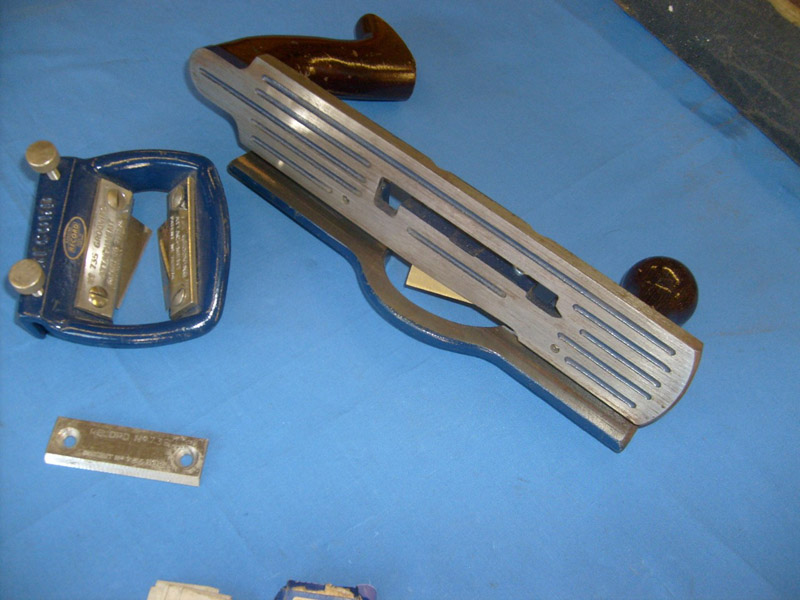

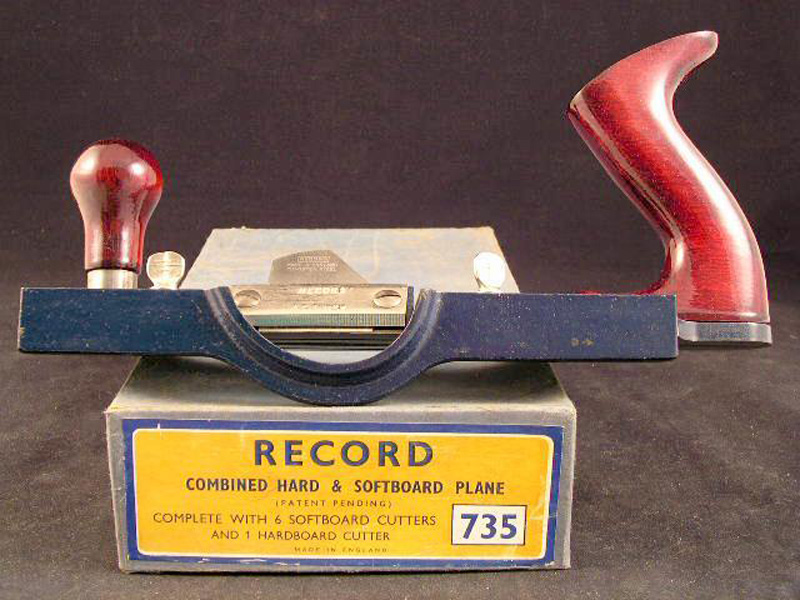

Record No. 735 Combined Hard & Softboard Plane
as illustrated in Pocket Catalogue No. 16 in 1955

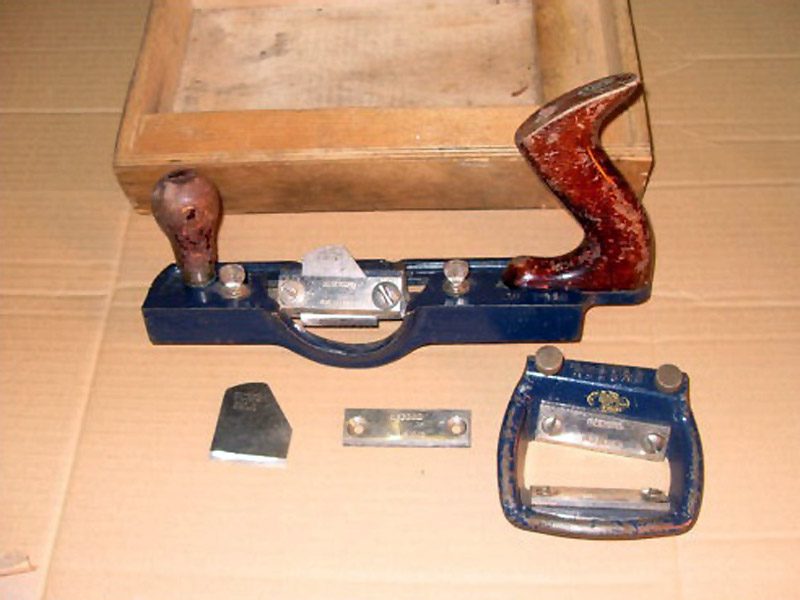

In addition to slitting and bevelling of soft insulating board, the 735 Combined Hard & Softboard Plane differed to the 730 Softboard Plane in that it could also cut and bevel hardboard, such as Masonite. For this purpose it used a slightly thicker razor blade type cutter, as well as an attachable fence.

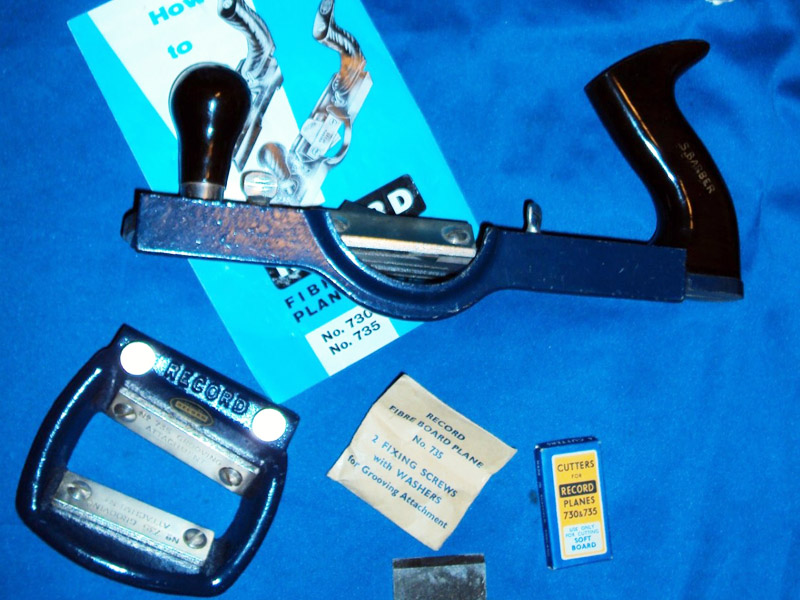

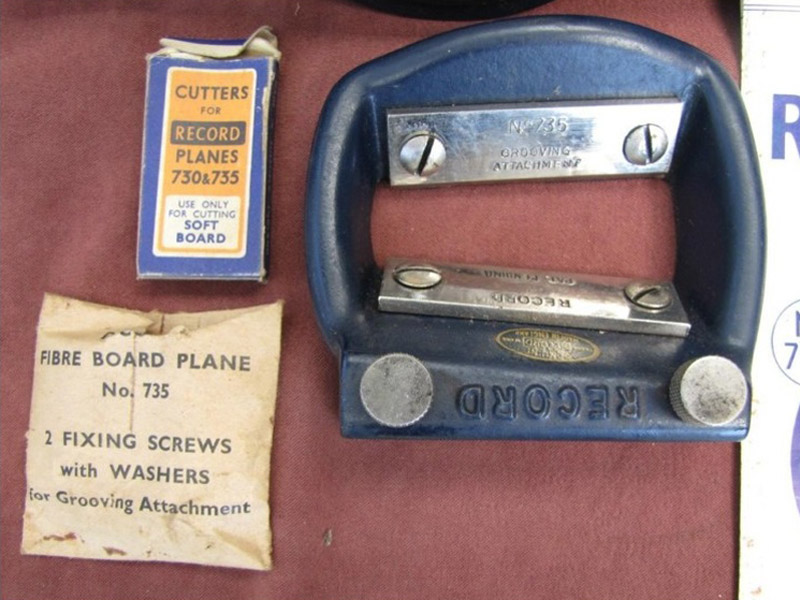

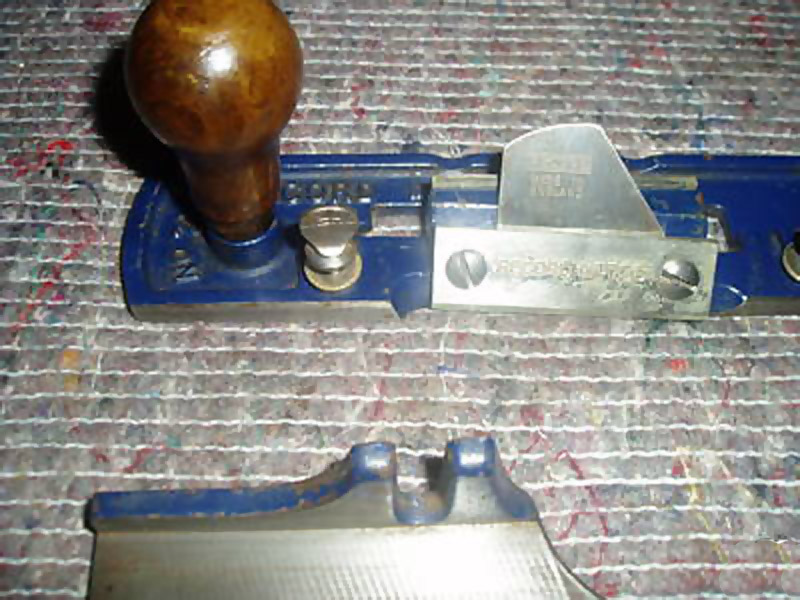

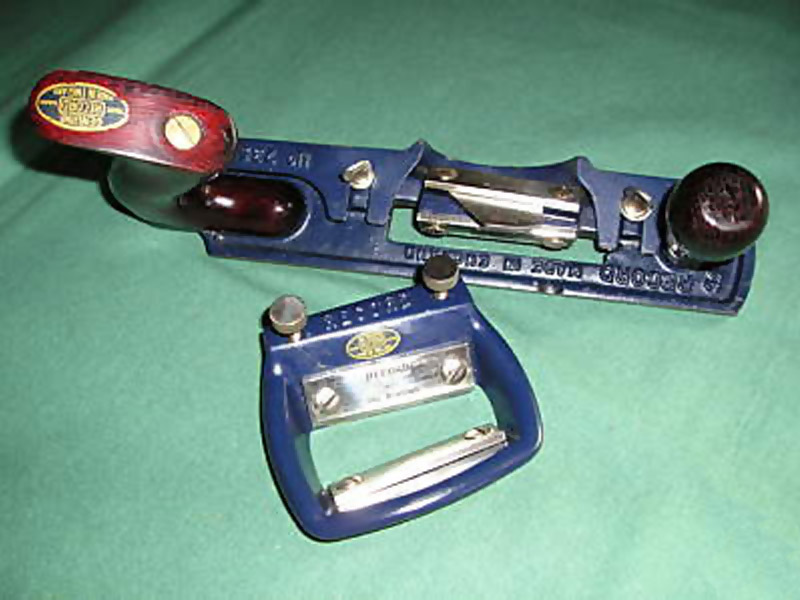

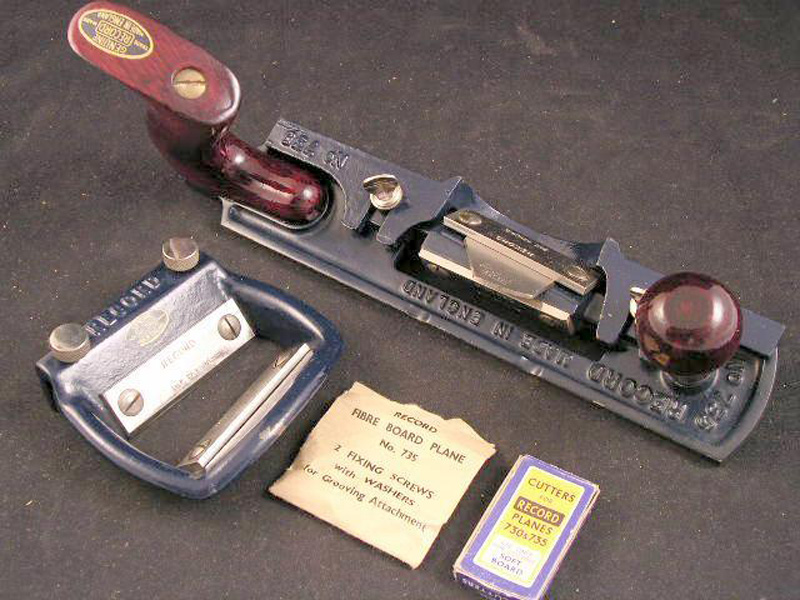

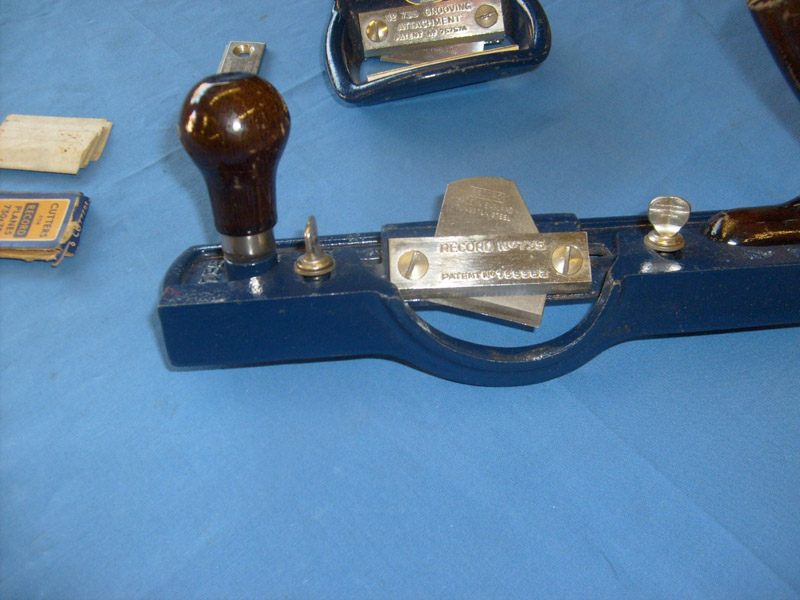

Like the 730, two positions for the cutter were available - a vertical position for slitting and cutting, and a 45 degree angled position for bevelling. On soft insulating board it is capable of bevelling up to 3/8 of an inch deep at 45 degrees, or grooving up to 3/8 of an inch deep using the grooving attachment. It can also be used for slitting up to 1/2 inch thickness. The grooving attachment was provided to allow vee grooving of softboard, for decorative purposes.

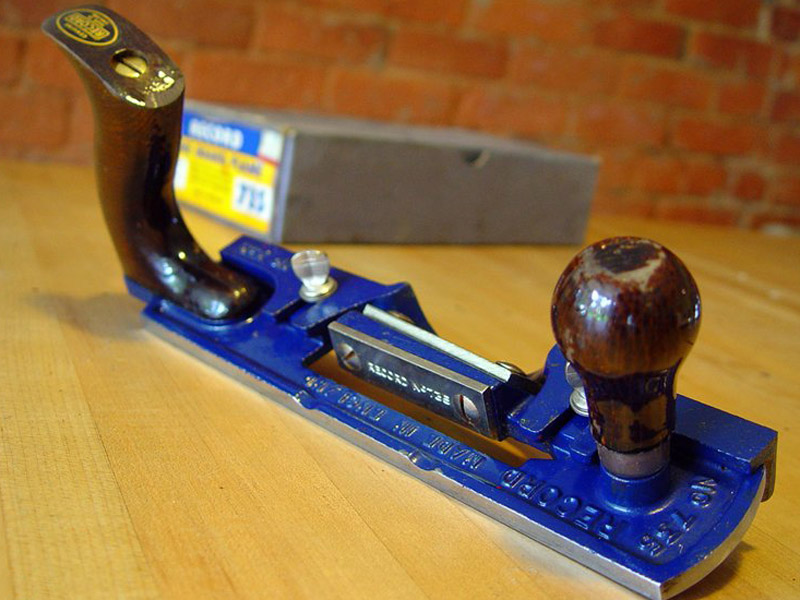

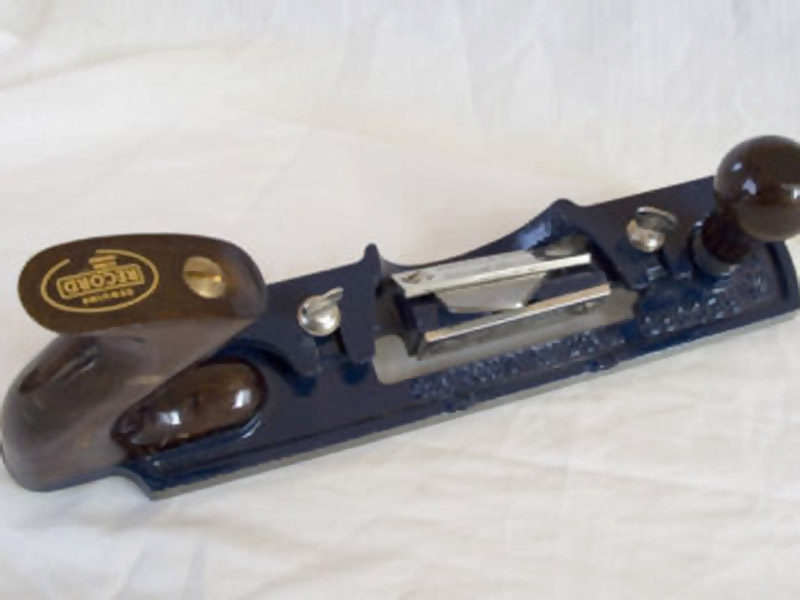

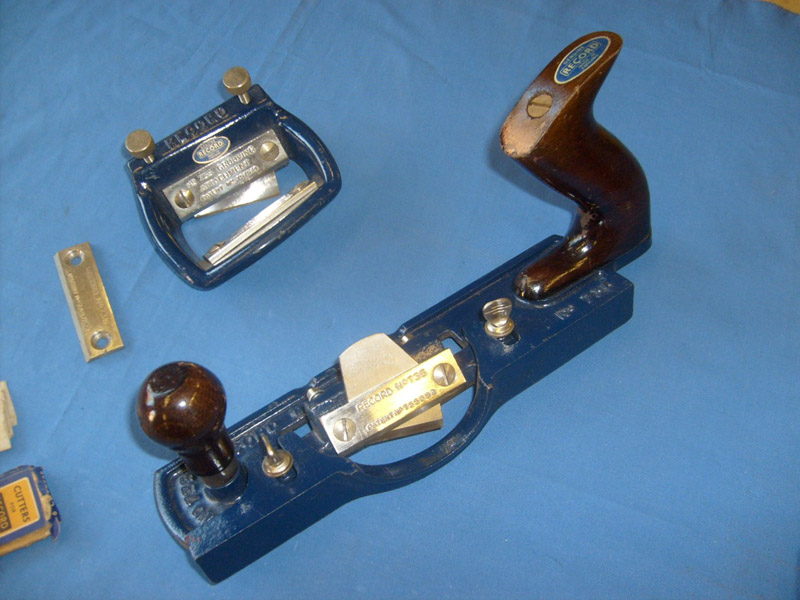

A front knob was also fitted for extra stability when working the denser hardboard.
First introduced in Pocket Catalogue No. 16 in 1955.
|Manufactured:||From 1955 to 1980|
|Cutter Width:||1-1/4 inches|
|Construction:||Cast iron body, stained beech handle & knob. Razor blade type cutter|
|Features:||Two cutter positions|
|Uses:||Cutting and bevelling fibreboard|
|Average Dealer Price:||$20 to $50|
|Average eBay Price:||$20 to $50|
|Prices Updated:||December 2008|
