Record No. 05½-SS Jack Plane


Print Friendly, PDF & Email

Record No 05 1/2 SS Jack Plane
Record No. 05½ SS Jack Plane
as illustrated in Catalogue No. 15, February 1938

NOTE: The 05½ SS Jack Plane was exactly the same as the 05½ except that it had the letters "SS" cast into the lever cap above the screw hole. The box label also had "SS" after the model number.

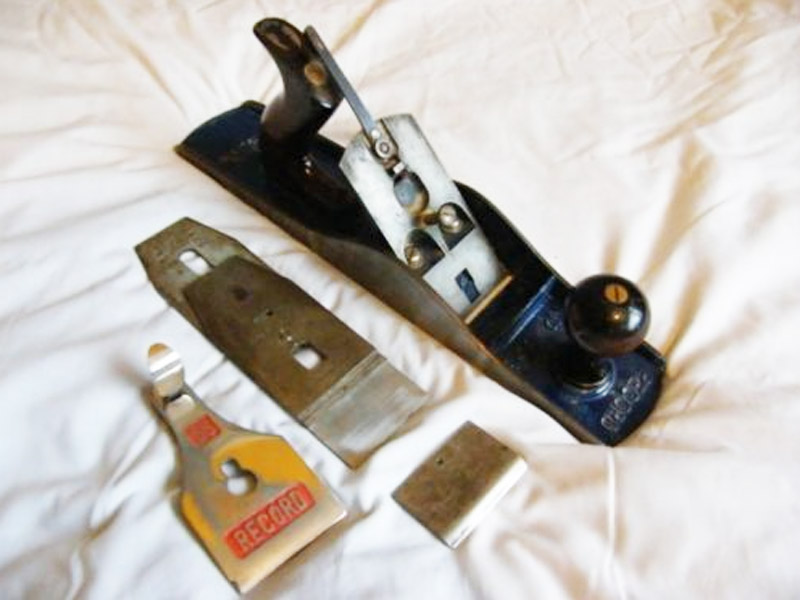

This plane features end and side adjustment of the cutter. Handles and knobs are of selected rosewood (post-war models are made of beech.)

Lever caps and small screws were nickel plated on early models. All SS (Stay set) models were discontinued in 1965.

First introduced in Catalogue No. 10, published in January 1931.


Specifications:

Manufactured: From 1931 to 1965
Length: 15 inches
Weight: 6 pounds
Cutter Width: 2-1/4 inches

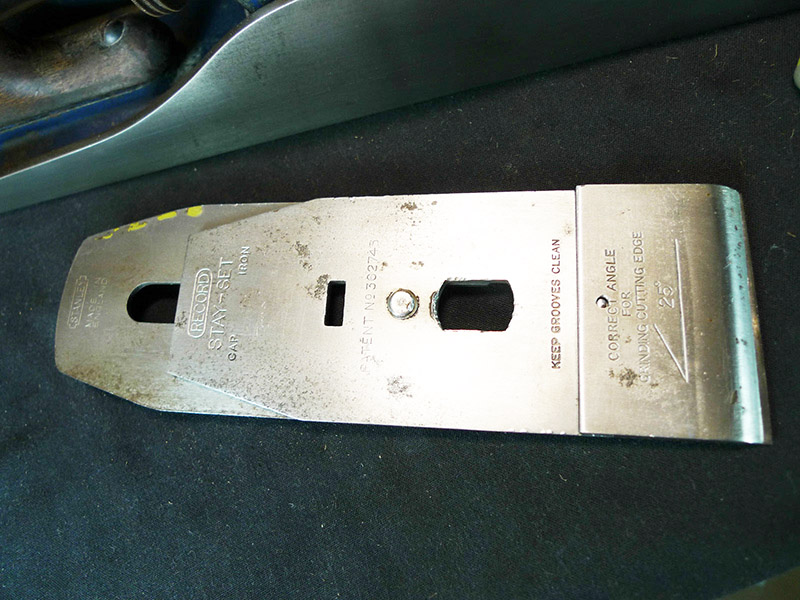

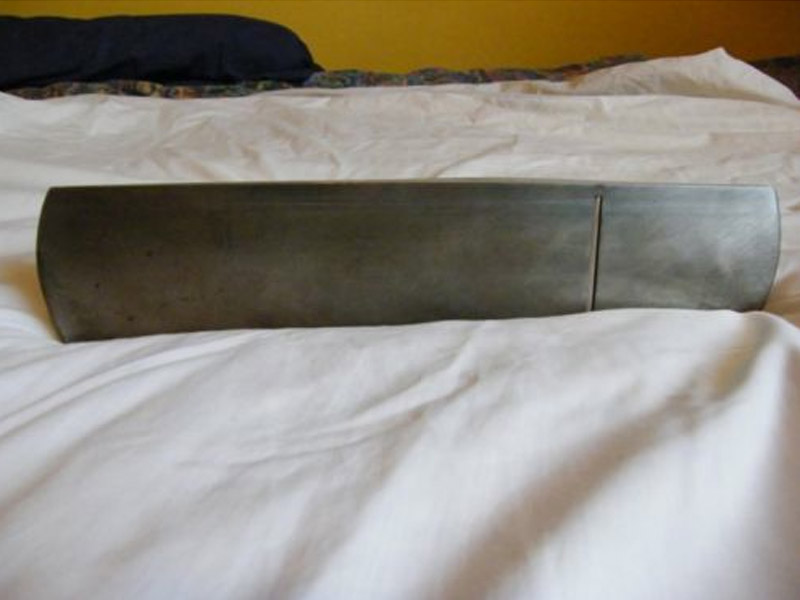

Construction: Cast iron body, rosewood or stained beech handle & knob. Tungsten steel stay set cutter with brass adjuster
Finish: Blue Enamel
Features: Stay set cutting iron. Extra wide
Uses: General purpose bench plane
Average Dealer Price: $60 to $120
Average eBay Price: $60 to $120

Prices Updated: December 2008
