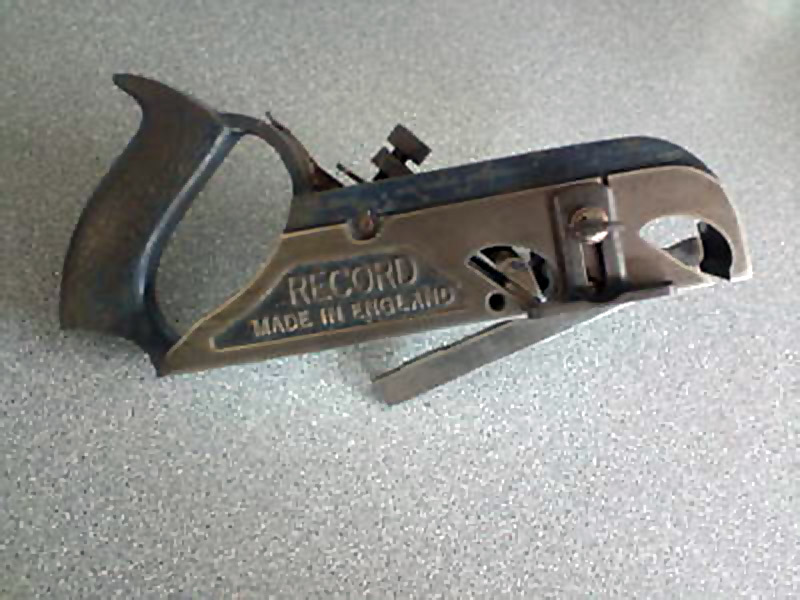

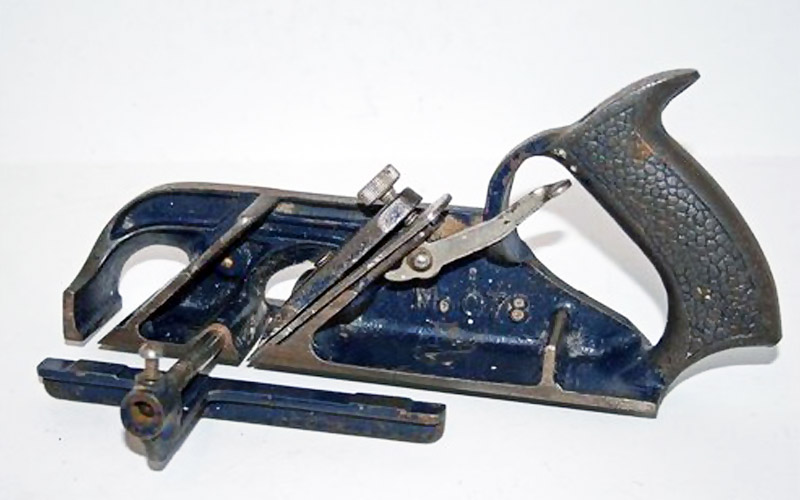

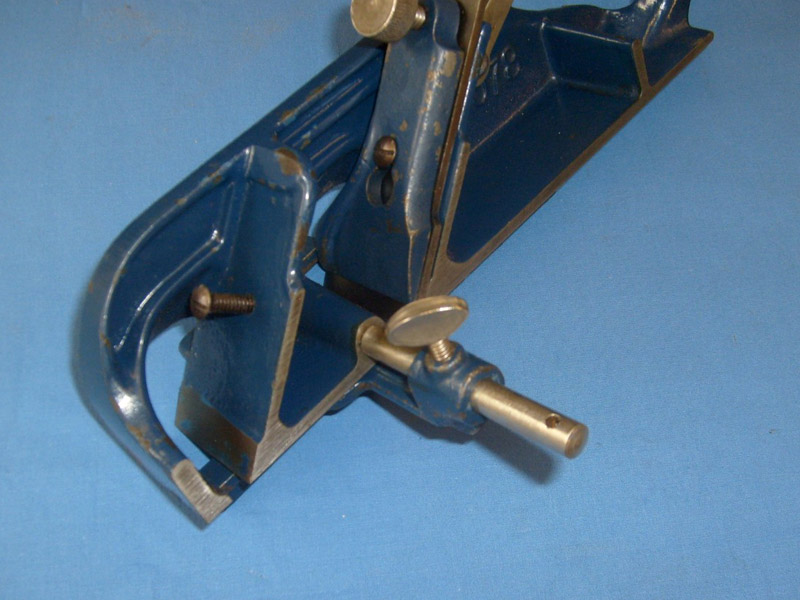

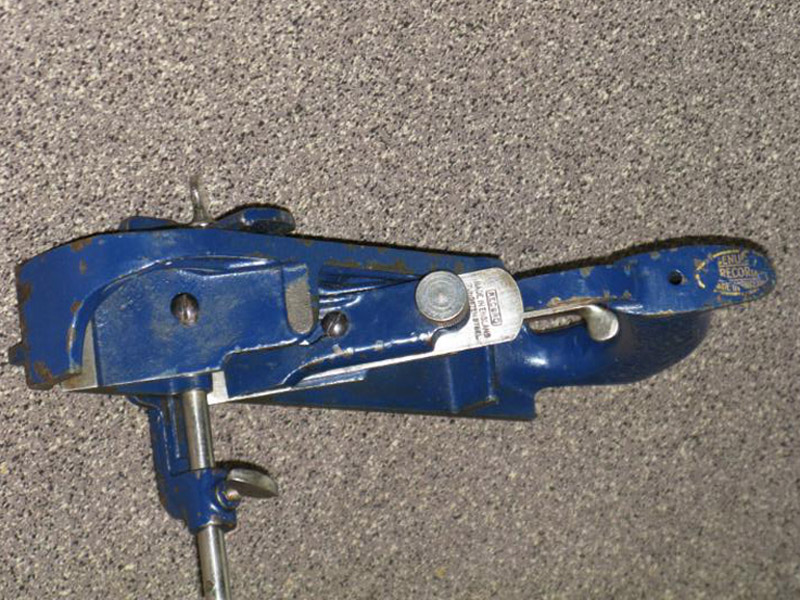

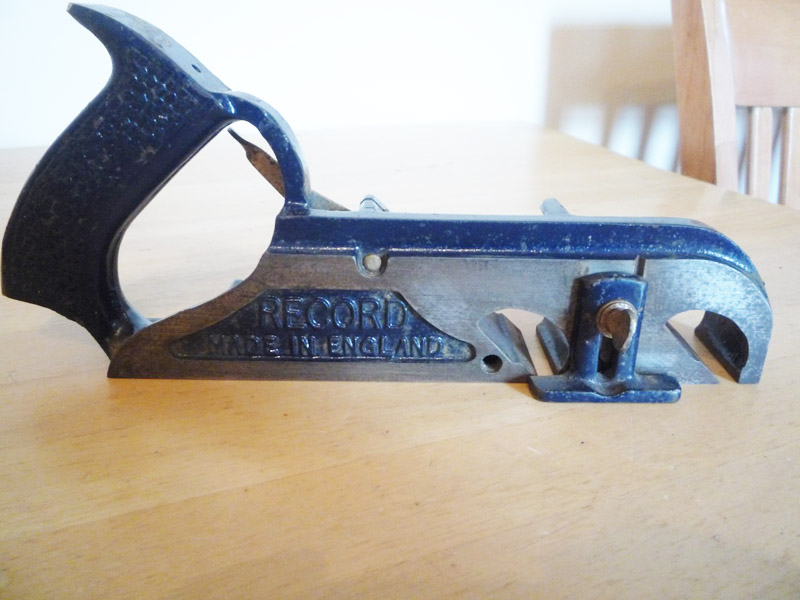

Record No. 078 Duplex Rabbet & Filletster Plane

Record No. 078 Duplex Rabbet & Filletster Plane
as illustrated in Catalogue No. 15, February 1938

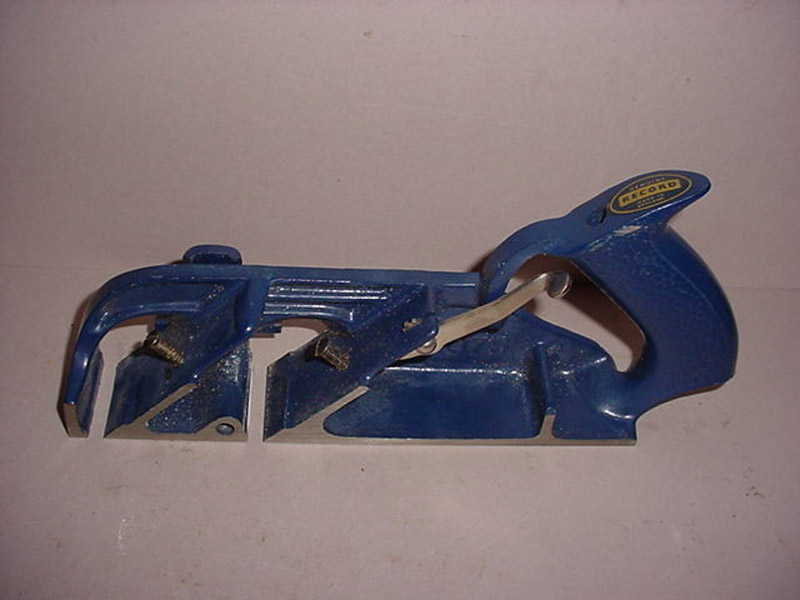

The No. 078 plane has two positions for the cutter, one for ordinary work, and the other for bull-nose work.

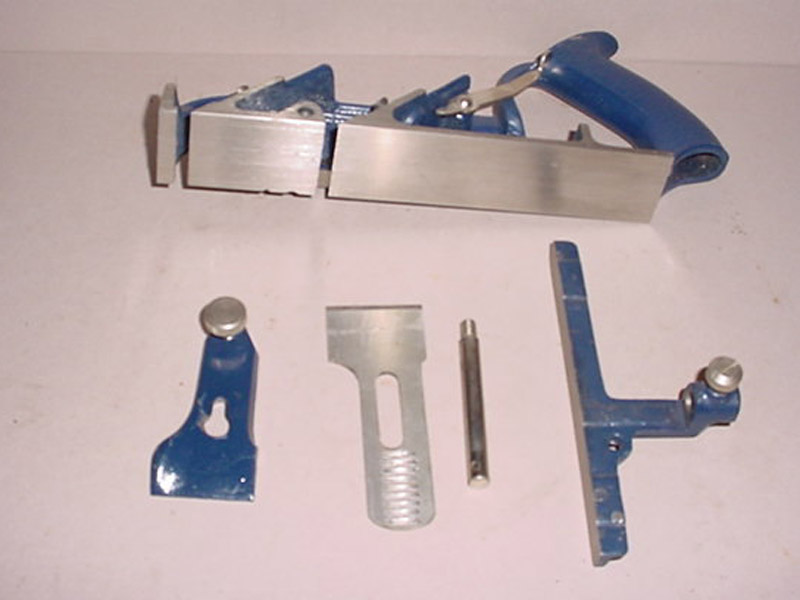

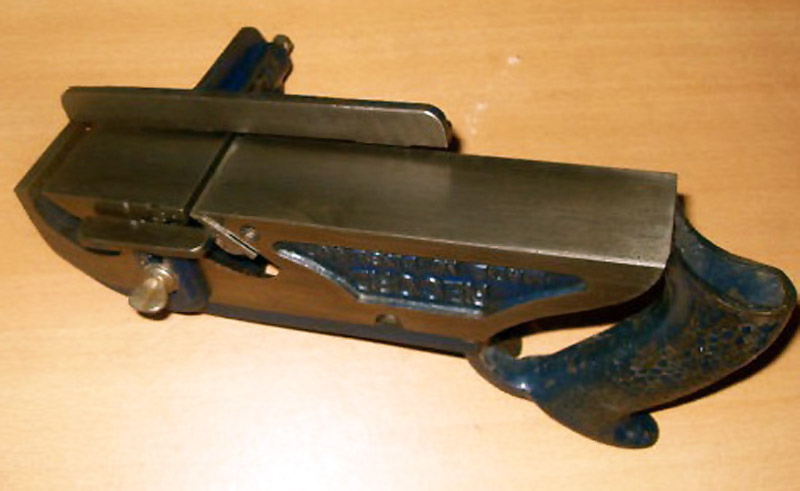

It is fitted with a hardened steel spur, an adjustable depth gauge which is removable, and an adjustable fence which can be used on either side of the plane.
This plane is adaptable for many other purposes besides rabbeting when the fence and arm are removed.
The cutter, when used in the rear position, is adjusted endwise by a lever.
The base and sides are ground and polished, and the fittings nickel-plated.
First introduced in Catalogue No. 11, published in September 1932.
Specifications:
| Manufactured: | From 1932 to 1980 |
| Length: | 8-1/2 inches |
| Weight: | 3 pounds |
| Cutter Width: | 1-1/2 inches |
| Construction: | Cast iron body. Tungsten steel cutter |
| Finish: | Blue Enamel |
| Features: | Two cutter positions. Adjustable fence & depth stop |
| Uses: | General purpose rabbet & filletster plane |
| Average Dealer Price: | $22 to $60 |
| Average eBay Price: | $20 to $45 |

| Prices Updated: | December 2008 |
