Record No. 2506S Side Rabbet Plane

Record No 2506S Side Rabbet Plane
Record No. 2506S Side Rabbet Plane
as illustrated in Catalogue No. 15, February 1938

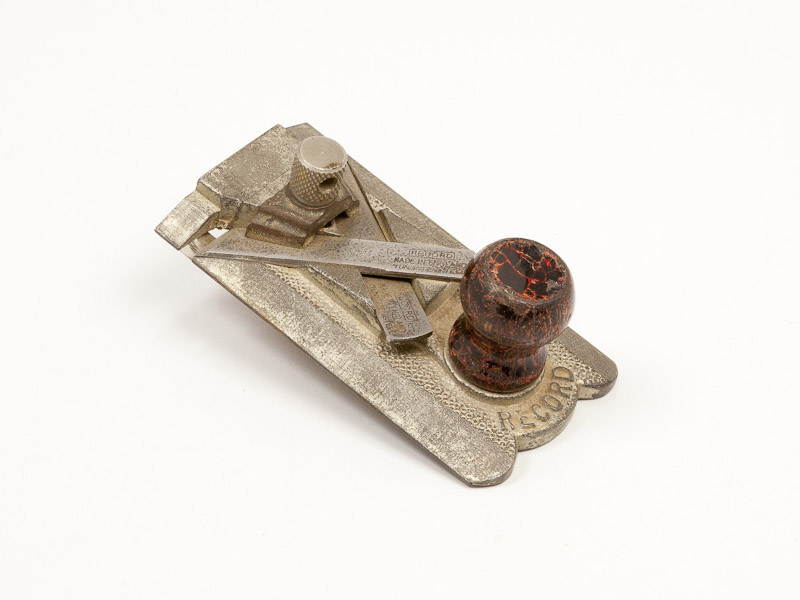

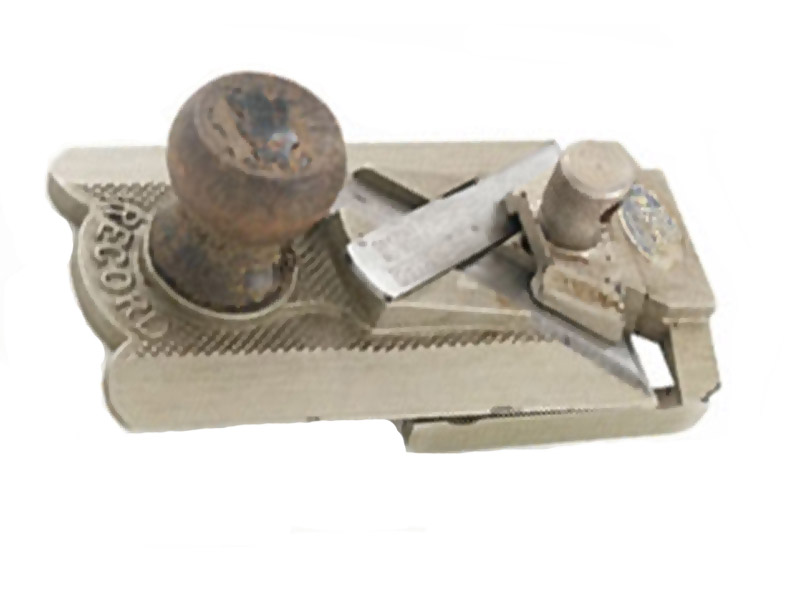

Same as the No. 2506, but with an adjustable and reversible depth stop fitted to the base. This plane was used for side rabbeting and cleaning grooves in mouldings etc. and the nose can be removed for working close up into corners. The No. 2506S was based on an Edward Preston plane of the same product number when Record acquired the manufacturing rights from John Rabone & Sons.

First introduced in Catalogue No. 14, published in November 1935.


Specifications:

Manufactured: From 1935 to 1977
Length: 4 inches
Weight: 5/8 pound
Cutter Width: 1/2 inch

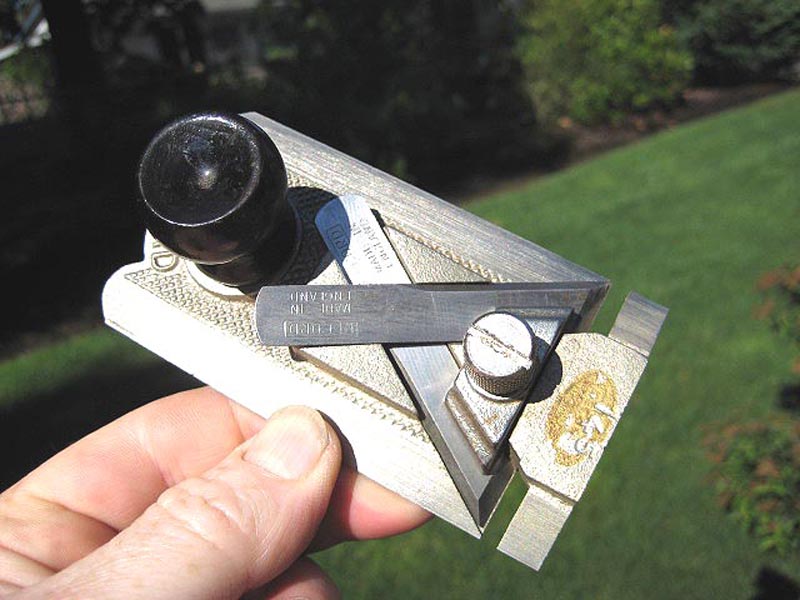

Construction: Cast iron body, rosewood or stained beech knob. Tungsten steel cutters
Finish: Nickel or Rustless Plated

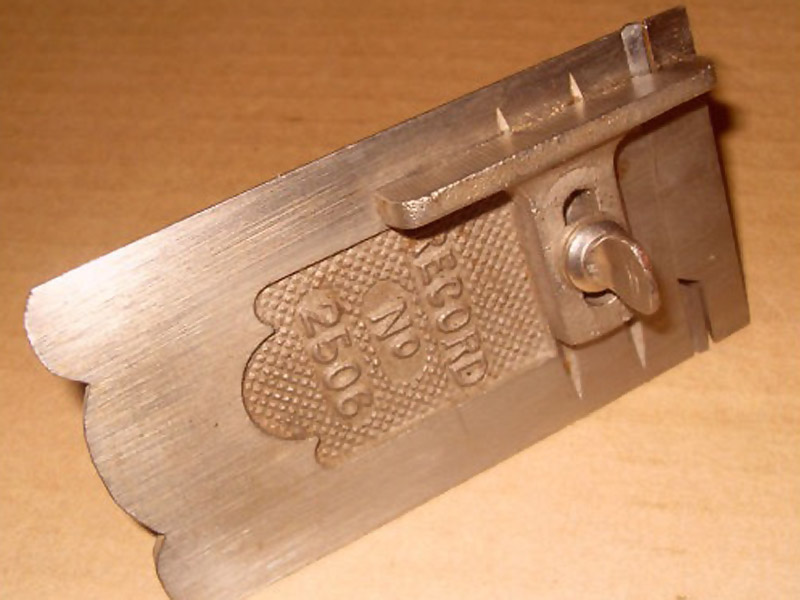

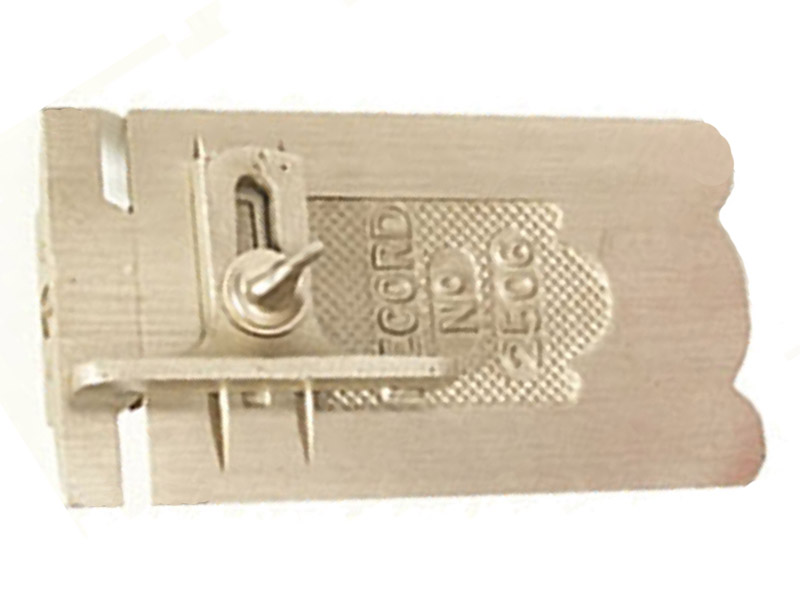

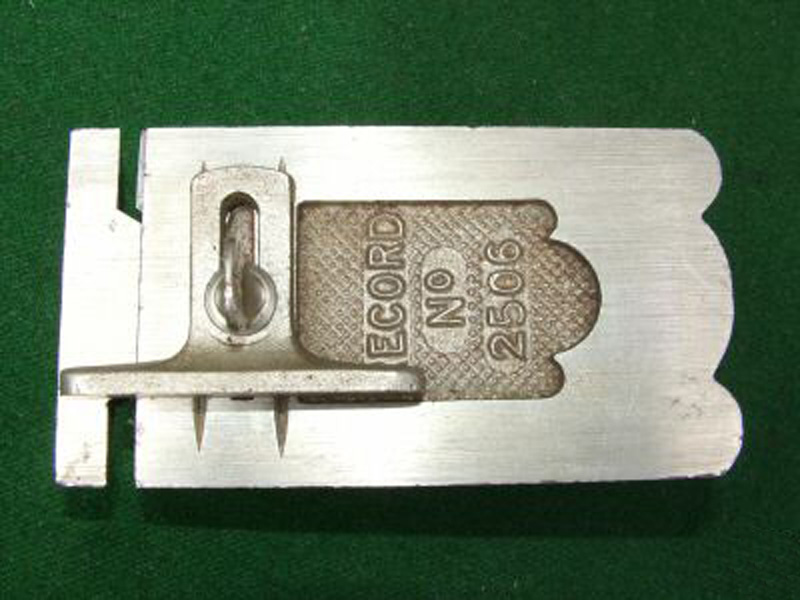

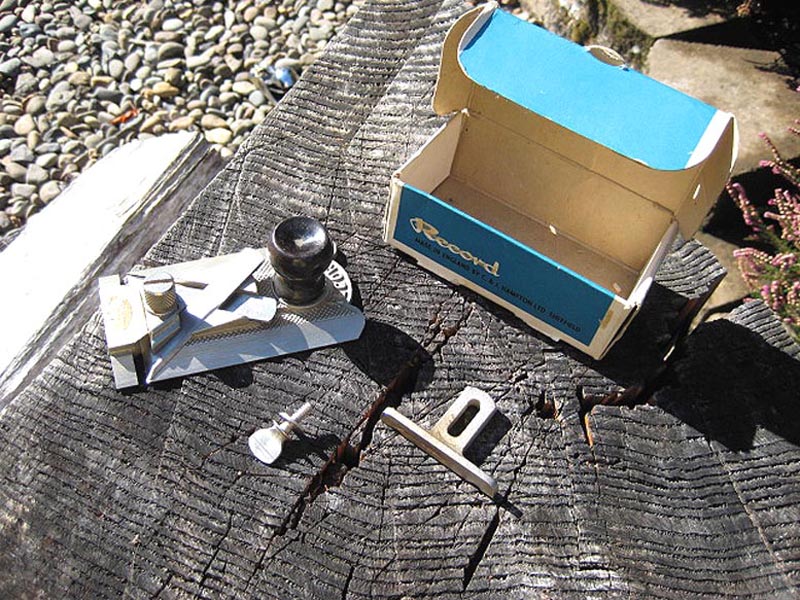

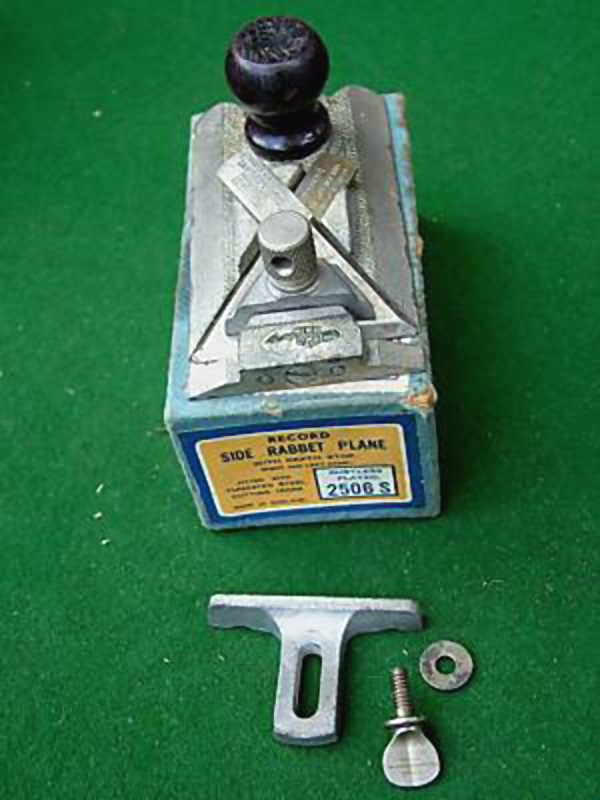

Features: Depth stop. Removable nose piece. Two cutters for either direction
Uses: For cleaning up rebates or grooves
Average Dealer Price: $50 to $120
Average eBay Price: $50 to $100

Prices Updated: December 2008


Record Planes on eBay right now…


Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
