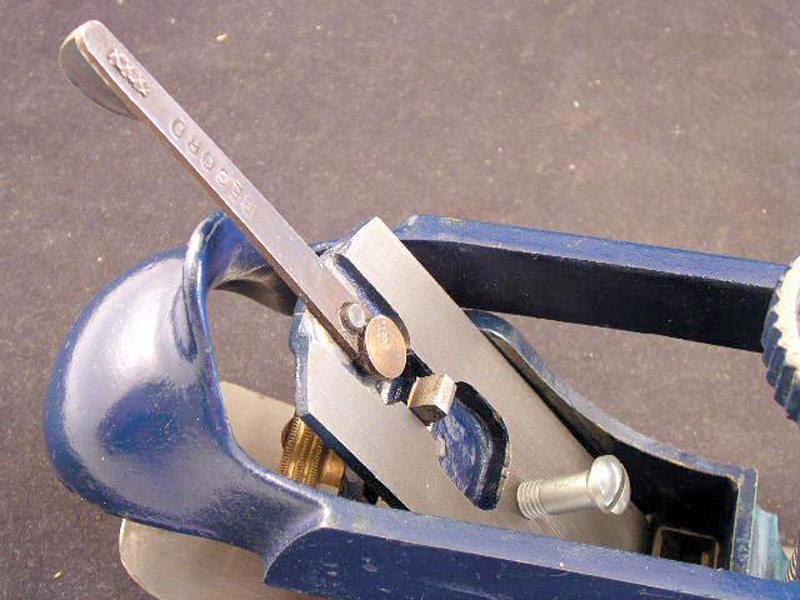

Record No. 020 Circular Plane

Record No 020 Circular Plane
Record No. 020 Circular Plane
as illustrated in Catalogue No. 15, February 1938

The No. 020 circular plane was fitted with a flexible spring steel face (sole) for planing concave or convex surfaces. It featured end and side adjustment of cutter.

The steel face of the No. 020 plane was dovetailed to the body at the centre and anchored at each end to the body. It was also screw adjusted from the centre and the frame provided handles at both ends.

Also referred to as the Record 020 Compass Plane.

First introduced in Catalogue No. 11, published in September 1932.


Specifications:

Manufactured: From 1932 to 2004
Length: 10 inches
Weight: 4 pounds
Cutter Width: 1-3/4 inches
Construction: Cast iron body. Steel sole. Tungsten steel cutter with brass adjuster
Finish: Blue Enamel
Features: Flexible steel sole for concave & convex surfaces
Uses: Designed for circular work
Average Dealer Price: $75 to $150
Average eBay Price: $70 to $140

Prices Updated: December 2008


Record Planes on eBay right now…


Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
