Record No. 071 Router Plane


Print Friendly, PDF & Email

Record No 071 Router Plane
Record No. 071 Router Plane
as illustrated in Catalogue No. 15, February 1938

Open throat, with improved adjustable fence.

These planes are for cutting grooves, etc., parallel to the surface of the work. The improved fence enables grooves to be cut parallel to the edge of the work whether straight or circular.

The fence is adjustable and can be used either right or left hand.

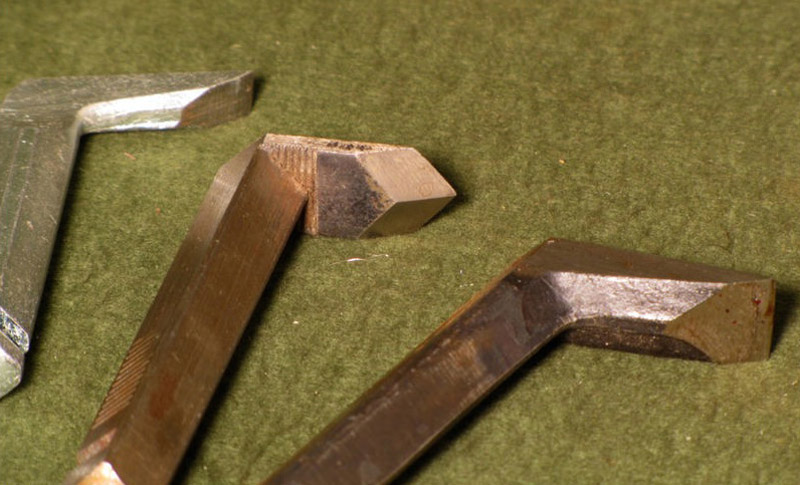

The cutters are adjustable by screw feed, and can be secured on the front of the cutter post for general work or on the back for bull nose work.

For narrow surfaces there is an adjustable shoe and gauge for closing the throat and also for regulating the depth of cut.

An extra wooden bottom can be attached to the plane for routering wide grooves.

First introduced in Catalogue No. 11, published in September 1932.


Specifications:

Manufactured: From 1932 to 1980
Length: 7-1/2 inches
Weight: 2-1/4 pounds
Cutter Width: 1/4, 1/2 & 1/2 inch smoothing cutter
Construction: Cast iron body, stained beech knobs. Tungsten steel cutters
Finish: Blue Enamel
Features: Open throat. 3 cutters. Adjustable fence & shoe
Uses: Cutting grooves and recesses
Average Dealer Price: $50 to $90
Average eBay Price: $35 to $65

Prices Updated: December 2008
