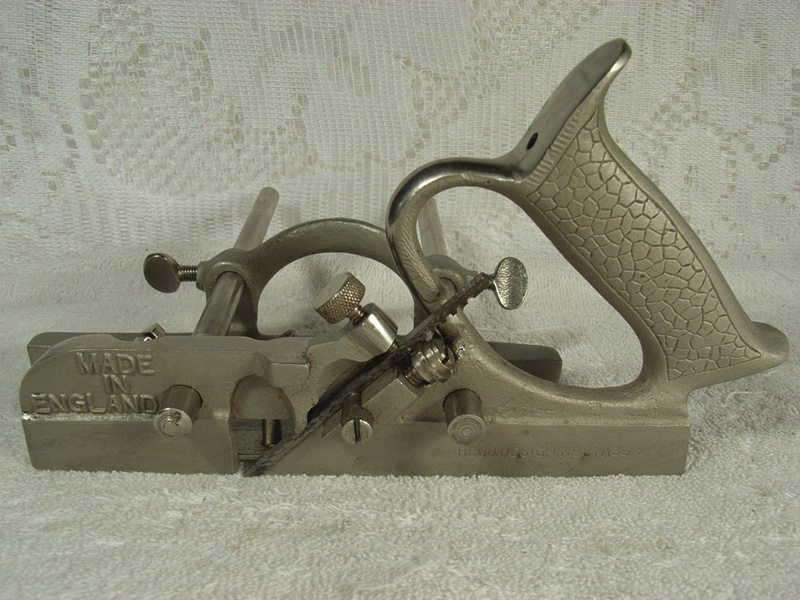

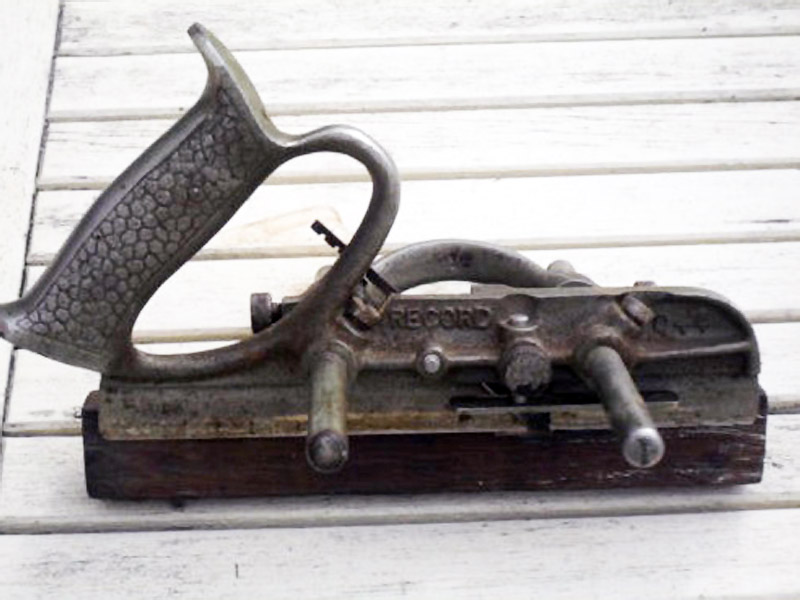

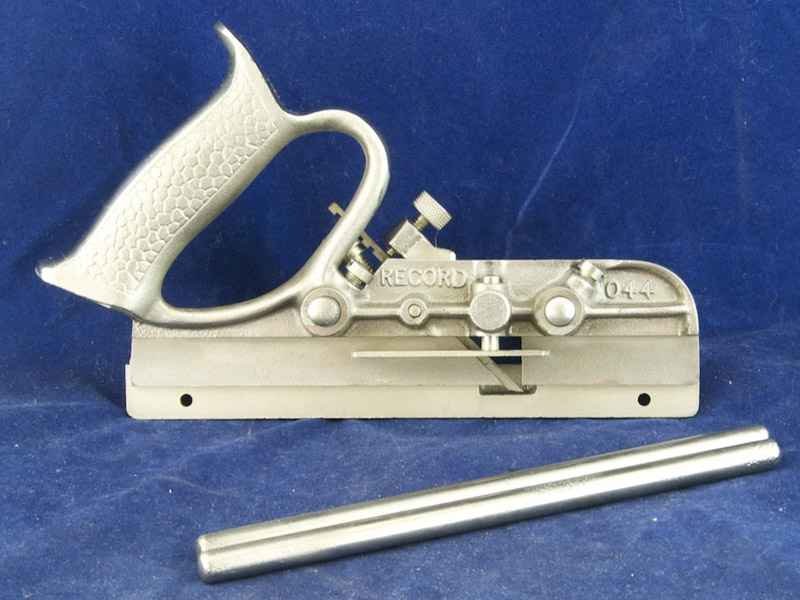

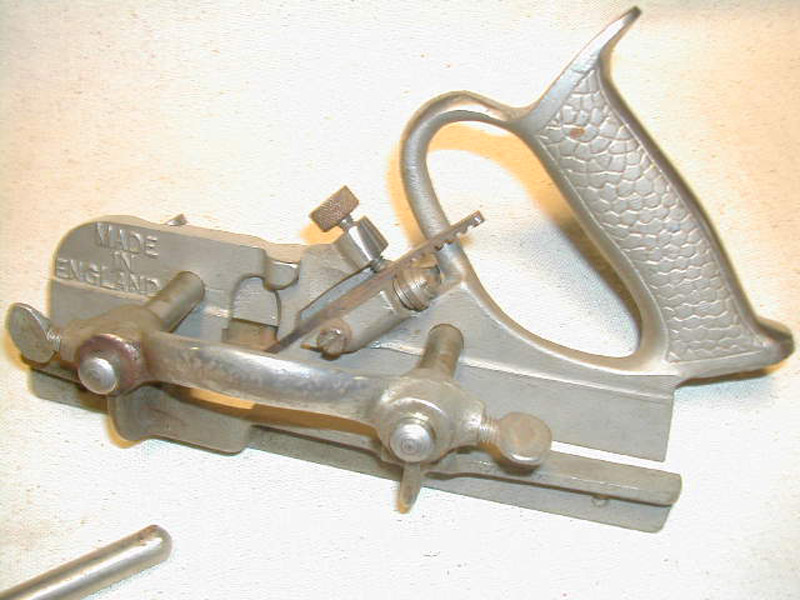

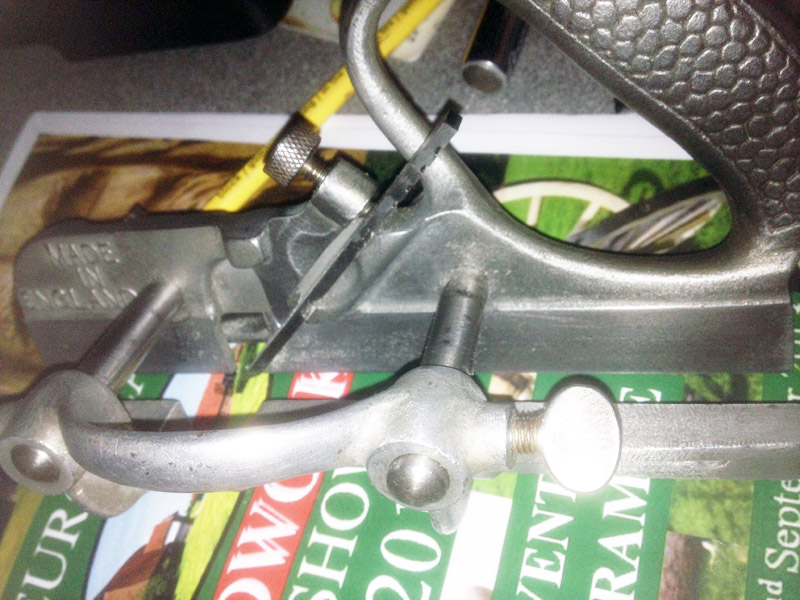

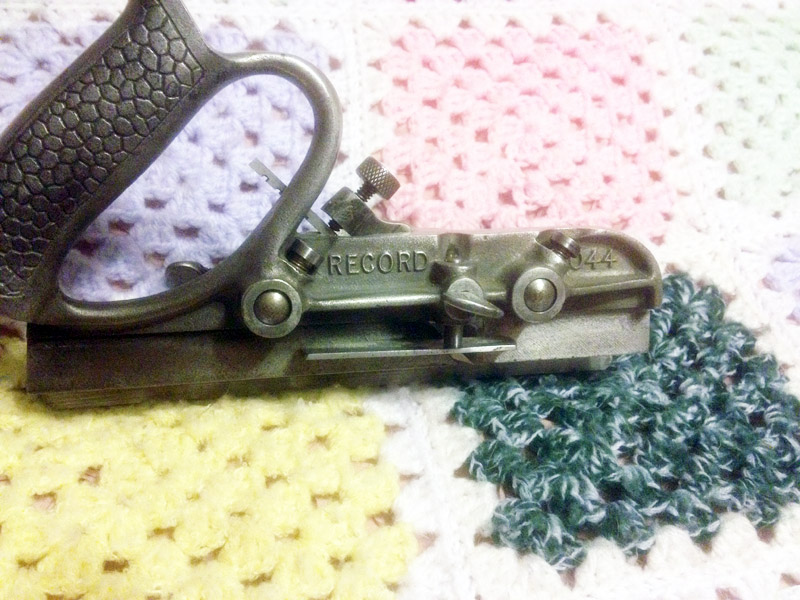

Record No. 044 Plough Plane
as illustrated in Catalogue No. 15, February 1938

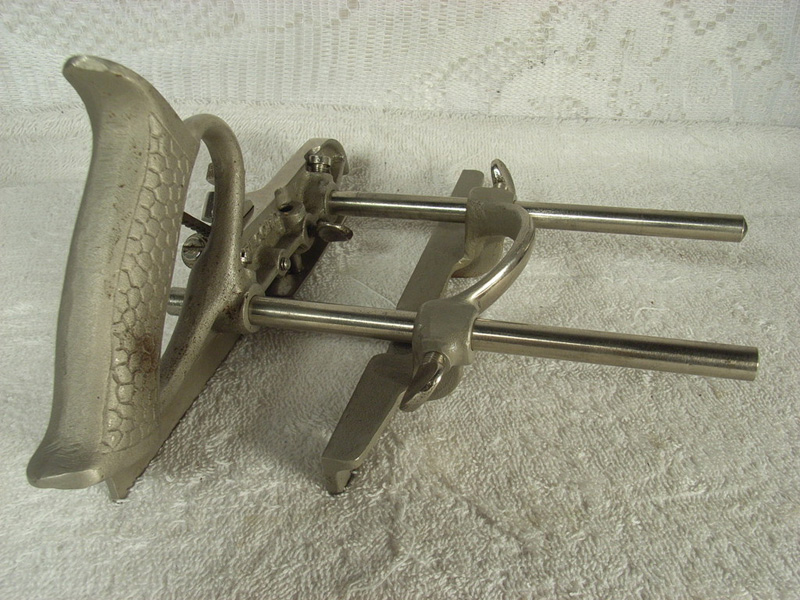

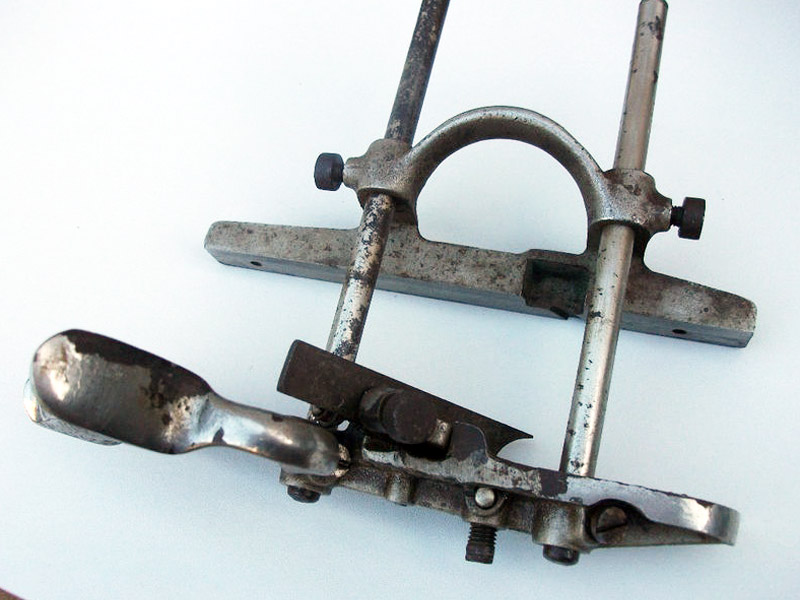

This plane is fitted with adjustable depth gauge, double arm adjustable bridged fence and two pairs of fence arms (long and short), and will cut grooves 5/8″ deep up to 5″ from edge.

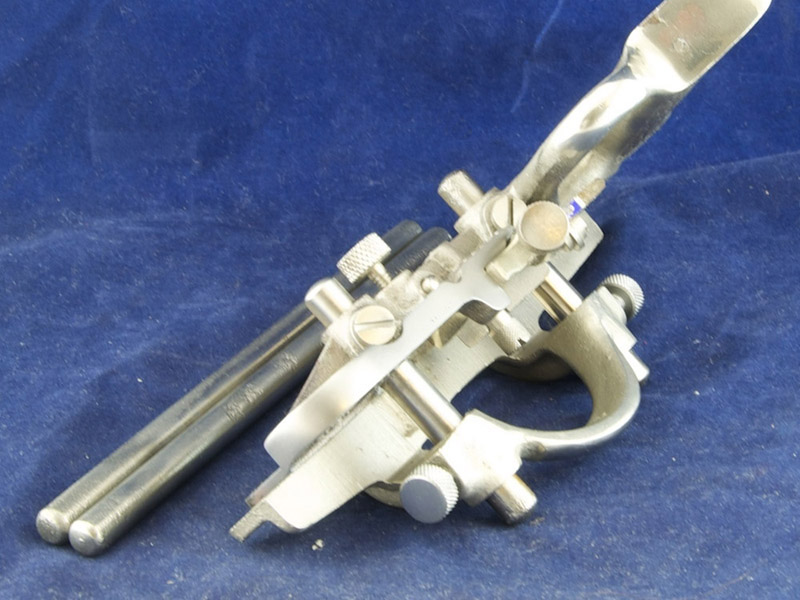

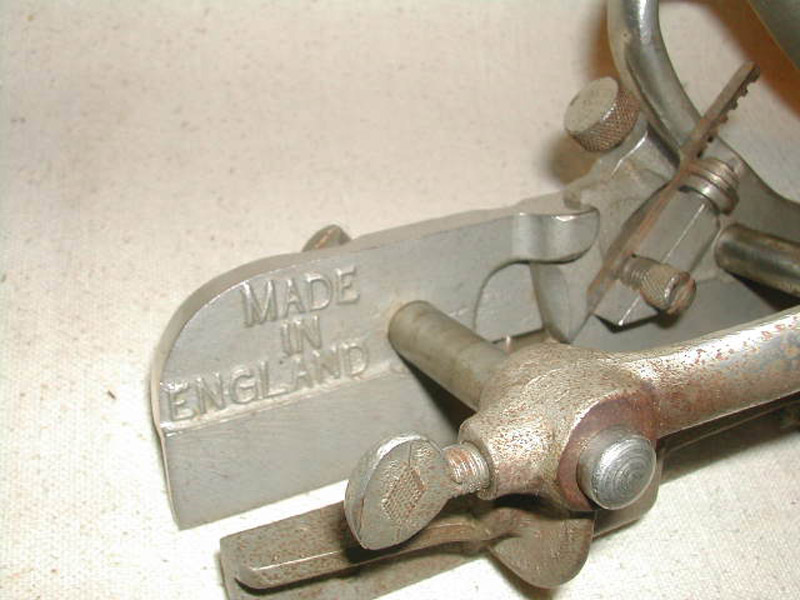

Screw adjustment is fitted to the cutter which enables it to be fed into the work with an accurate and easy control.

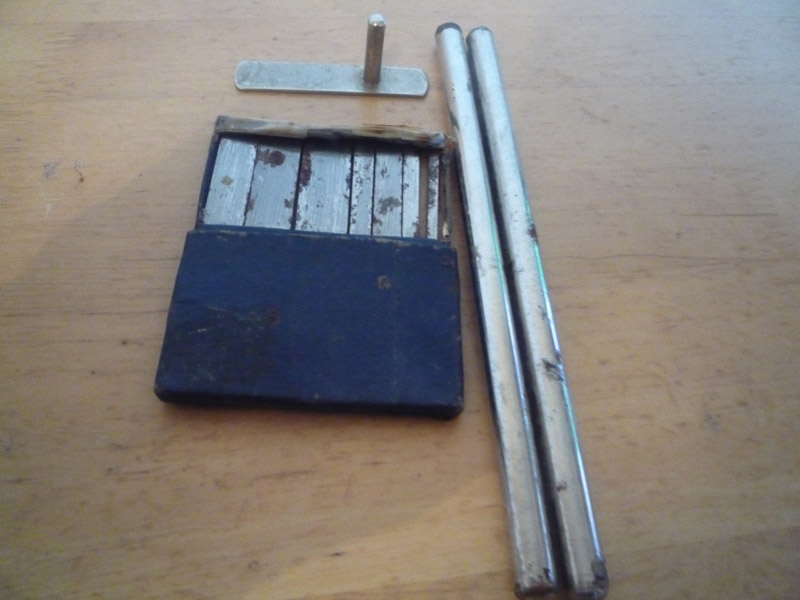

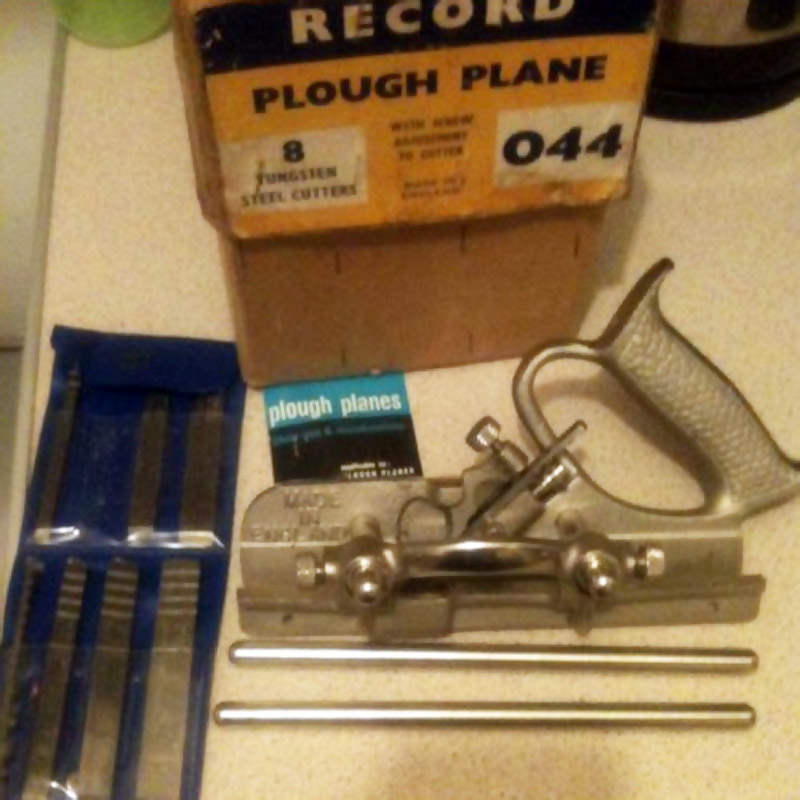

Eight plough cutters are supplied with each plane, as illustrated.
Additional cutters of millimetre width for grooving for plywood panels etc. were also available in 4mm, 6mm, 9mm & 12mm.
Registered design No. 811,133
First introduced in a small publicity catalogue issued between the January 1934 Price List and Catalogue No. 14 of November 1935.
Specifications:
| Manufactured: | From 1934 to 1970 |
| Length: | 8-1/2 inches |
| Weight: | 2-3/4 pounds |
| Cutter Width: | 8 cutters. 1/8, 3/16, 1/4, 5/16, 3/8, 7/16, 1/2 & 9/16 inches |
| Construction: | Cast iron body & fence. Tungsten steel cutters |
| Finish: | Nickel or Rustless Plated |
| Features: | Adjustable fence & depth stop. Different cutter sizes |
| Uses: | General plough work |
| Average Dealer Price: | $30 to $80 |
| Average eBay Price: | $30 to $80 |
| Prices Updated: | December 2008 |
Record Planes on eBay right now…
Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
