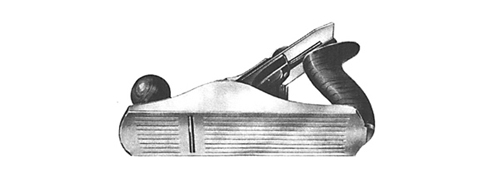

Record No. 02C SS Smooth Plane
as illustrated in Catalogue No. 15, February 1938
NOTE: The 02C SS Smooth Plane was exactly the same as the 02 except that it had a corrugated base and the letters “SS” cast into the lever cap above the screw hole. The box label also had “C” and “SS” after the model number. Because of the work needed to produce the corrugated base, the plane was sold at a higher price than the 02.
This plane features end and side adjustment of the cutter. Handles and knobs are of selected rosewood.
Lever caps and small screws are nickel plated. The Record No. 02C-SS Smooth Plane was discontinued in 1943 but remained in catalogues until 1952. All other SS (Stay set) models were discontinued in 1965.
First introduced in Catalogue No. 10, published in January 1931.
Specifications:
| Manufactured: | From 1933 to 1943 |
| Length: | 7-1/4 inches |
| Weight: | 2-3/8 pounds |
| Cutter Width: | 1-5/8 inches |
| Construction: | Cast iron body, rosewood handle & knob. Tungsten steel cutter with brass adjuster |
| Finish: | Blue Enamel |
| Features: | Corrugated base. Stay set cutting iron. Small compact size |
| Uses: | Small bench plane |
| Average Dealer Price: | $300 to $450 |
| Average eBay Price: | $300 to $420 |
| Prices Updated: | December 2008 |
Record Planes on eBay right now…
Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
