Record No 05 Jack Plane

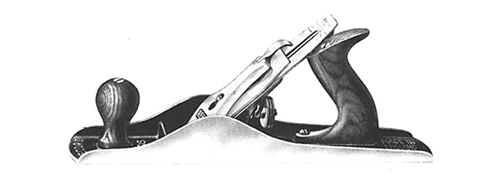

Record No. 05 Jack Plane
as illustrated in Catalogue No. 15, February 1938

This plane features end and side adjustment of the cutter. Handles and knobs are of selected rosewood (post-war models are made of beech and late 1990's models were made of impact resistant resin, or plastic.)

Lever caps and small screws were nickel plated on early models. A brass screw replaced the cam lever in 1995.

First introduced in Catalogue No. 10, published in January 1931.


Specifications:

Manufactured: From 1931 to 2004
Length: 14 inches
Weight: 4-3/4 pounds
Cutter Width: 2 inches
Construction: Cast iron body, rosewood, stained beech or plastic handle & knob. Tungsten steel cutter with brass adjuster
Finish: Blue Enamel
Features:
Uses: General purpose jack plane
Average Dealer Price: $30 to $75
Average eBay Price: $25 to $70

Prices Updated: December 2008
