Record No. 041 Improved Shoulder Rabbet Plane

Record No 041 Improved Shoulder Rabbet Plane
Record No. 041 Improved Shoulder Rabbet Plane
as illustrated in Catalogue No. 15, February 1938

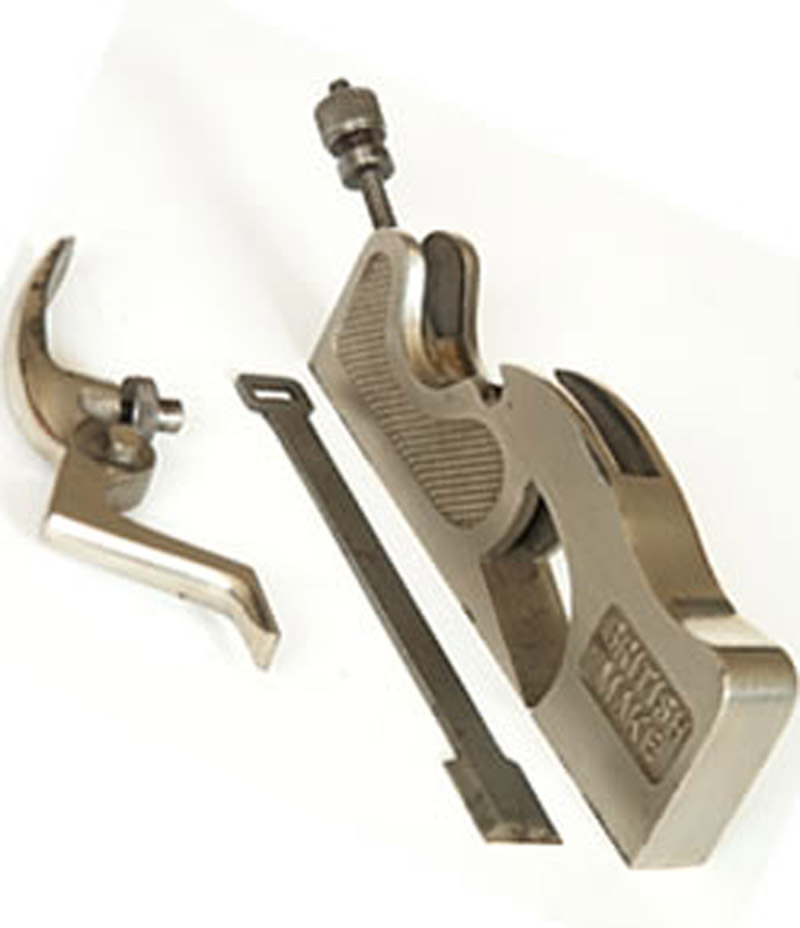

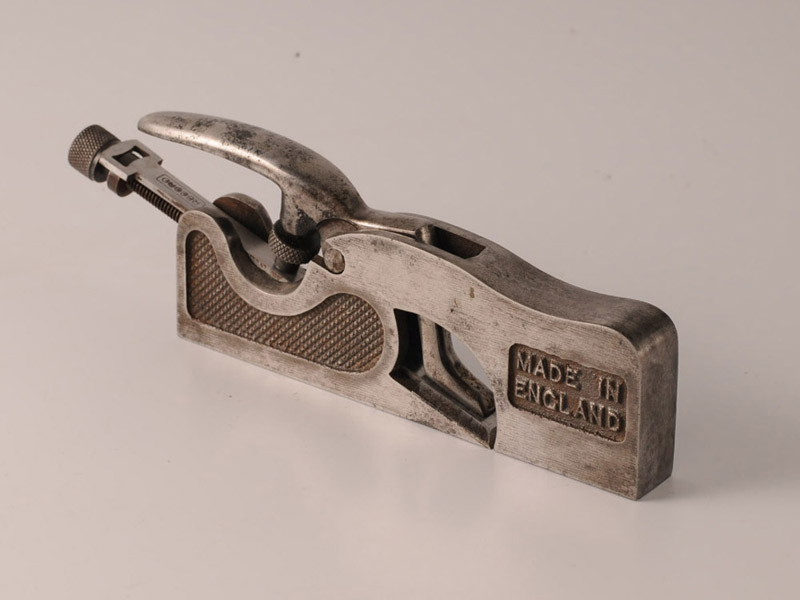

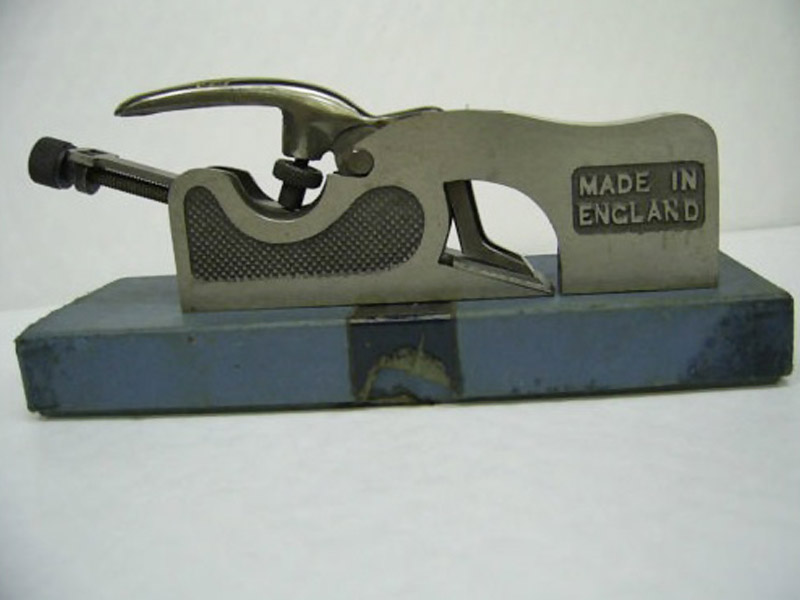

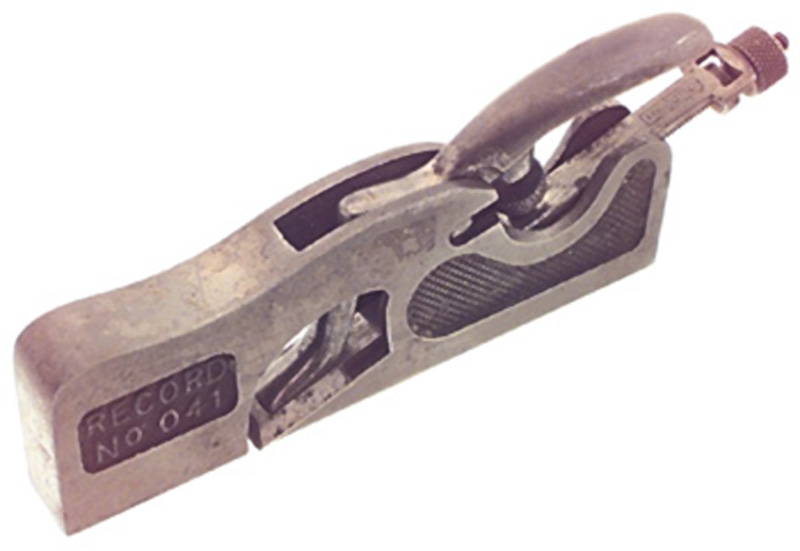

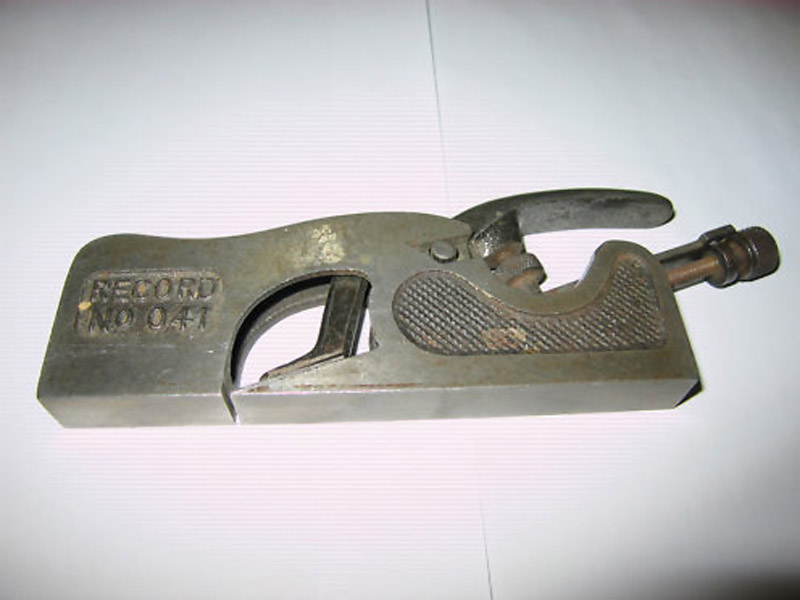

This plane was for very fine and accurate work. The base and sides are accurately machined and ground. It lies quite flat on either side, and can be used both right and left hand.

Unlike its bigger cousins, the 072, 073 & 074 Improved Shoulder Rabbet Planes, there was no screw adjustment to the mouth, however it did feature the screw adjustment on the cutter for regulating the depth of cut, and was fitted with a tungsten steel cutter.

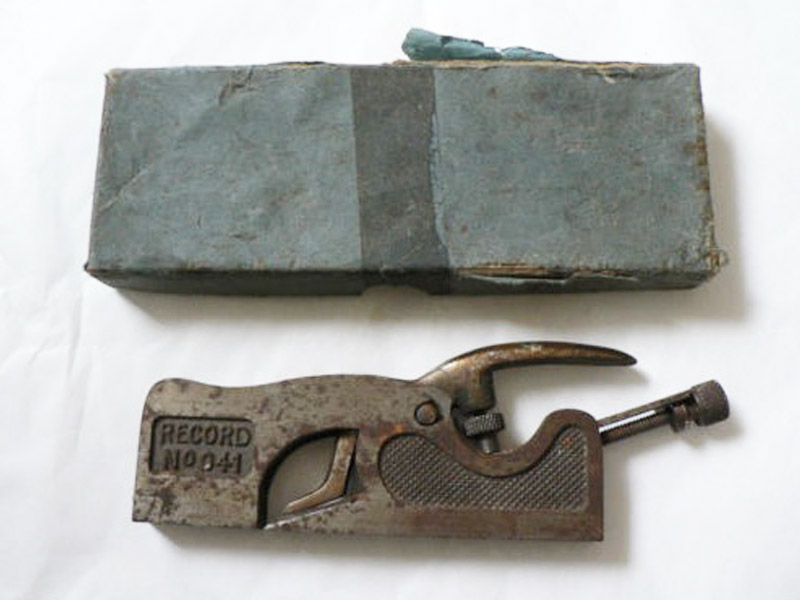

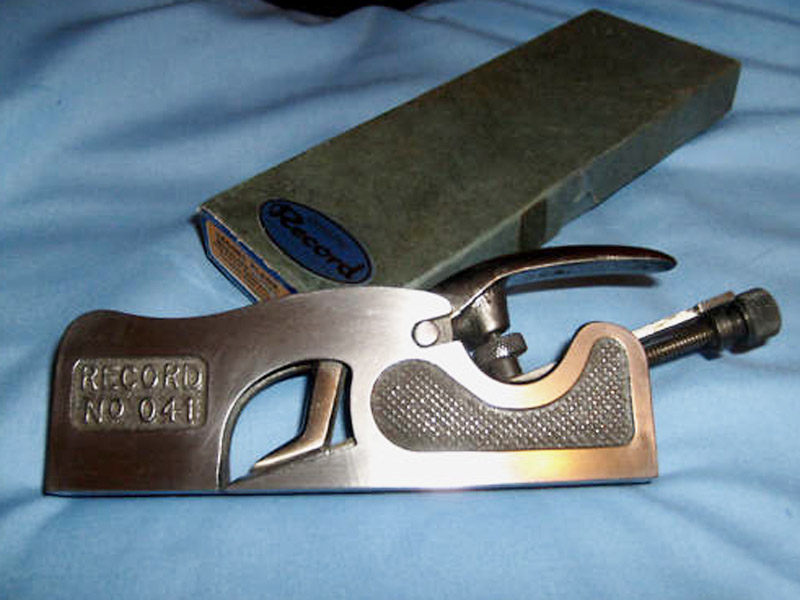

Packed in a varnished wood box with sliding lid.

Originally a pattern designed and manufactured by Edward Preston & Sons and then introduced into the Record plane lineup. See “Edward Preston & Sons planes which made it into the Record lineup” for more information.

First introduced in a small publicity catalogue issued between the January 1934 Price List and Catalogue No. 14 of November 1935.


Specifications:

Manufactured: From 1934 to 1967
Length: 5 inches
Weight: 1-1/4 pounds
Cutter Width: 5/8 inch
Construction: Cast iron body. Tungsten steel cutter
Finish: Nickel or Rustless Plated
Features: Adjustable cutter depth
Uses: For cutting rabbets (rebates)
Average Dealer Price: $90 to $250
Average eBay Price: $80 to $220

Prices Updated: December 2008


Record Planes on eBay right now…


Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
