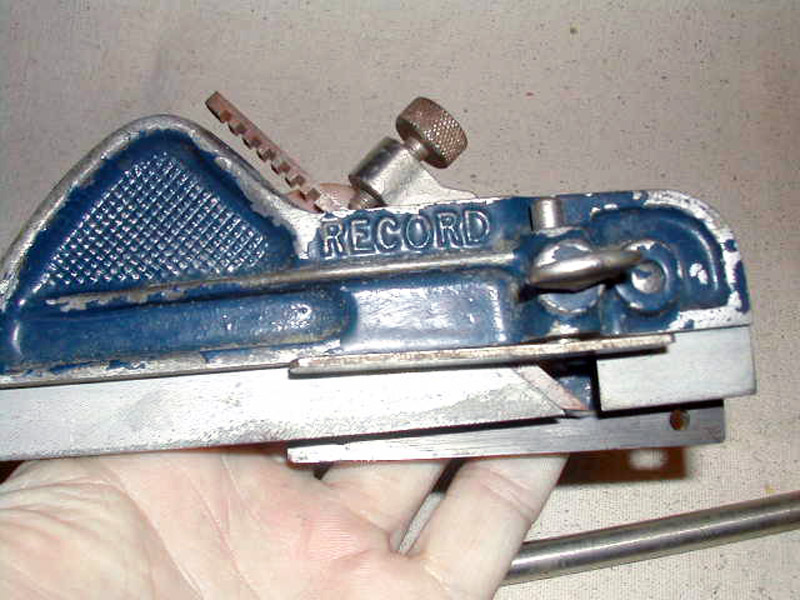

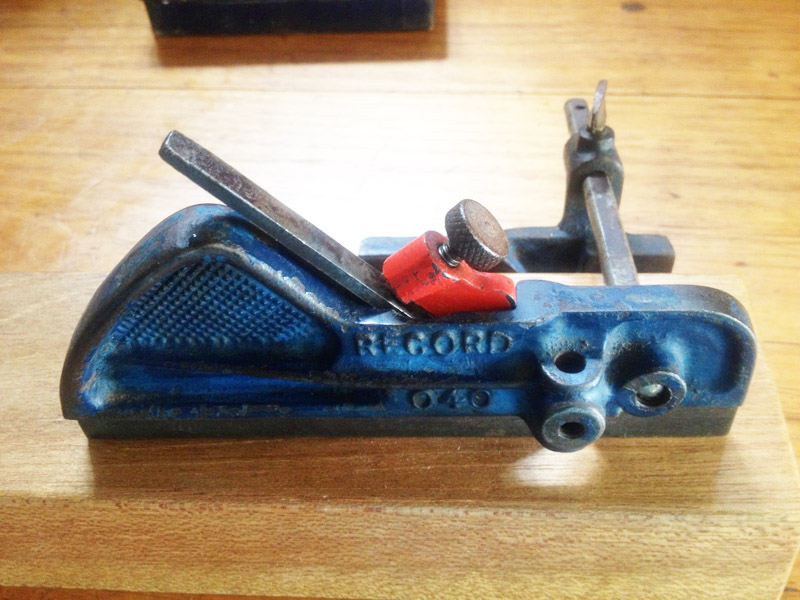

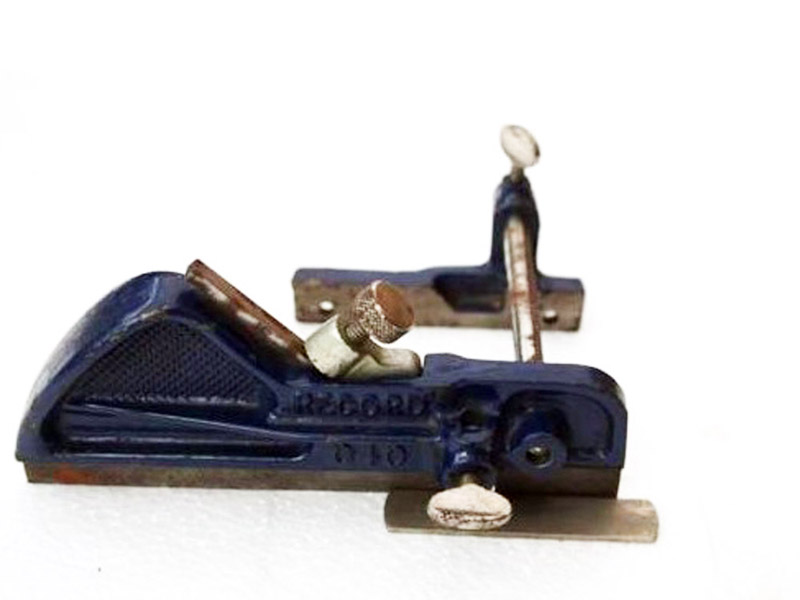

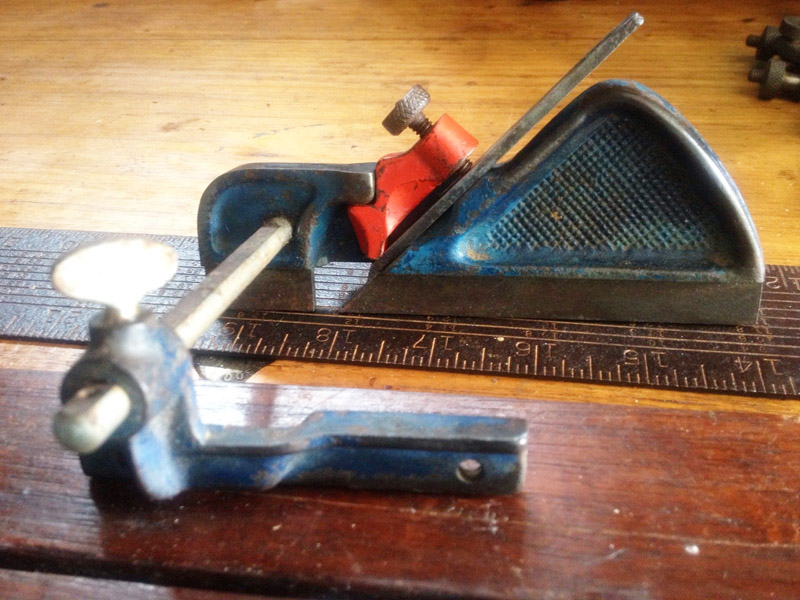

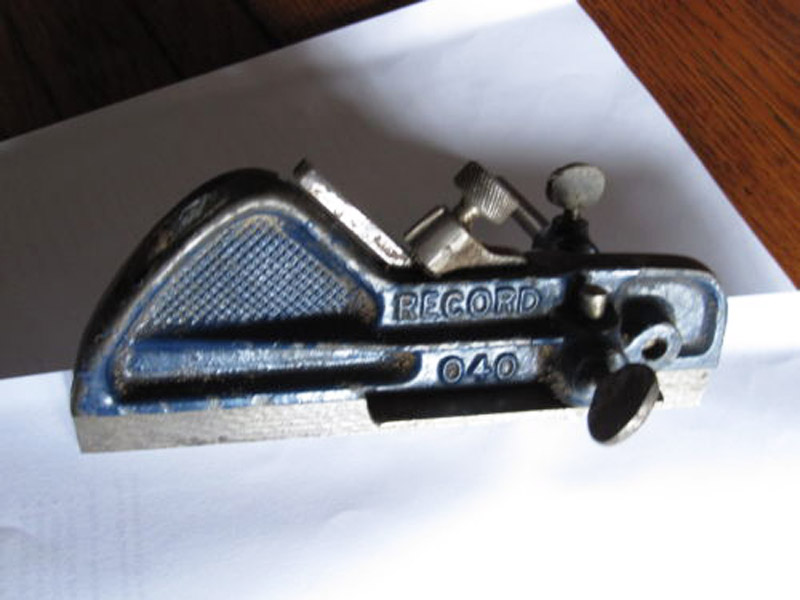

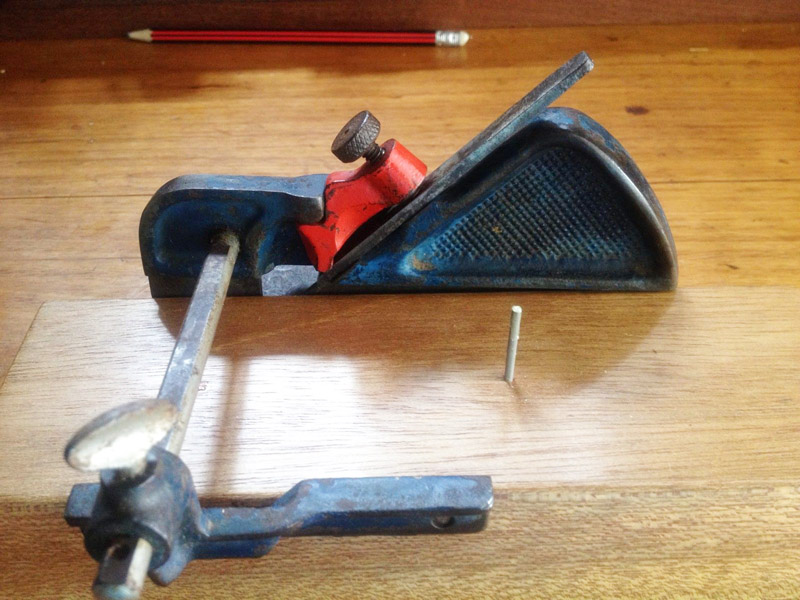

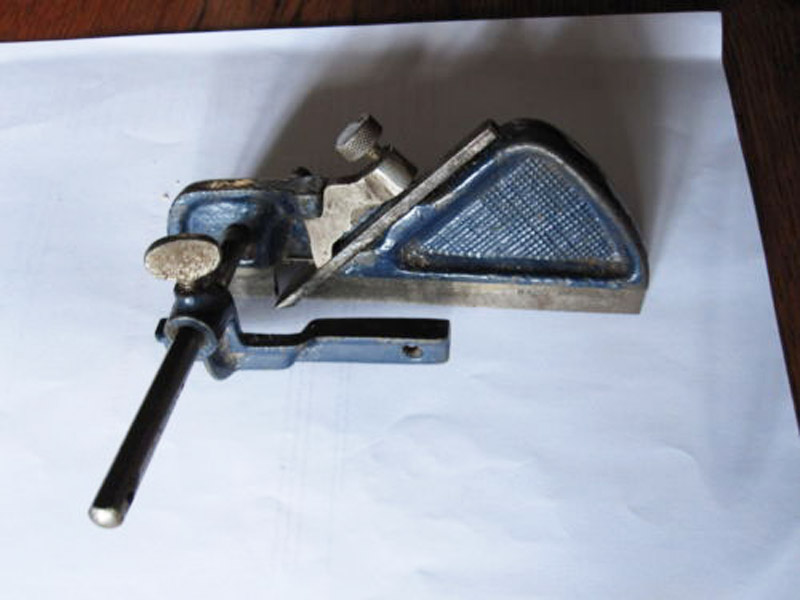

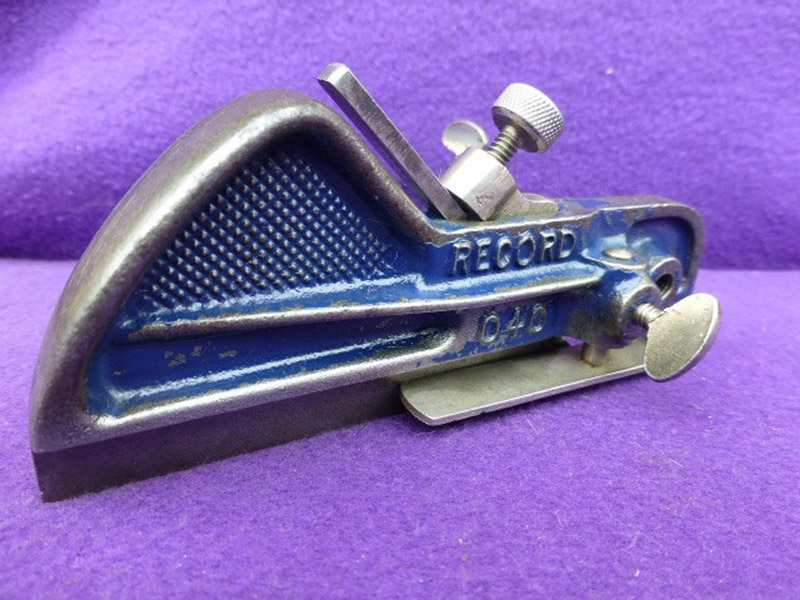

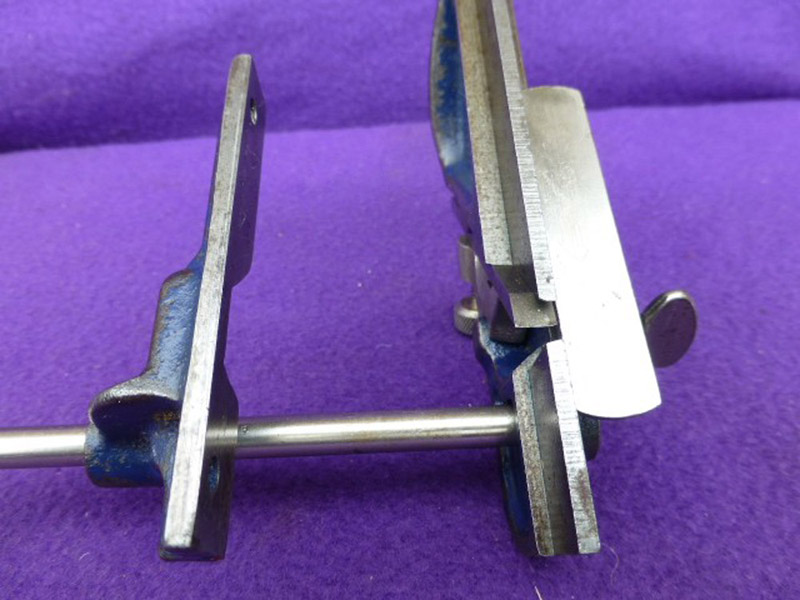

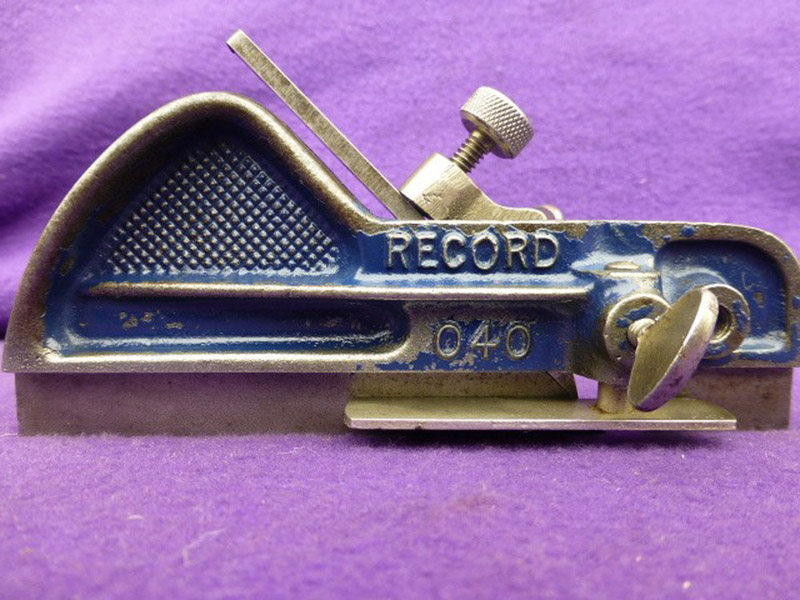

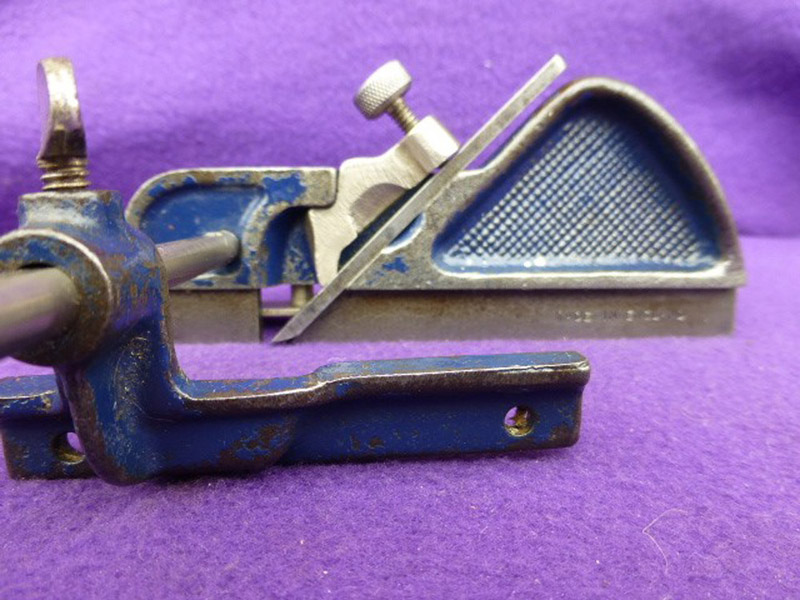

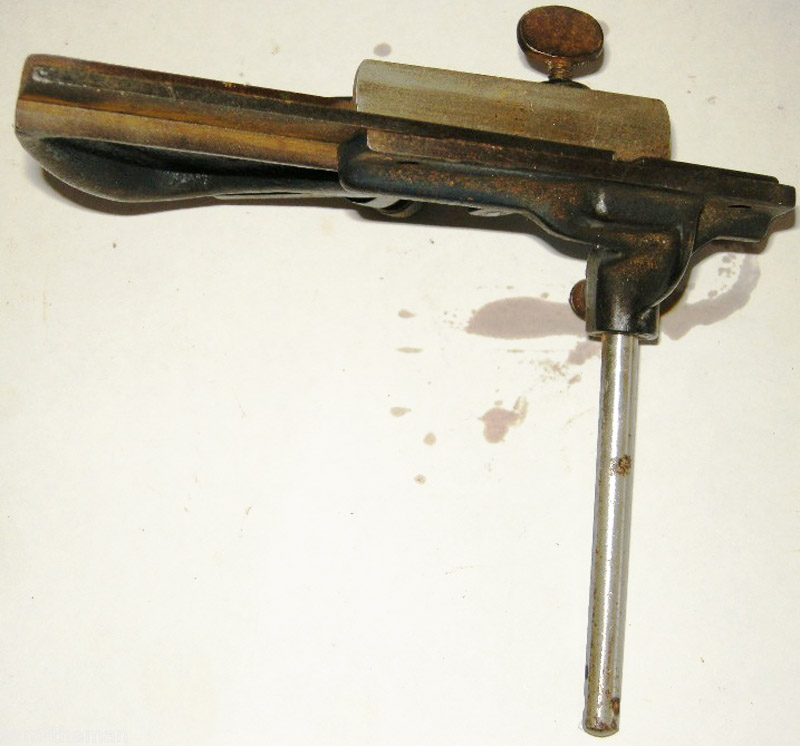

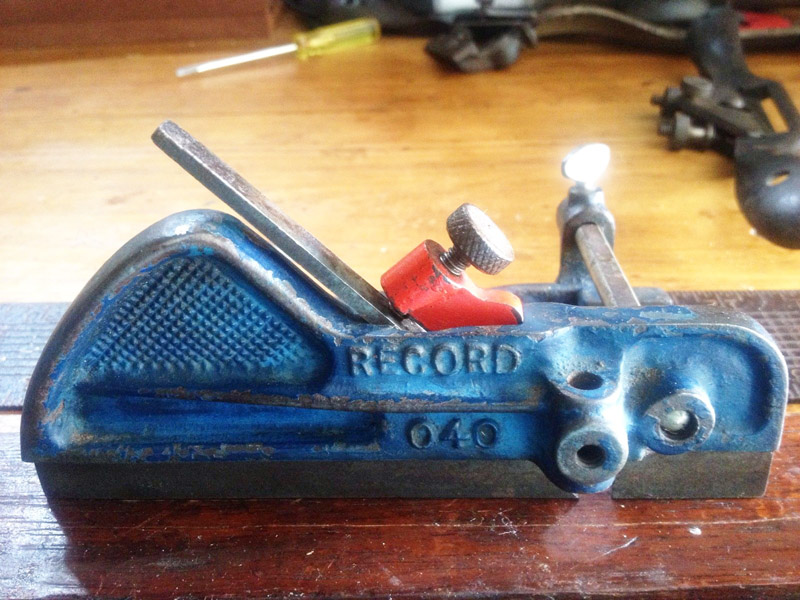

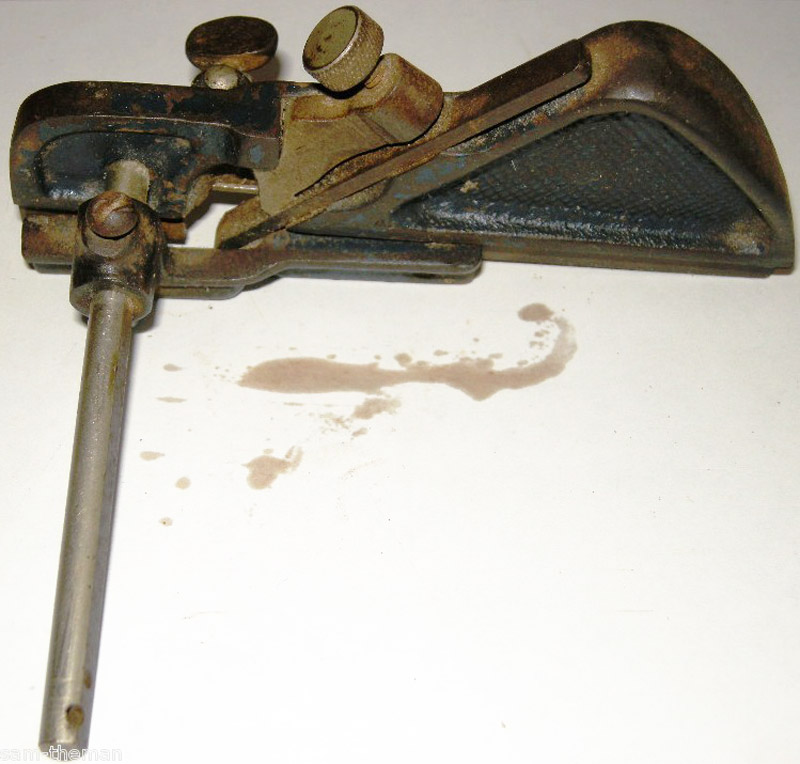

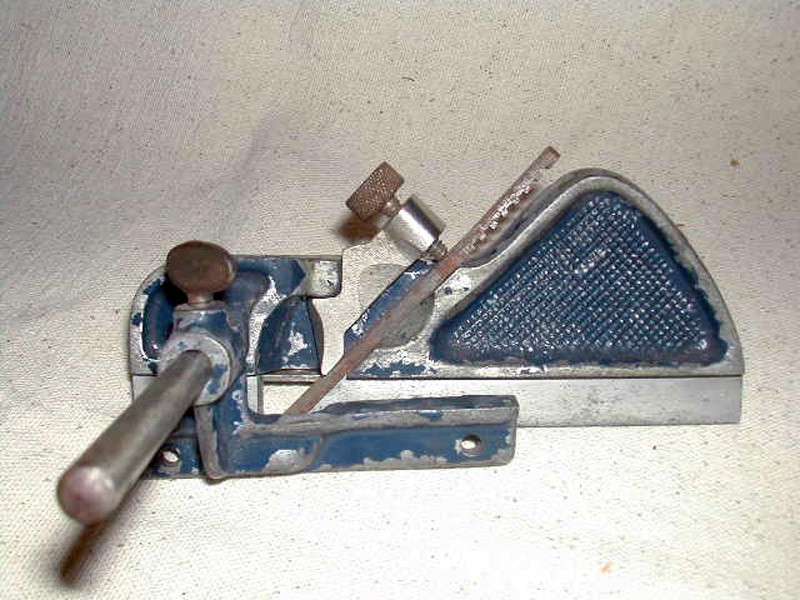

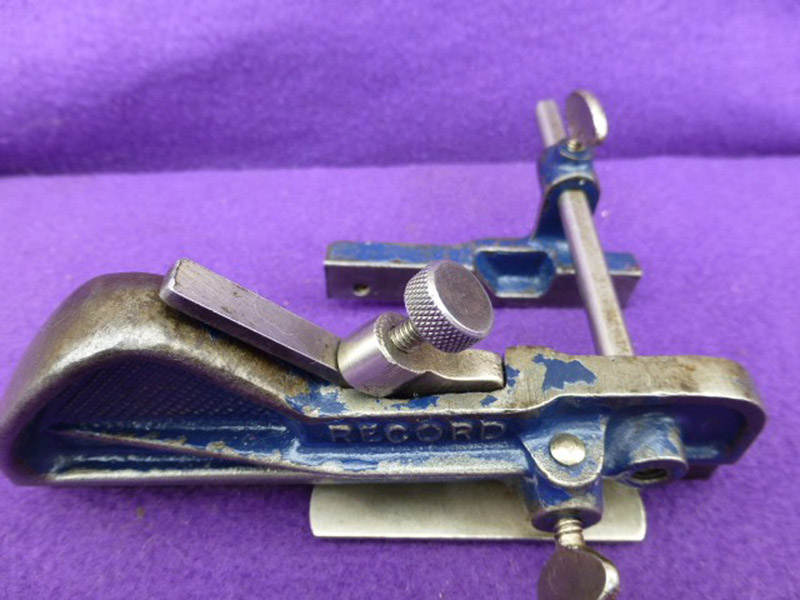

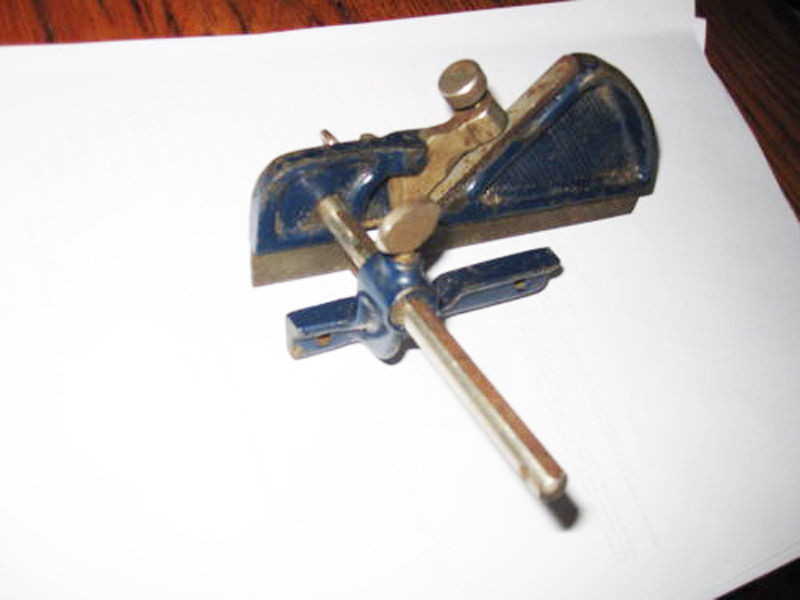

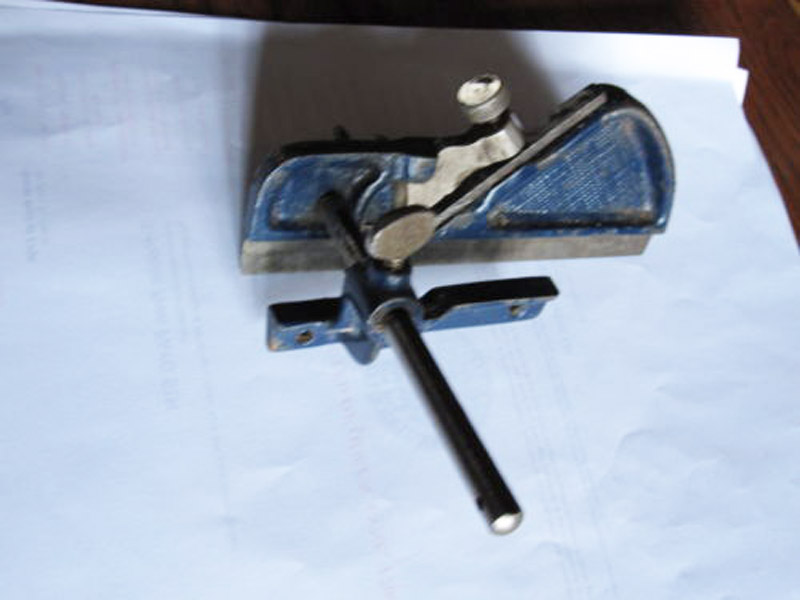

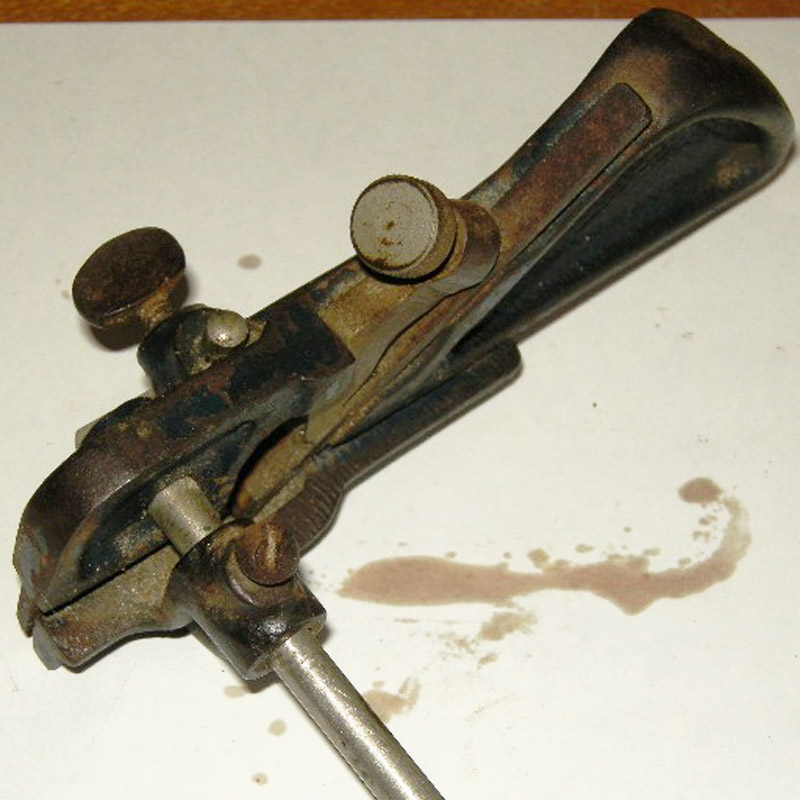

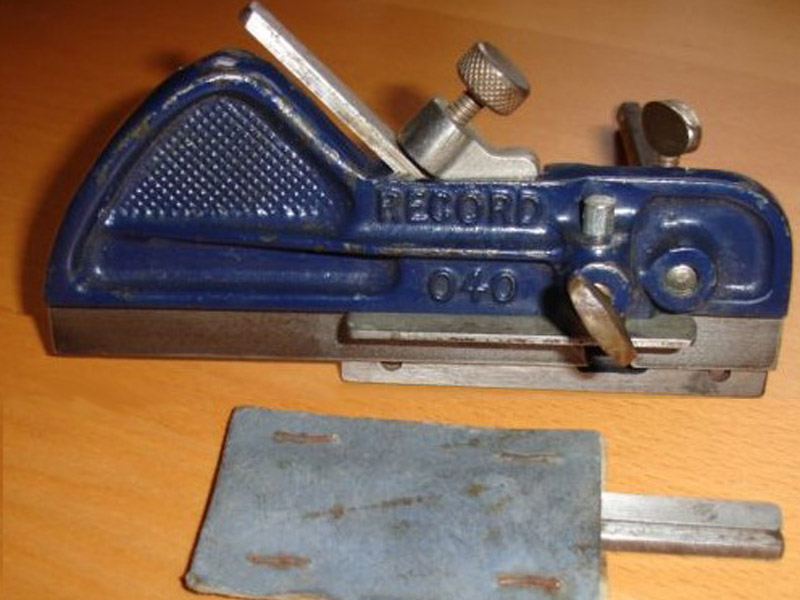

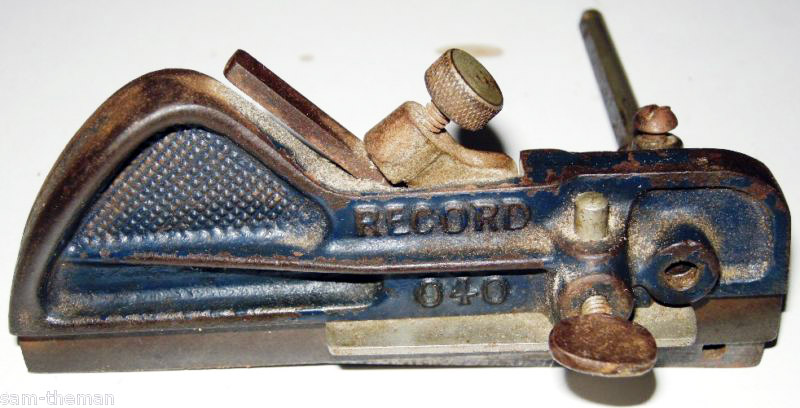

Record No. 040 Plough Plane

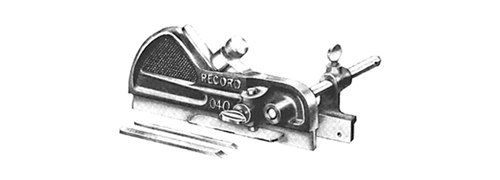

as illustrated in Catalogue No. 15, February 1938

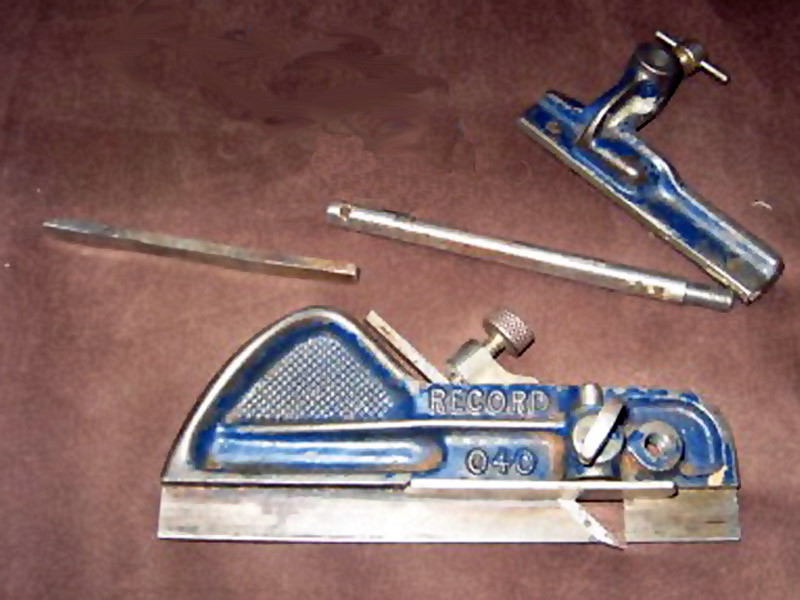

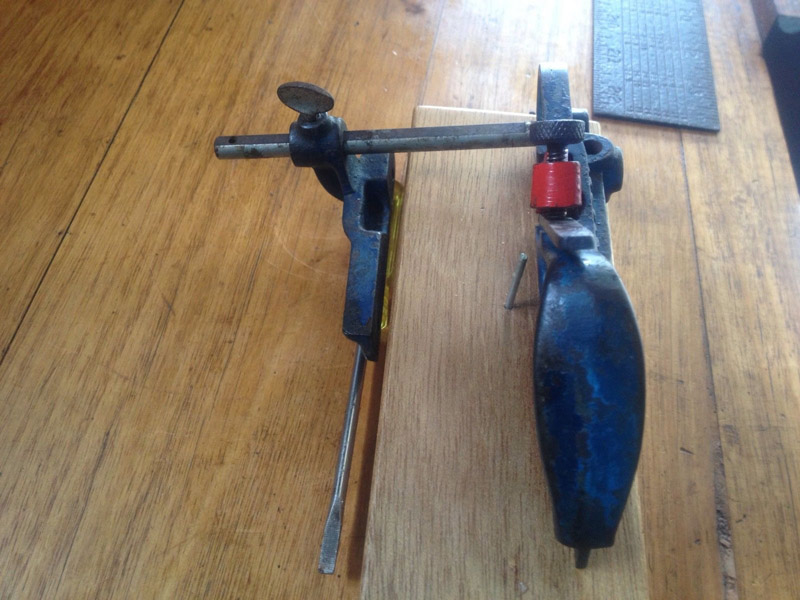

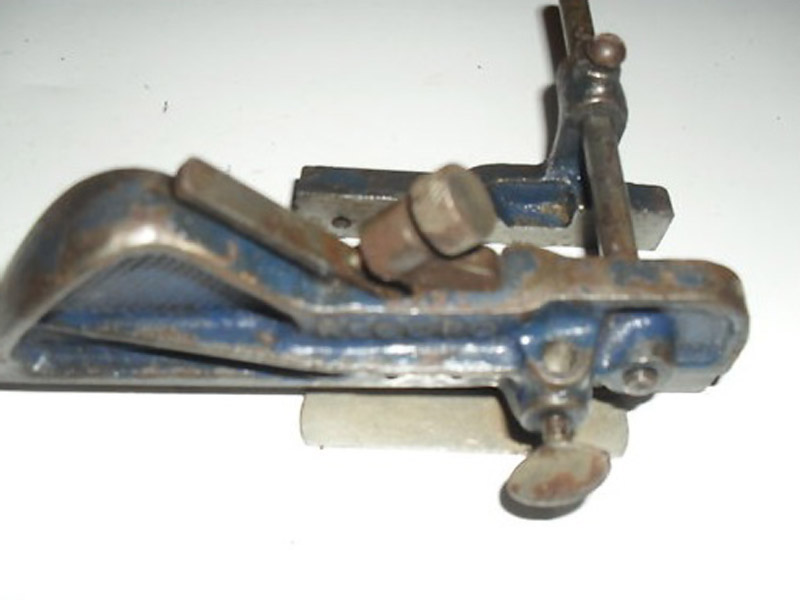

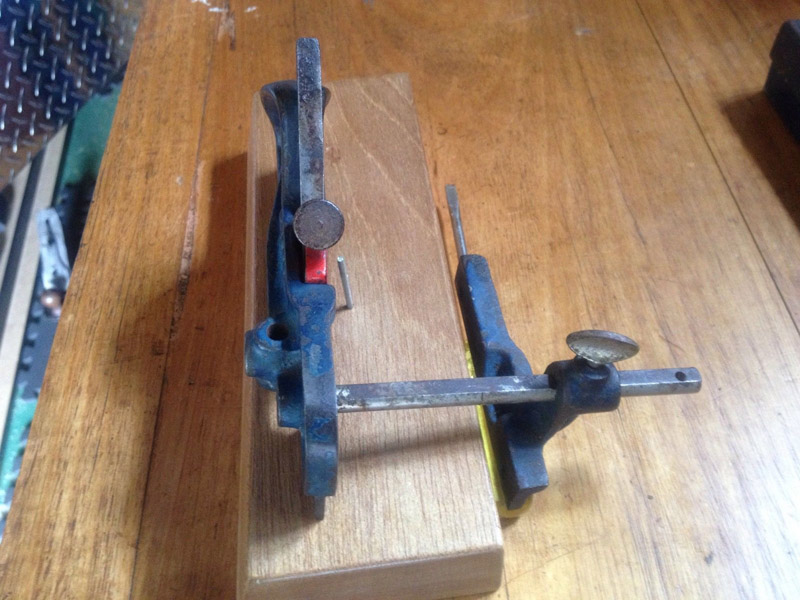

This plane is suitable for grooving for plywood panels etc. It is fitted with adjustable depth gauge and single arm fence, and will cut grooves 1/2″ deep up to 3″ from the edge of a board.
Three plough cutters are supplied with each plane – 1/8″, 3/16″ and 1/4″.
Additional cutters are available for grooving plywood panels, etc. Cutters of millimetre width were also available in 4mm, 6mm, 9mm & 12mm.
First introduced in Catalogue No. 14, published in November 1935.
Specifications:
Manufactured: | From 1935 to 1943 |
Length: | 5-1/2 inches |
Weight: | 1 pound |
Cutter Width: | 3 cutters. 1/8, 3/16 & 1/4 inches |
Construction: | Cast iron body & fence. Tungsten steel cutters |
Finish: | Blue Enamel. Nickel Plated fittings |

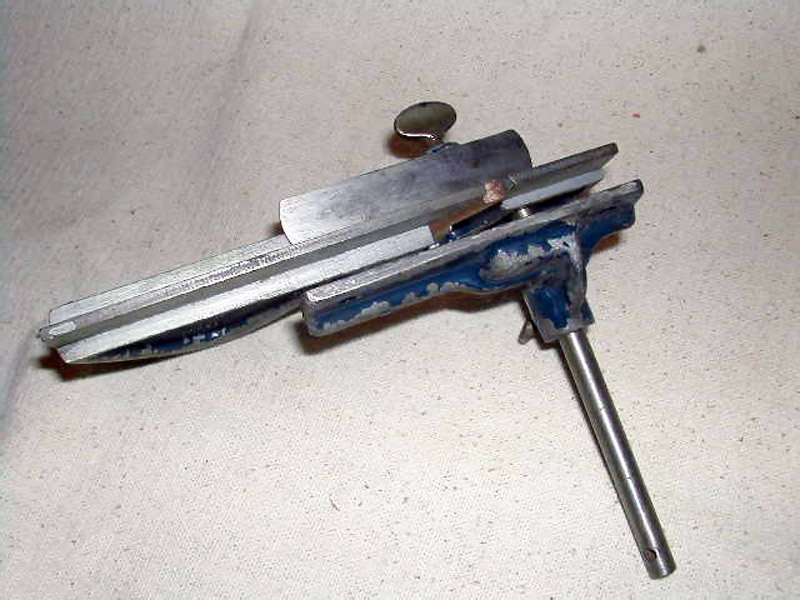

Features: | Adjustable fence & depth stop. Different cutter sizes |
Uses: | Light duty plough work |
Average Dealer Price: | $30 to $75 |
Average eBay Price: | $30 to $70 |
Prices Updated: | December 2008 |
Record Planes on eBay right now…
Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
