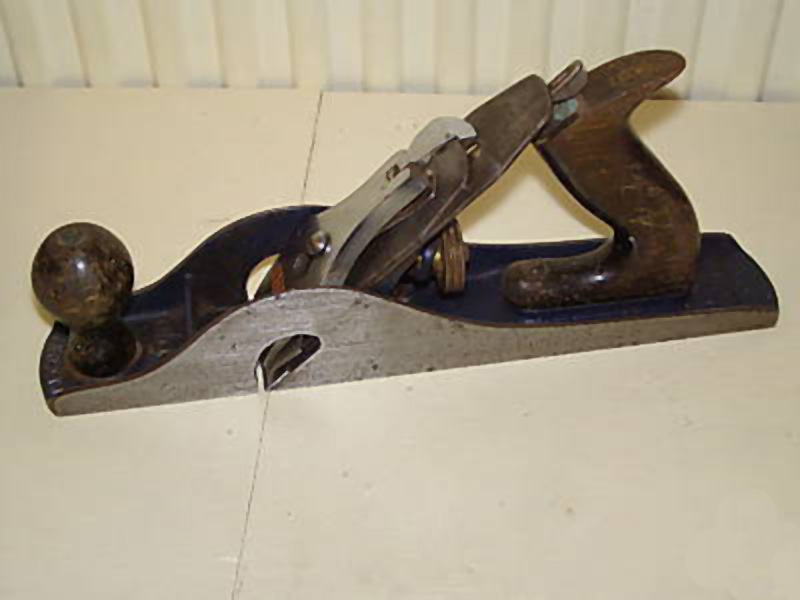

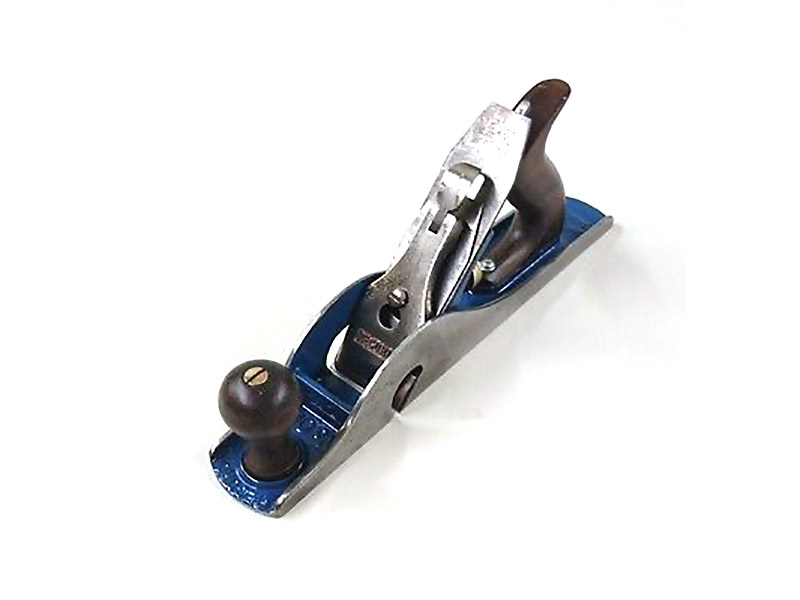

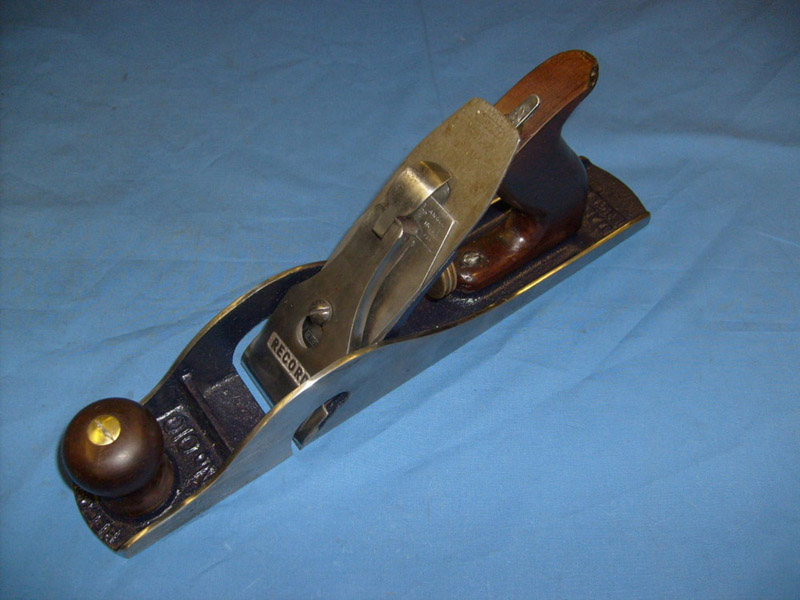

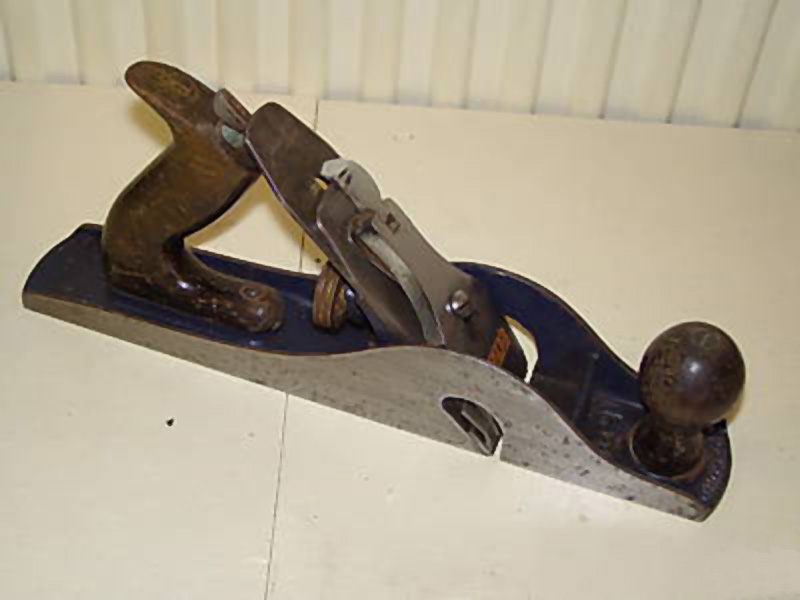

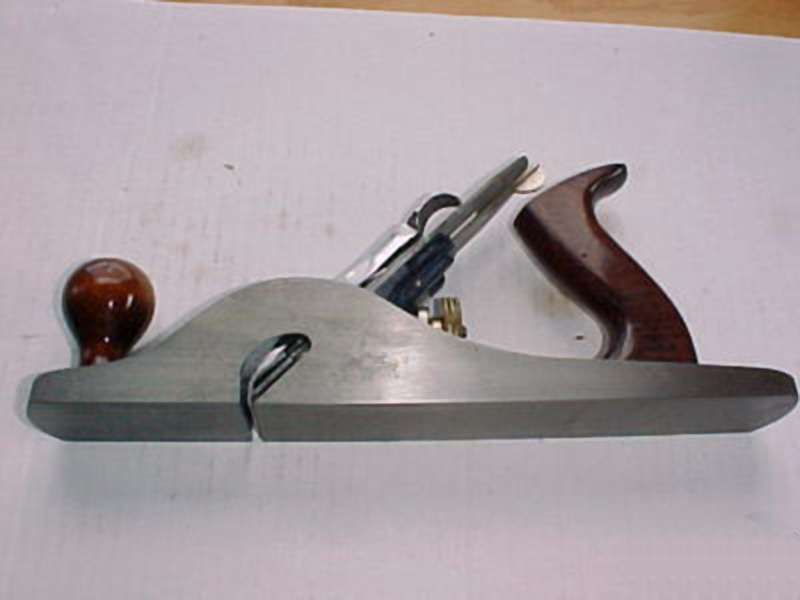

Record No. 010 Carriage Maker’s Rabbet Plane
Record No. 010 Carriage Maker's Rabbet Plane
as illustrated in Catalogue No. 15, February 1938

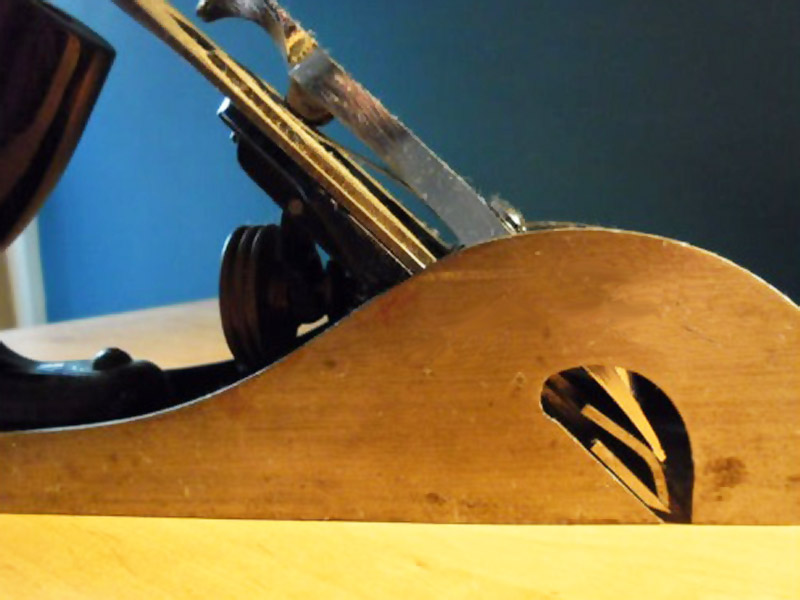

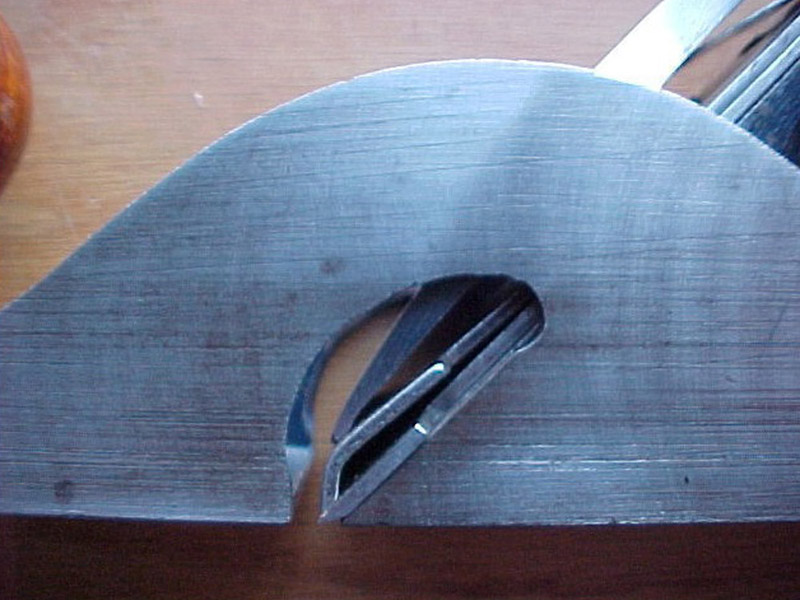

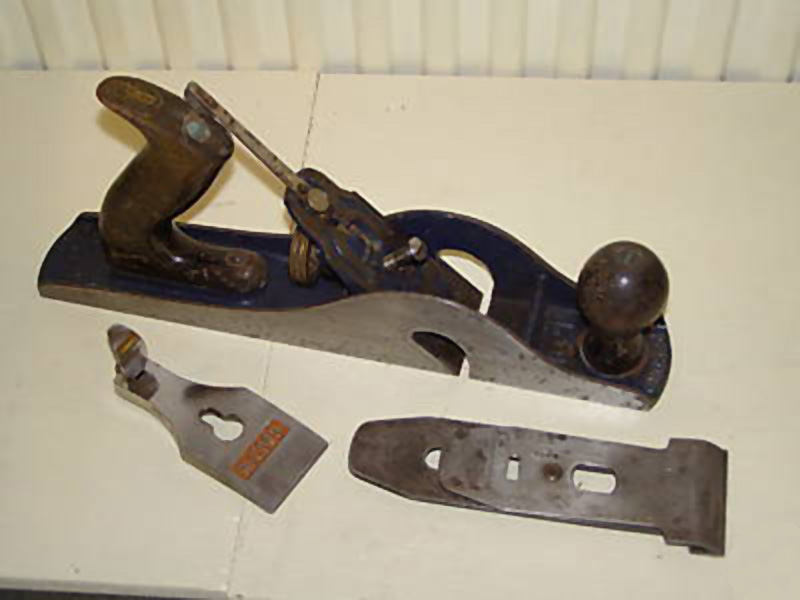

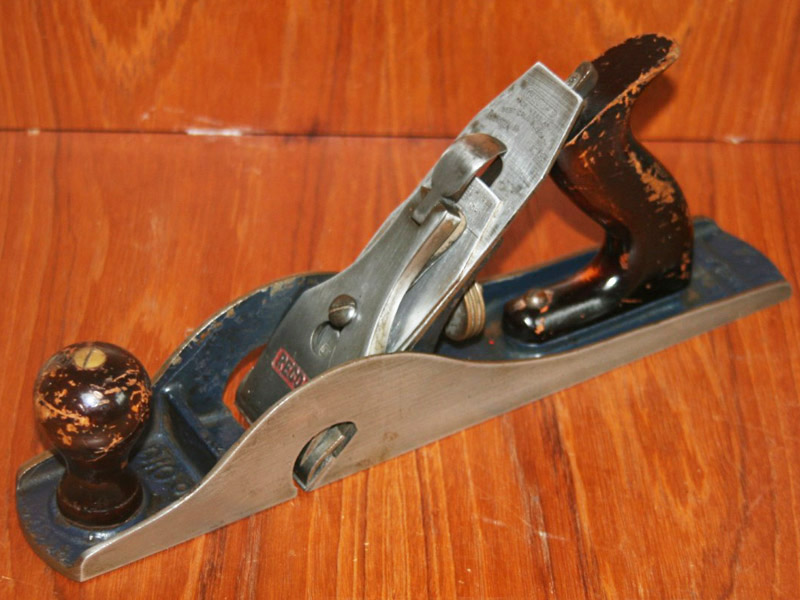

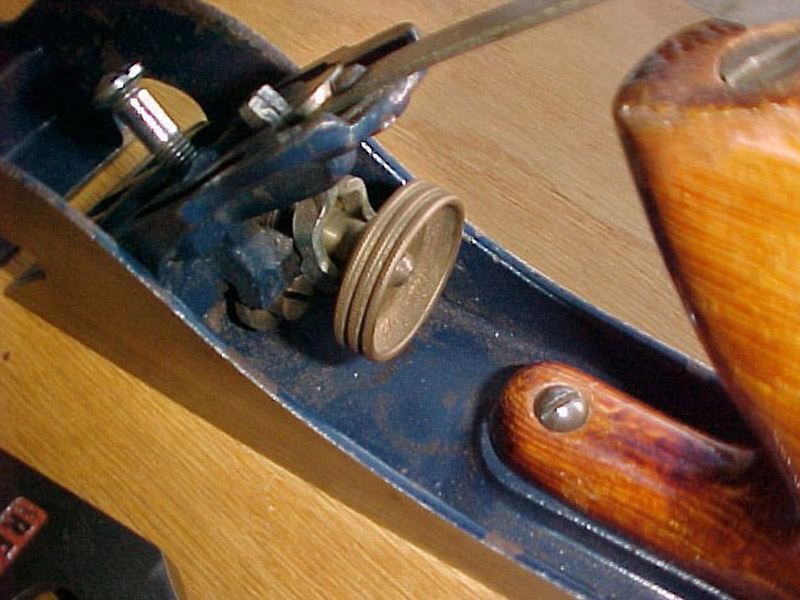

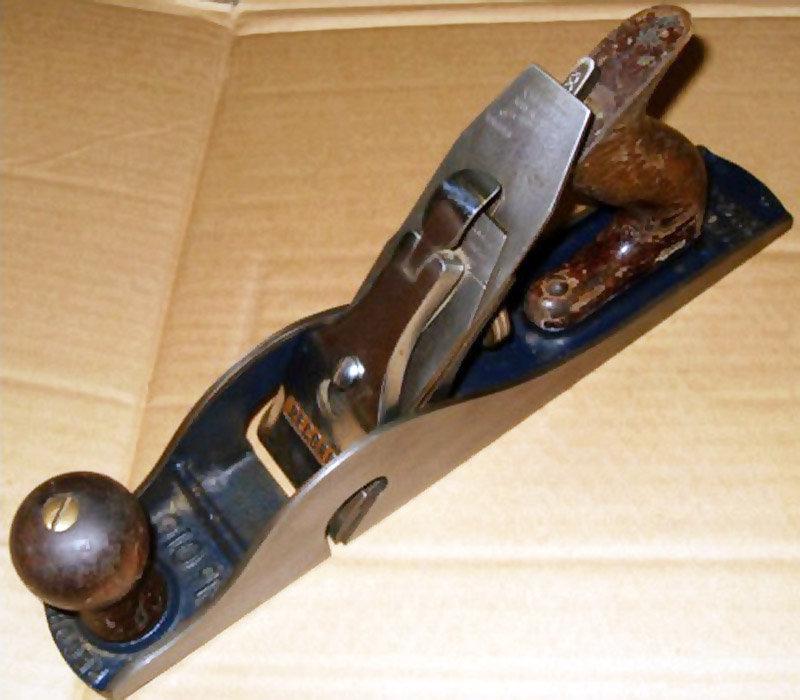

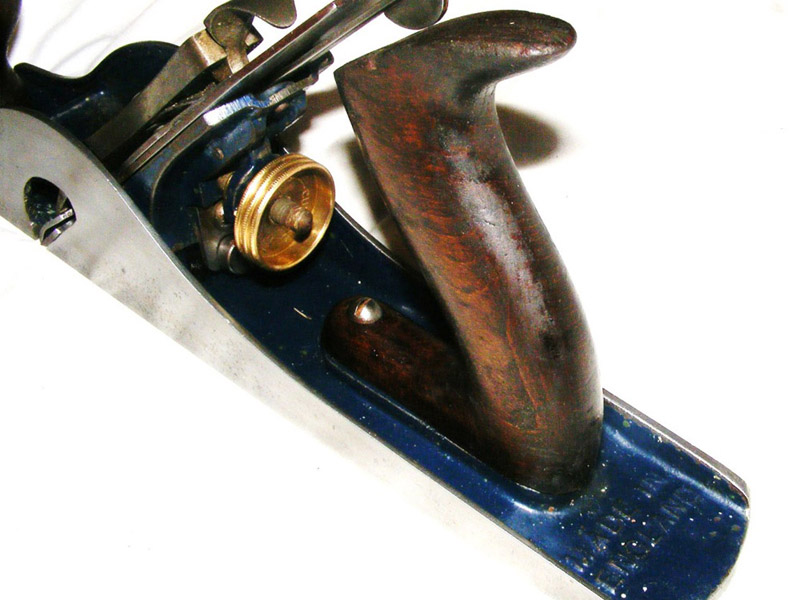

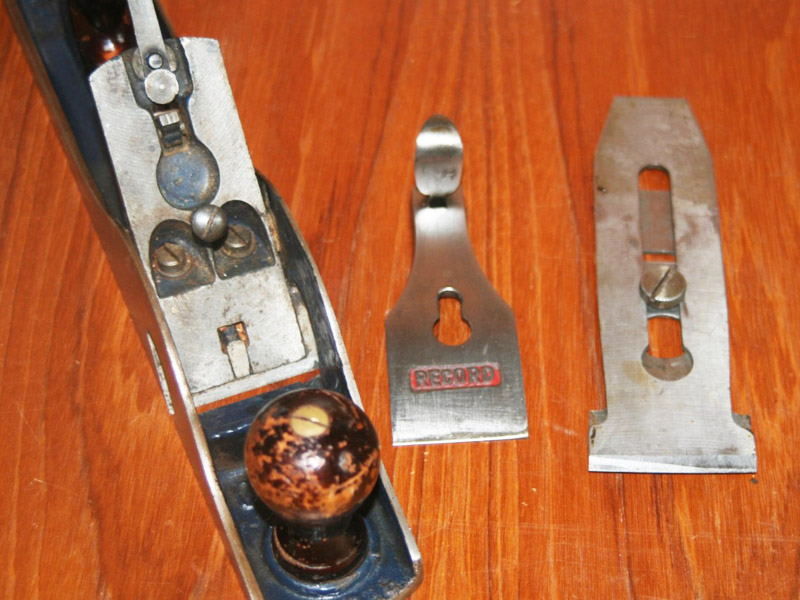

This plane had a malleable iron body and was said to be "practically unbreakable". It was designed and recommended for carriage and wagon building and similar heavy work. End and side adjustment of cutters. Handles and knobs were made of selected rosewood on pre WW2 models, and lever caps and small screws were nickel plated.
First introduced in Catalogue No. 11, published in September 1932.
Specifications:
| Manufactured: | From 1932 to 1994 |
| Length: | 13 inches |
| Weight: | 4-1/4 pounds |
| Cutter Width: | 2-1/8 inches |

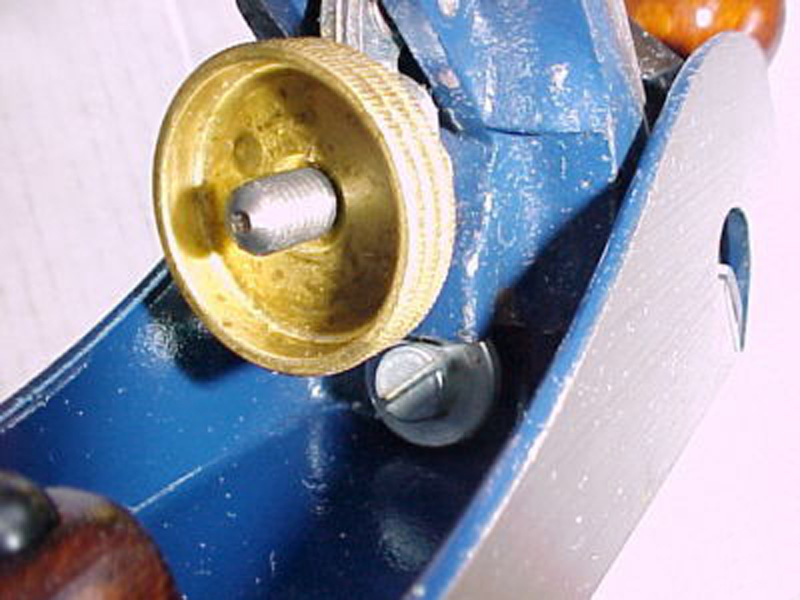

| Construction: | Cast iron body, rosewood, stained beech or plastic handle & knob. Tungsten steel cutter with brass adjuster |
| Finish: | Blue Enamel |
| Features: | Full width of body cutter |
| Uses: | General purpose bench rabbet plane |
| Average Dealer Price: | $75 to $120 |
| Average eBay Price: | $60 to $90 |
| Prices Updated: | December 2008 |
 |  |  |
 |  |  |
 |  |  |
 |  |
Record Planes on eBay right now...
 |
 RECORD 60 1 2 HAND PLANE SIZE AS STANLEY 65 LOW ANGLE  US $24.01
|
 RECORD O2OC COMPASS CIRCULAR PLANE NEAR MINT NO RESERVE US $102.50
|
 RECORD CIRCULAR PLANE 020C NEW IN ORIGINAL BOX US $39.71
|
 1984 RECORD MARPLES Wood Plane Catalog English French US $10.00
|
 Vintage RECORD UK 311 1 1 8 Shoulder Plane Old Tool US $92.30
|
 Record No 405 Multi Plane with cutters in box Lk NR US $42.01
|
 Record No 077A Bull nose rebate plane with box US $15.63
|
 Record 050 Improved Combination Plane with 17 Cutters US $150.00
|
 Record 044c Plough Plane with 10 Cutters Boxed Unused US $130.00
|
Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
