Record No. CS88 Calvert Stevens Smooth Plane
Record No. CS88 Calvert Stevens Plane

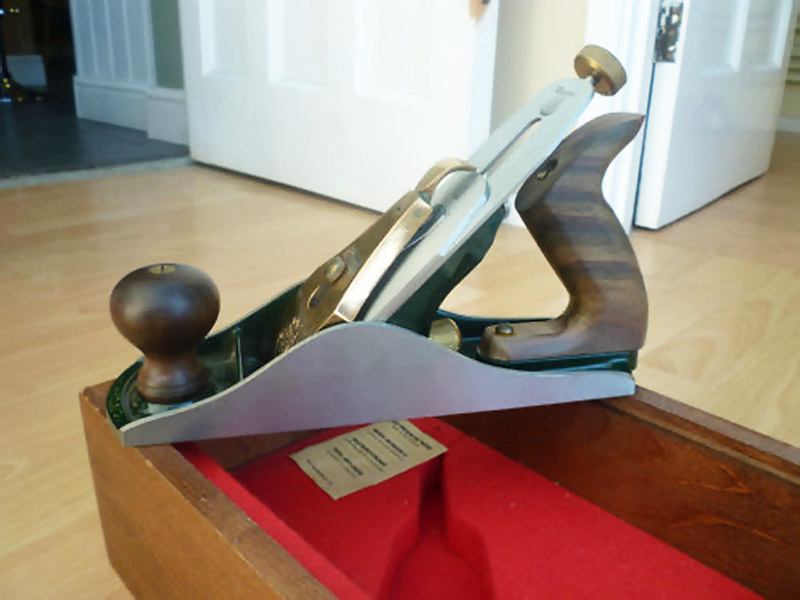

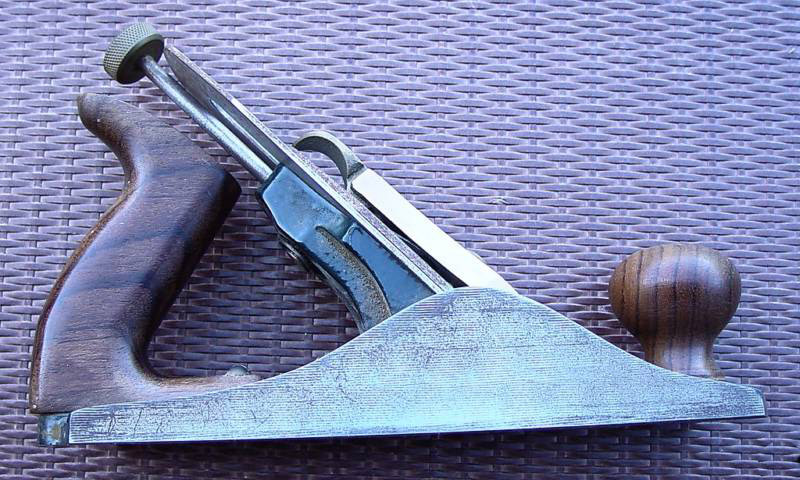

Created to fill the gap between a Stanley-type plane and those made by Norris of London, the Record CS88 boasted superior workmanship to any other Record plane that was currently in production at the time.

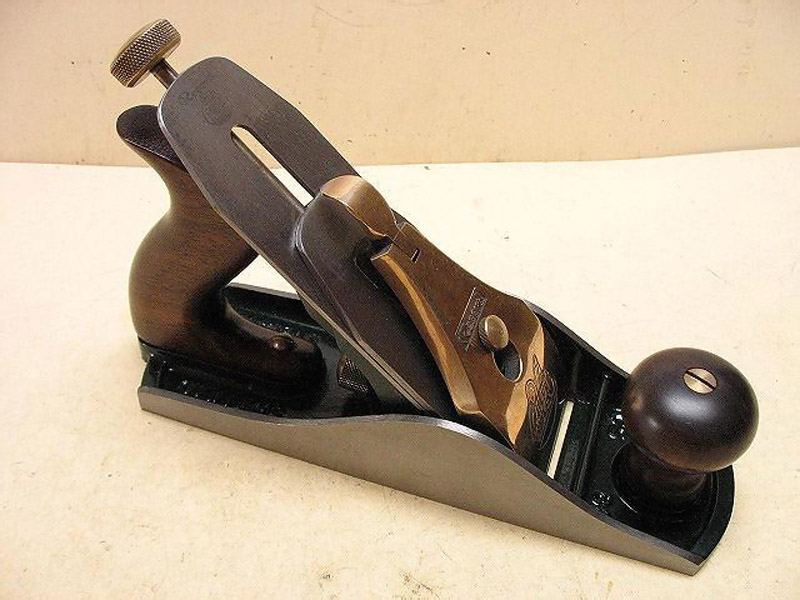

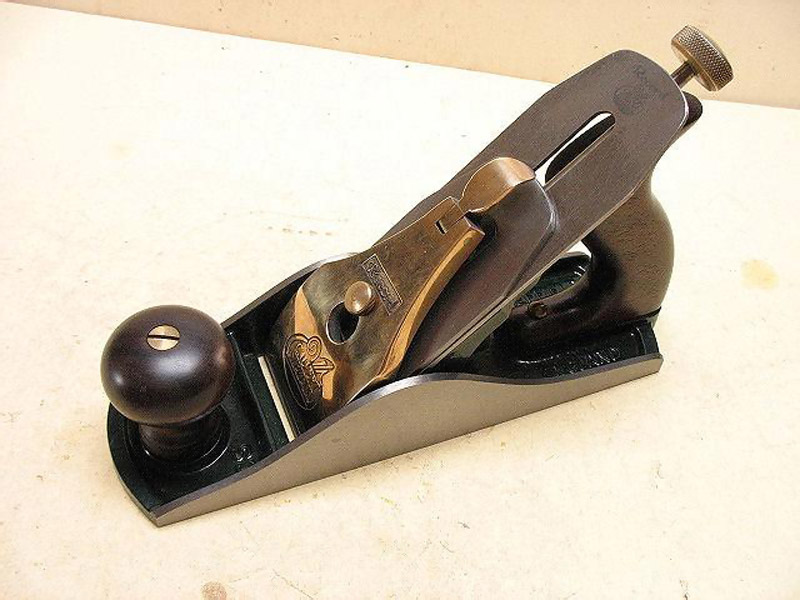

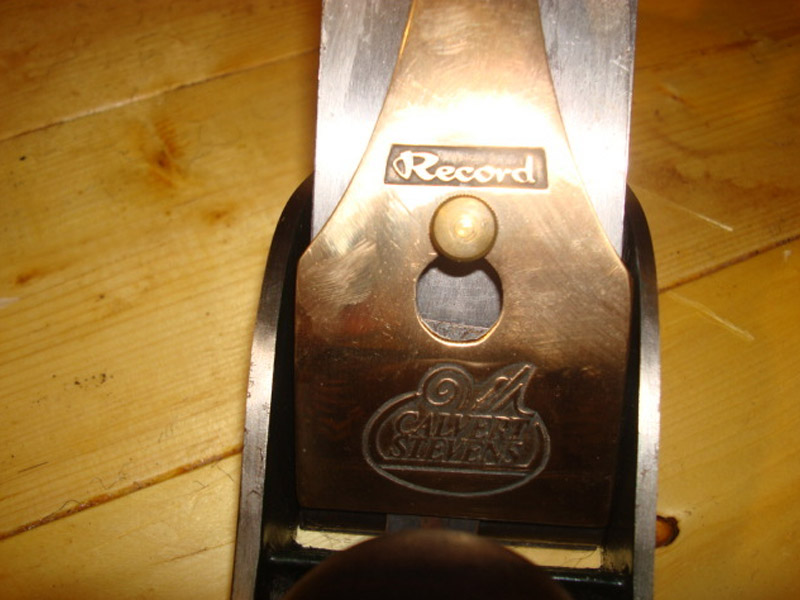

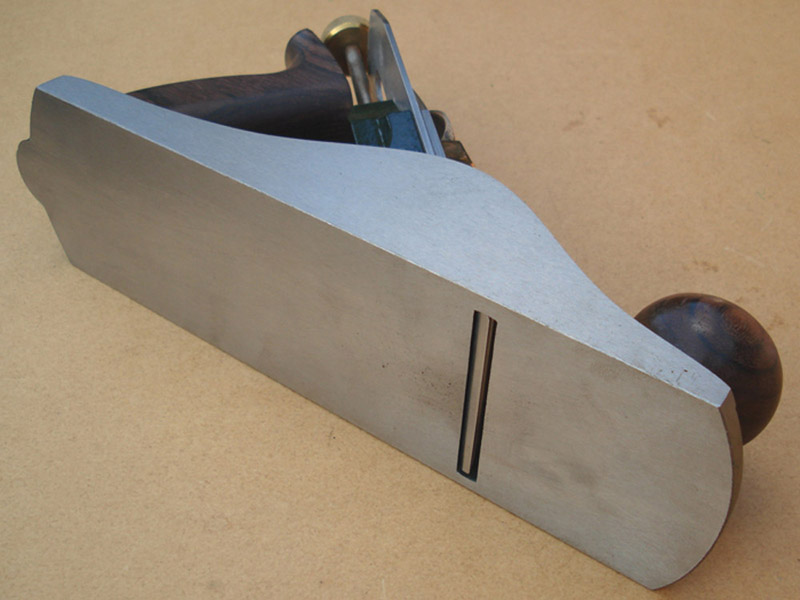

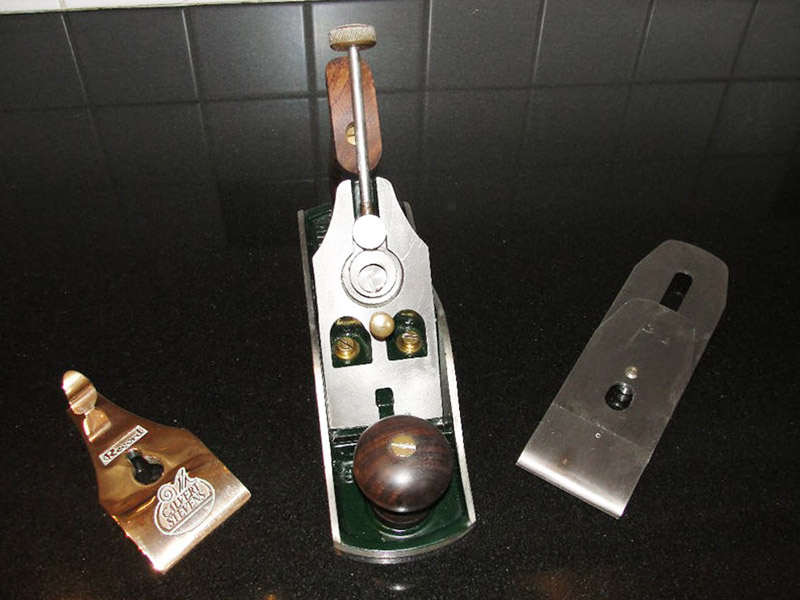

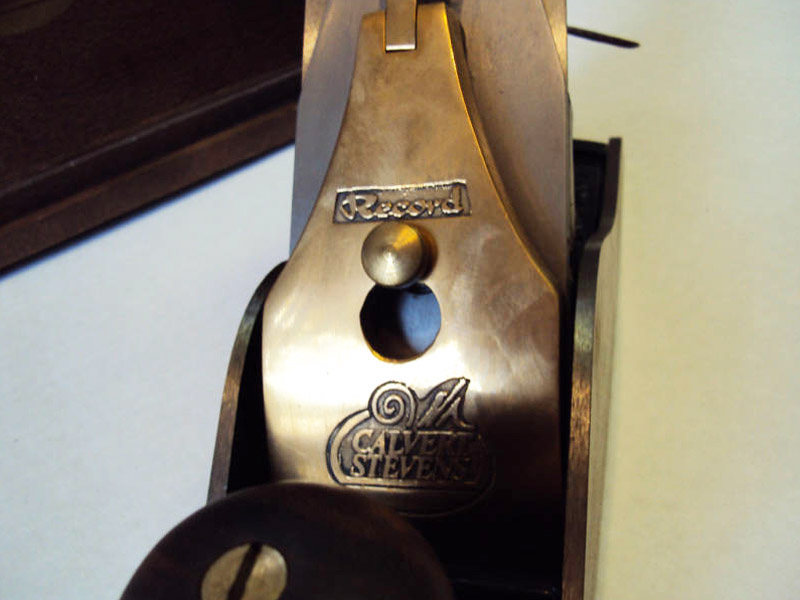

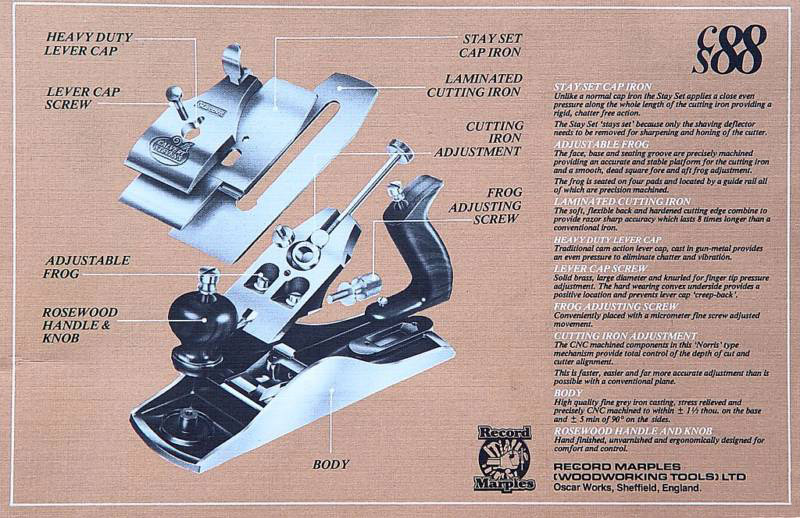

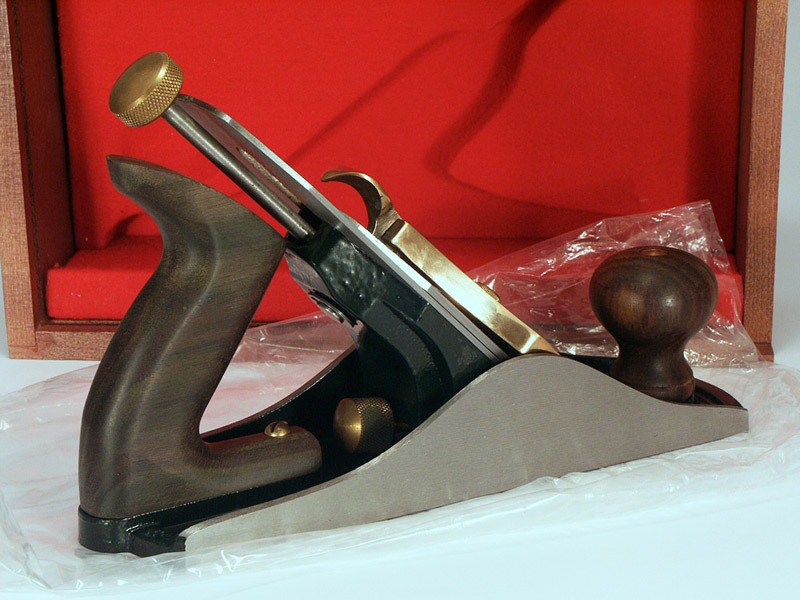

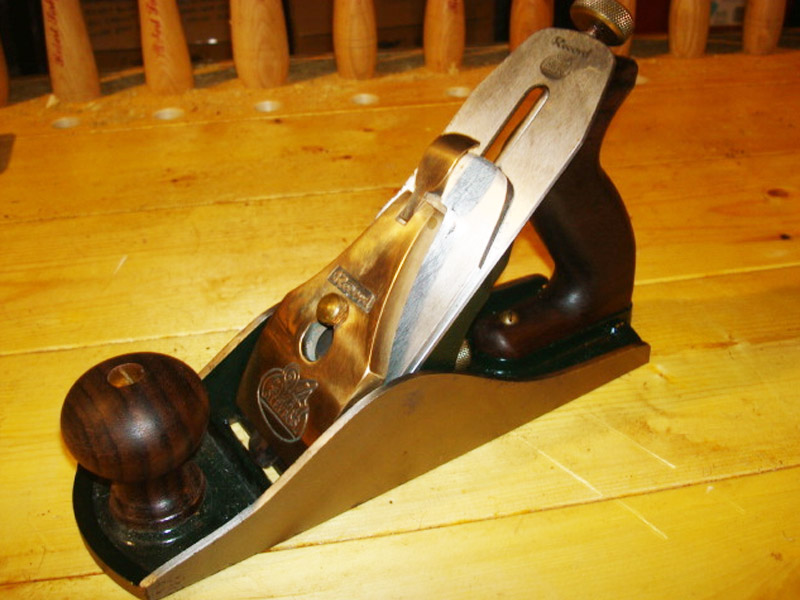

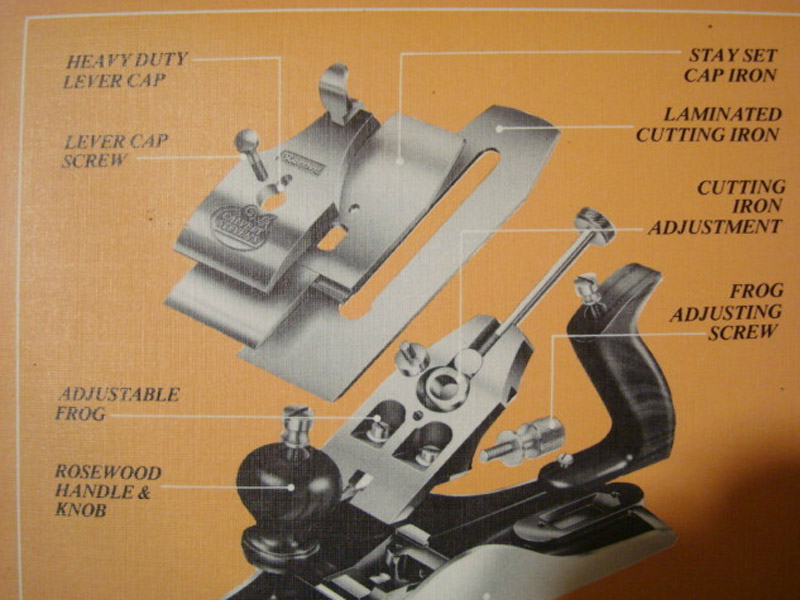

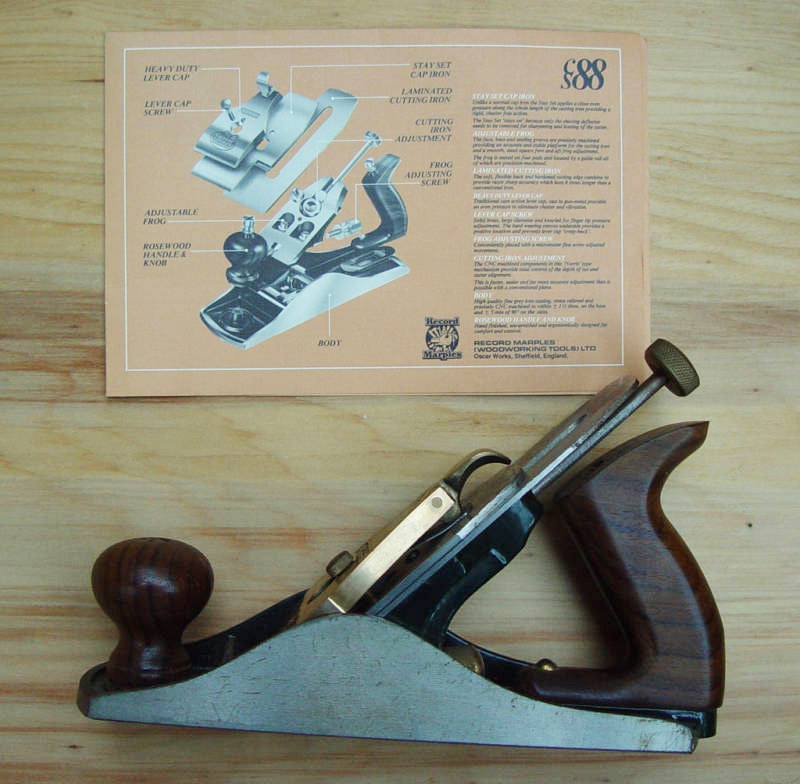

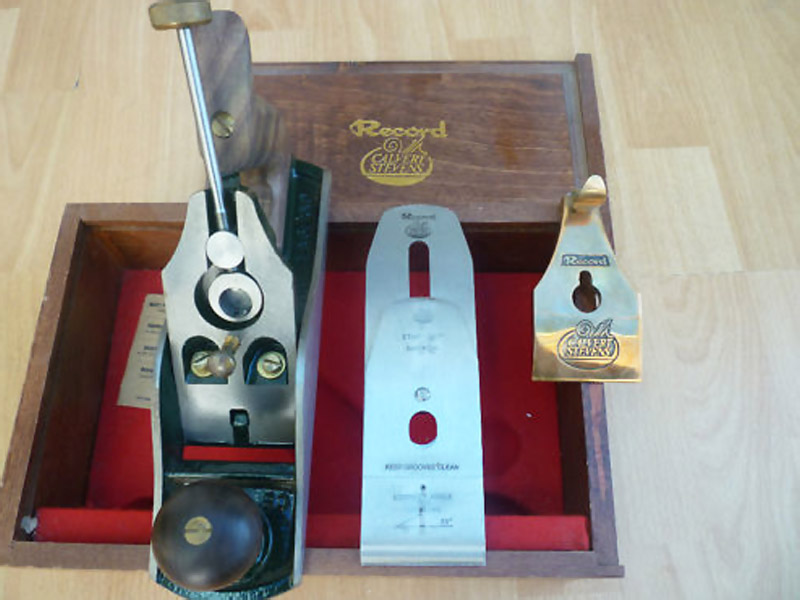

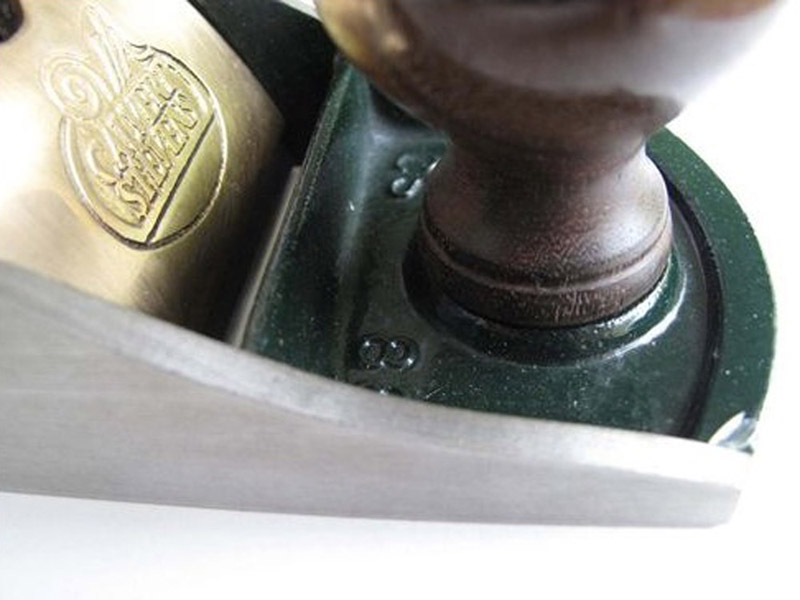

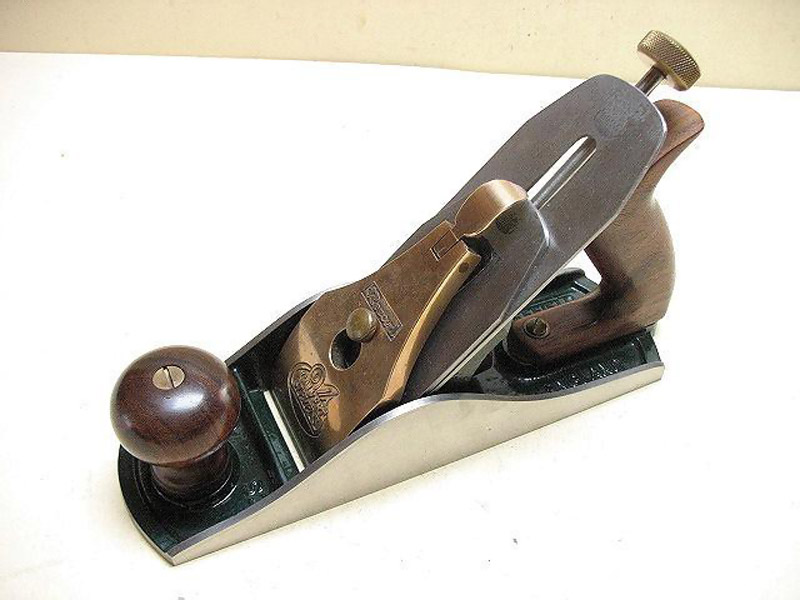

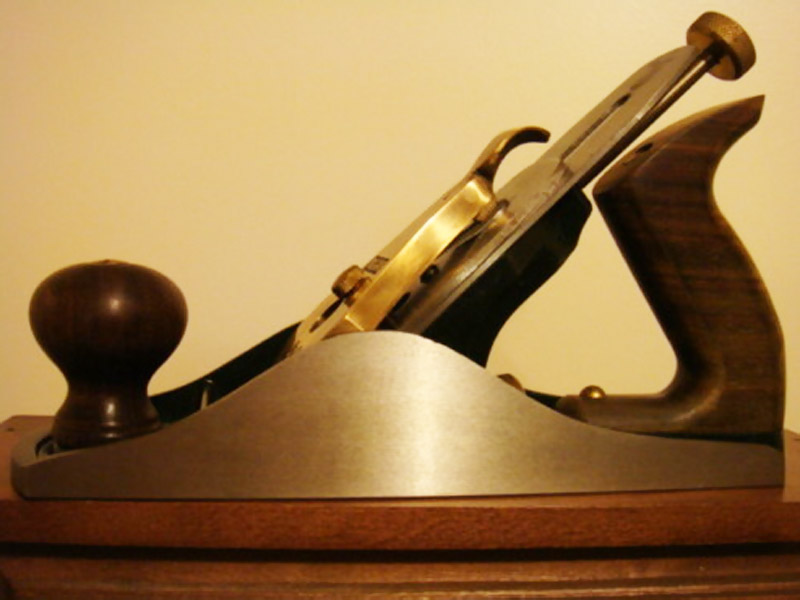

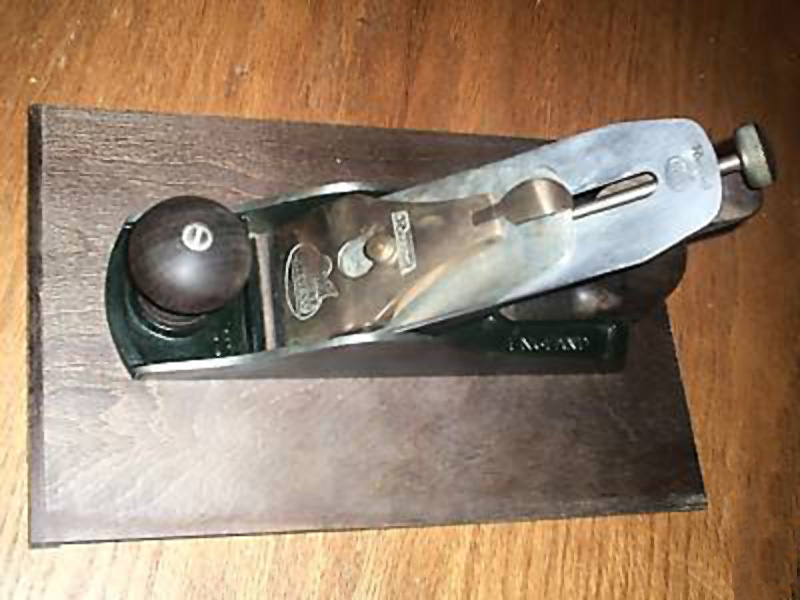

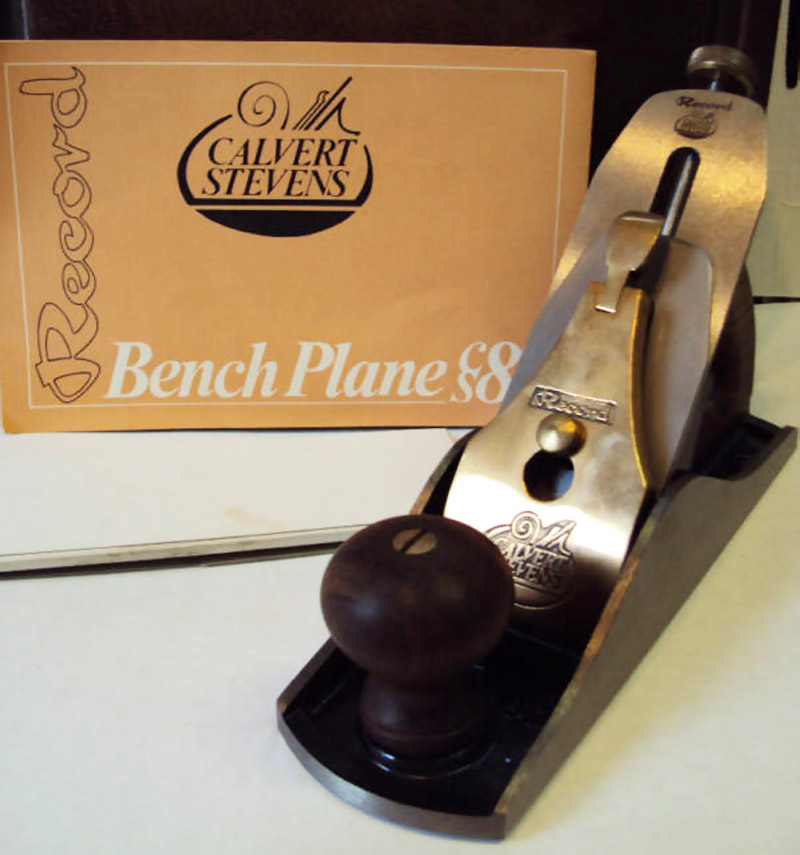

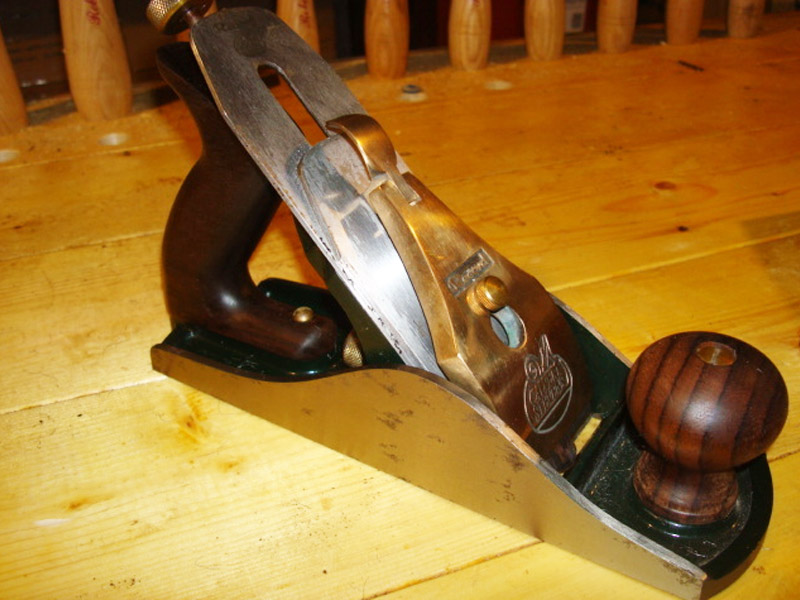

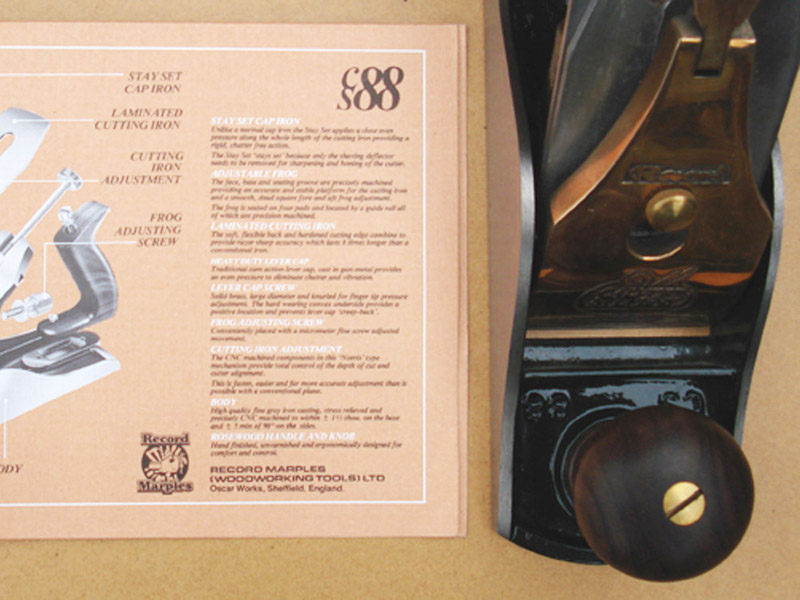

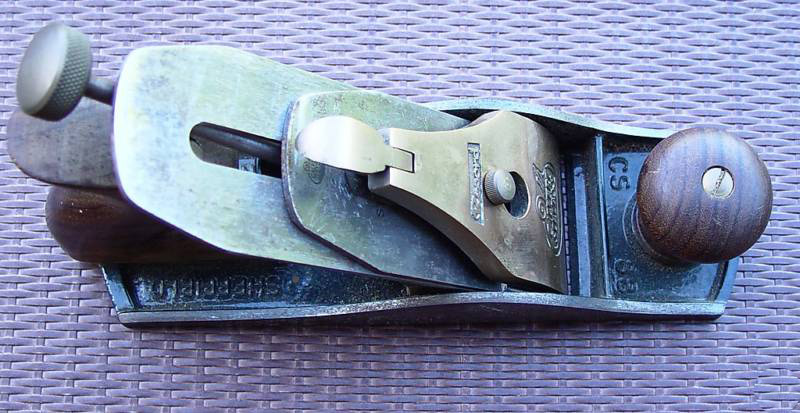

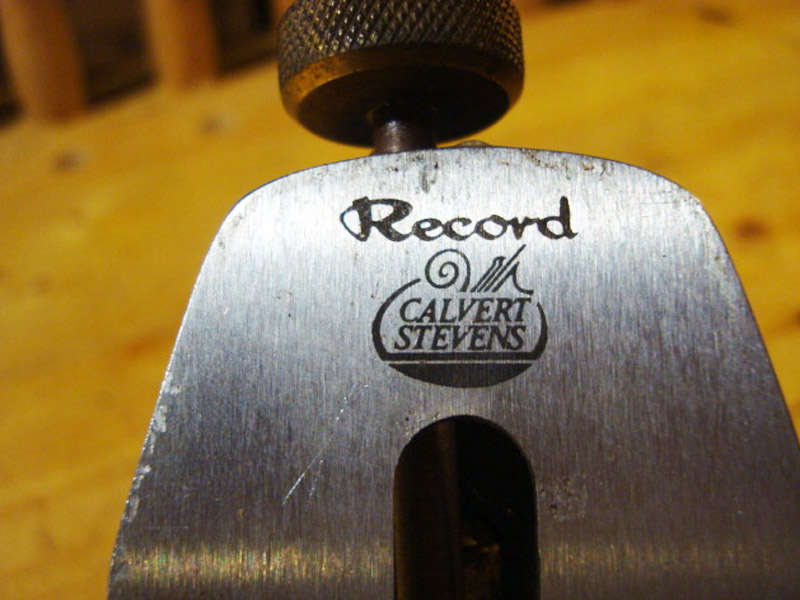

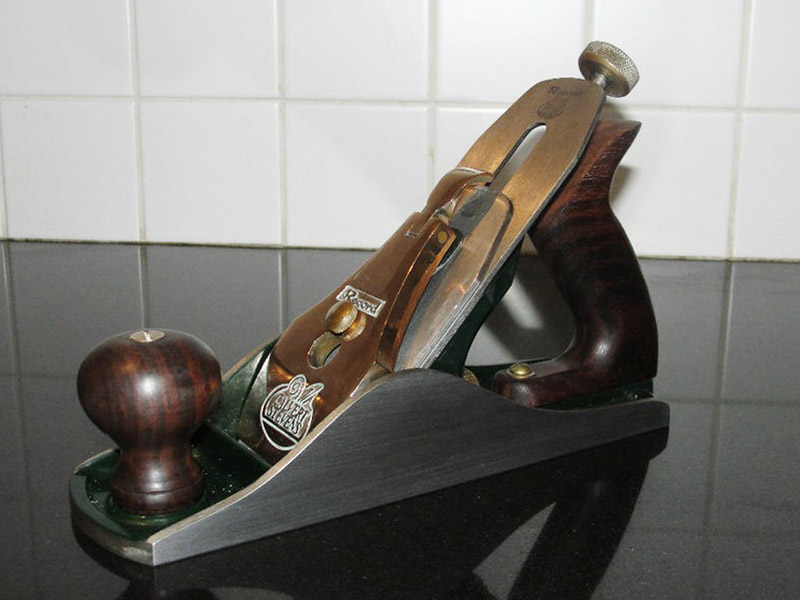

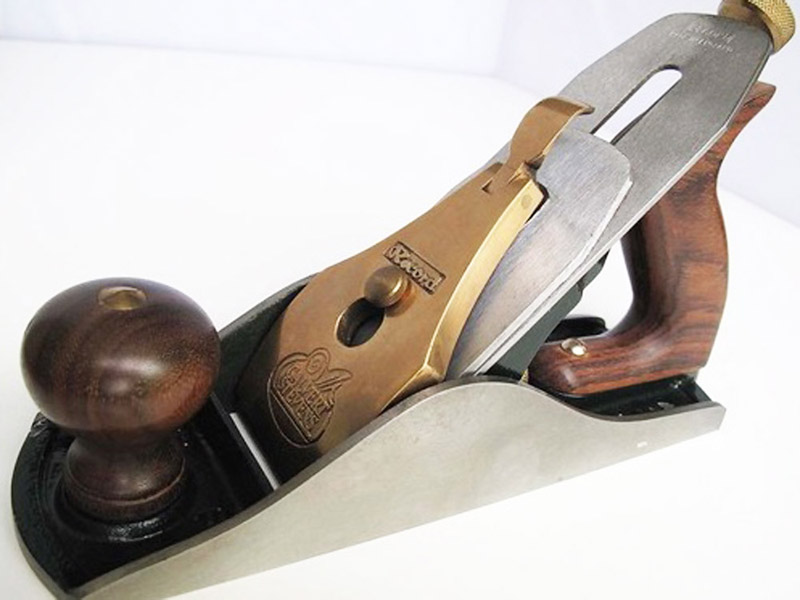

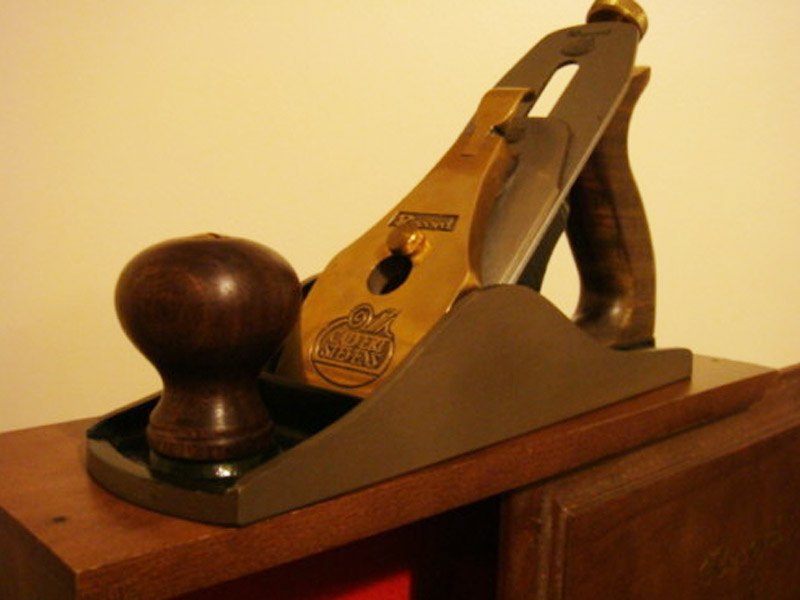

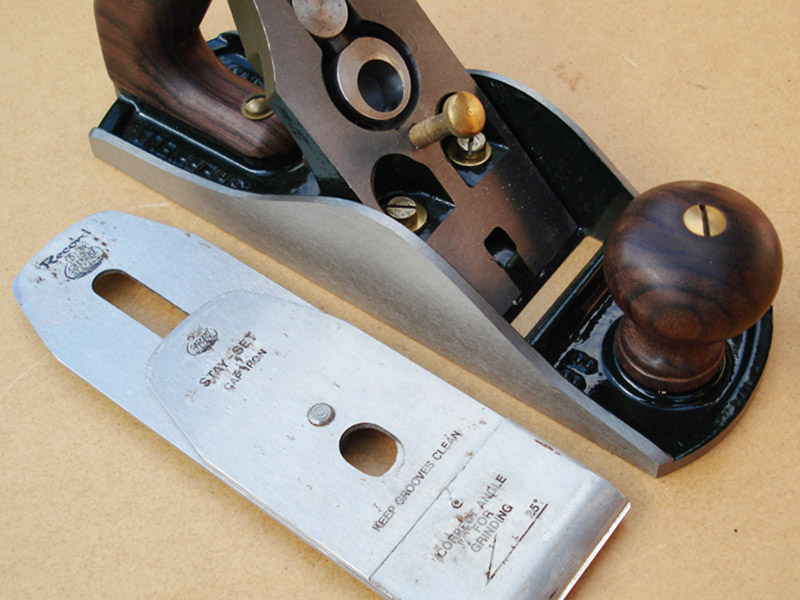

Developed by production engineer Martin Calvert and plane production manager Mel Stevens, the CS88 (often referred to as the Calvert-Stevens) boasted such innovations as a superior frog seating, which was accurately machined to very fine tolerances, a much heavier body casting than other models in the Record line up, and a Norris-style adjuster for the depth of cut and lateral movement. The plane also features a Japanese made thick laminated steel cutter, which was fitted with a Stay-Set cap iron, along with a a gunmetal lever cap with a large knurled screw.

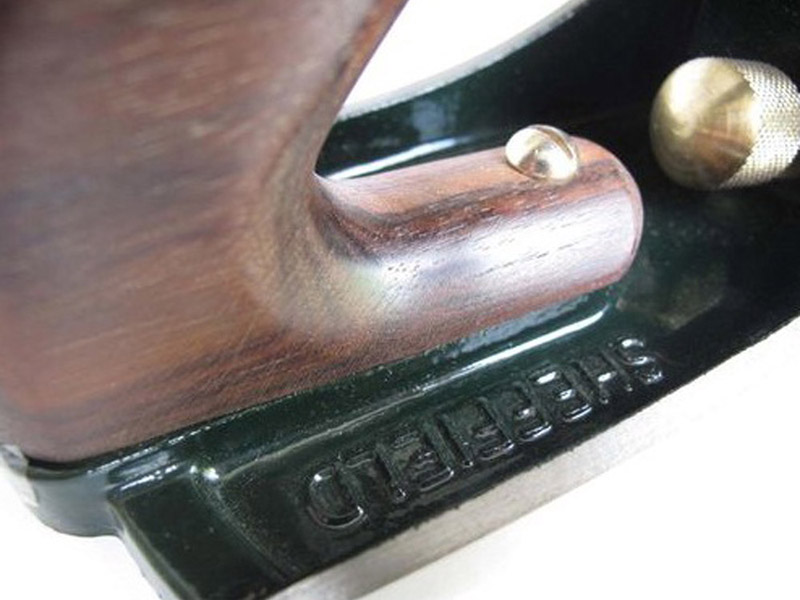

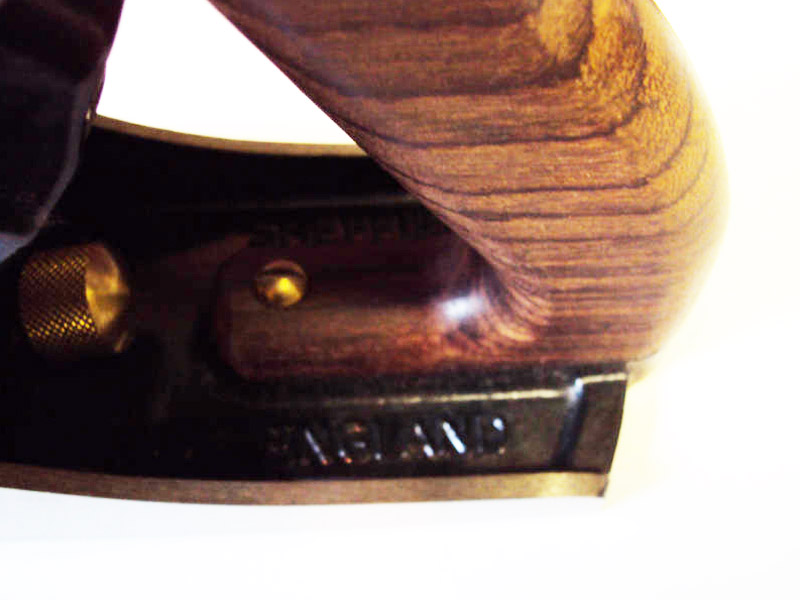

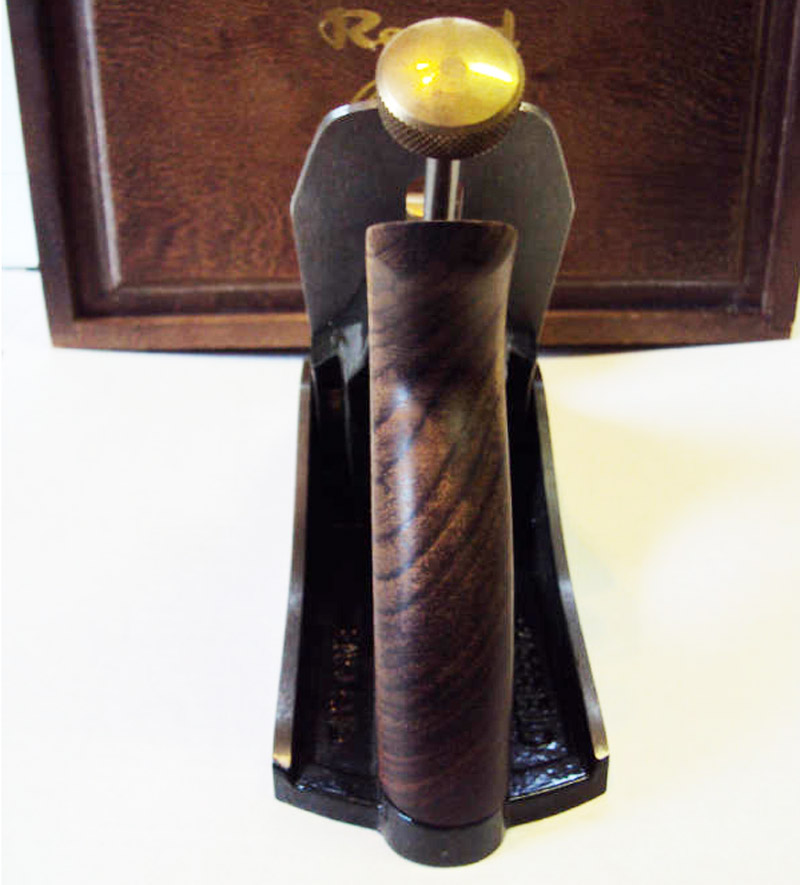

The handle and knob were of select Indian rosewood and each plane was individually marked with a production number on the body casting under the rear handle.

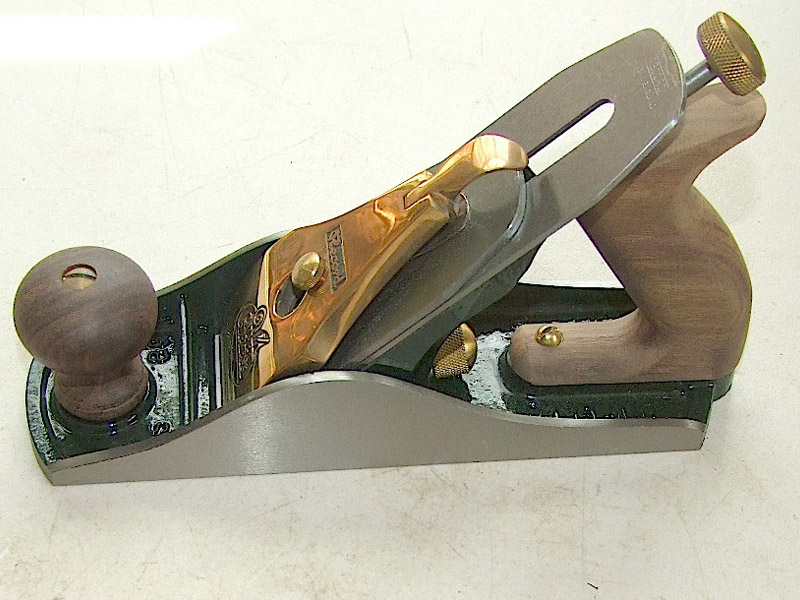

Rather than the normal "Record Blue" enamel finish, the body and frog were enameled in dark green.
The CS88 had the shortest production period of any Record Plane. It was first introduced in the 1988 catalogue and last listed in the October 1990 one.

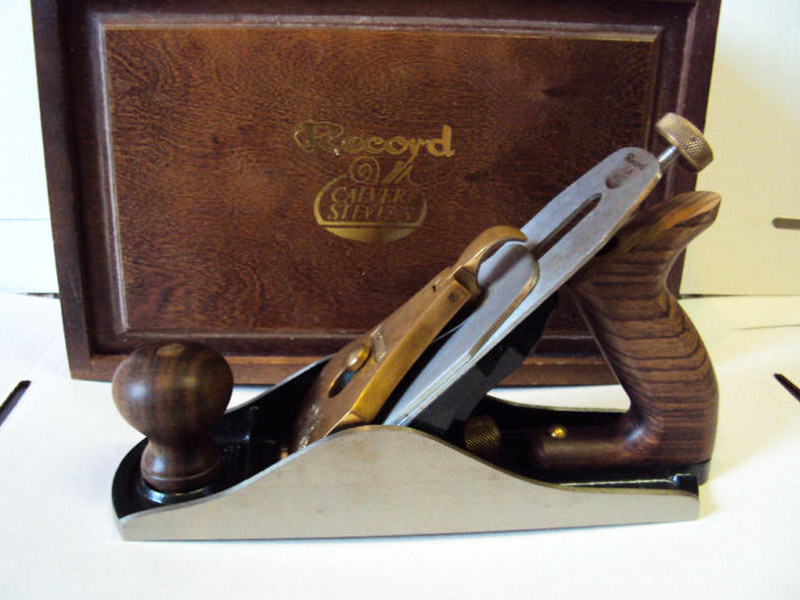

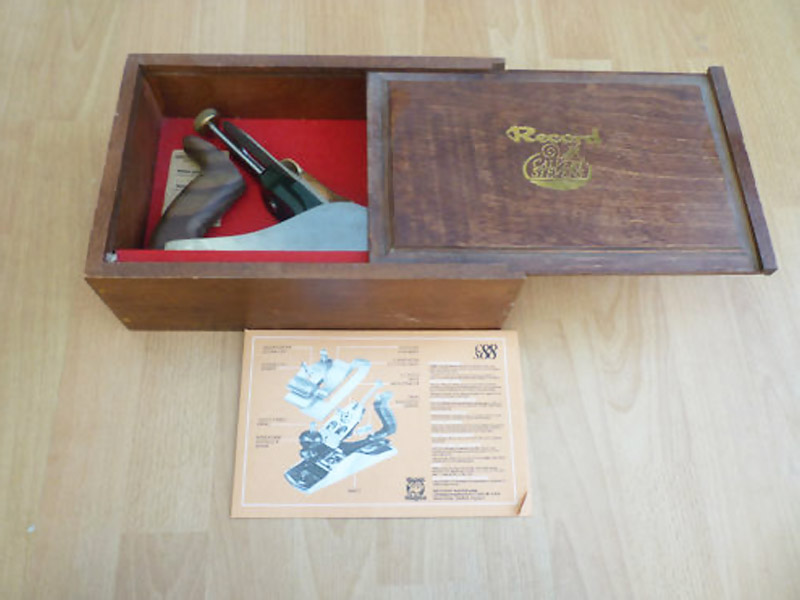

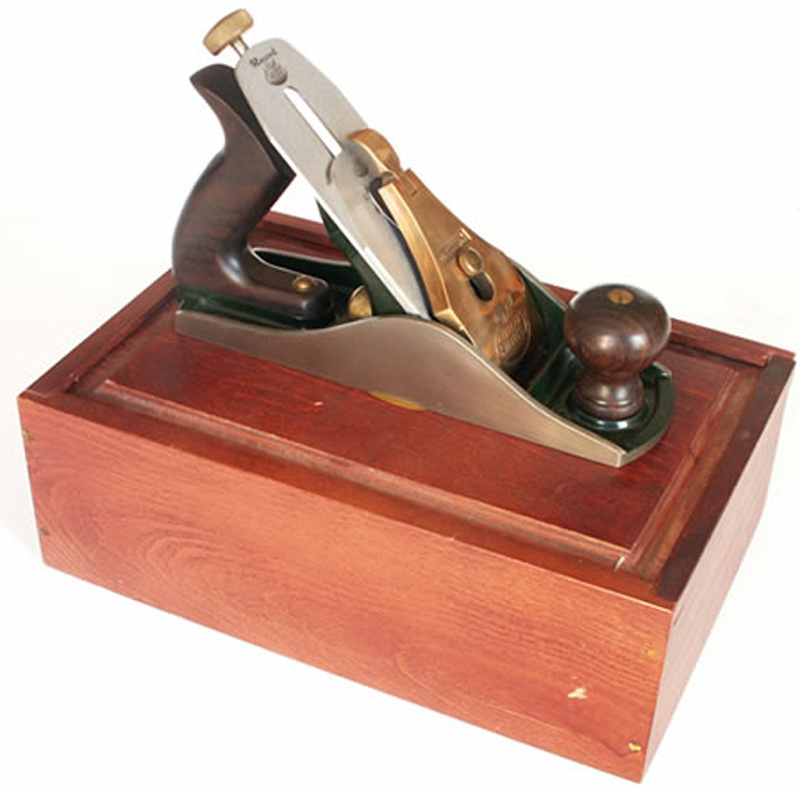

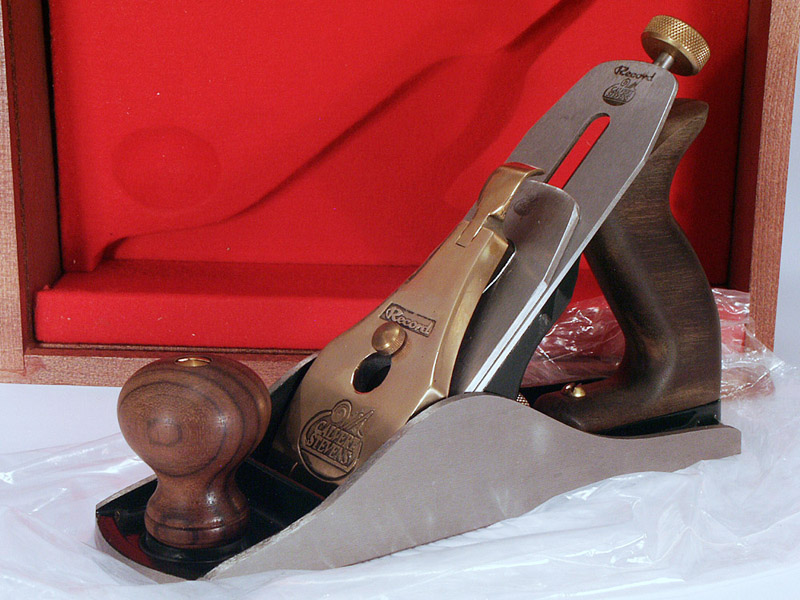

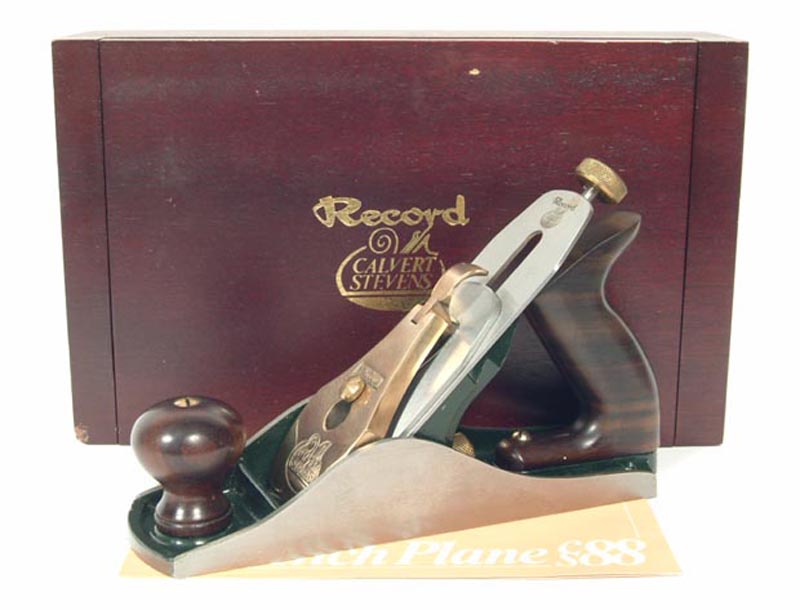

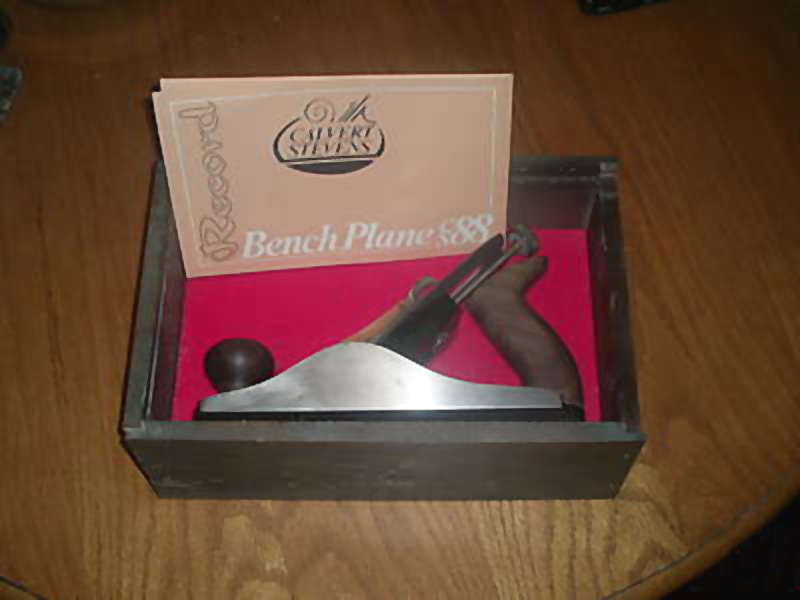

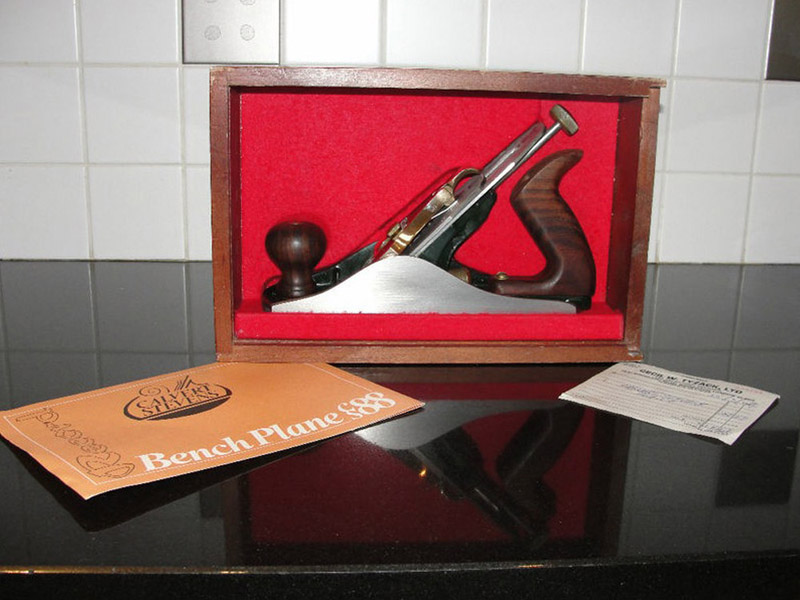

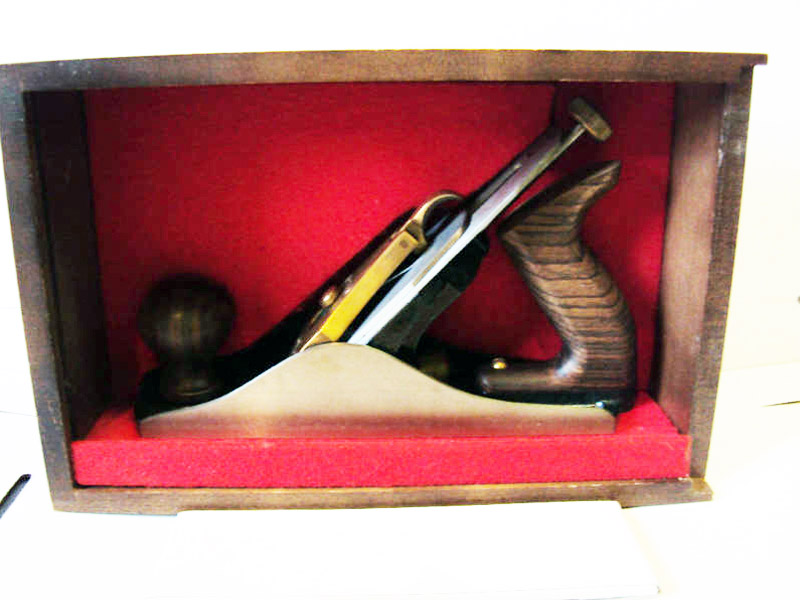

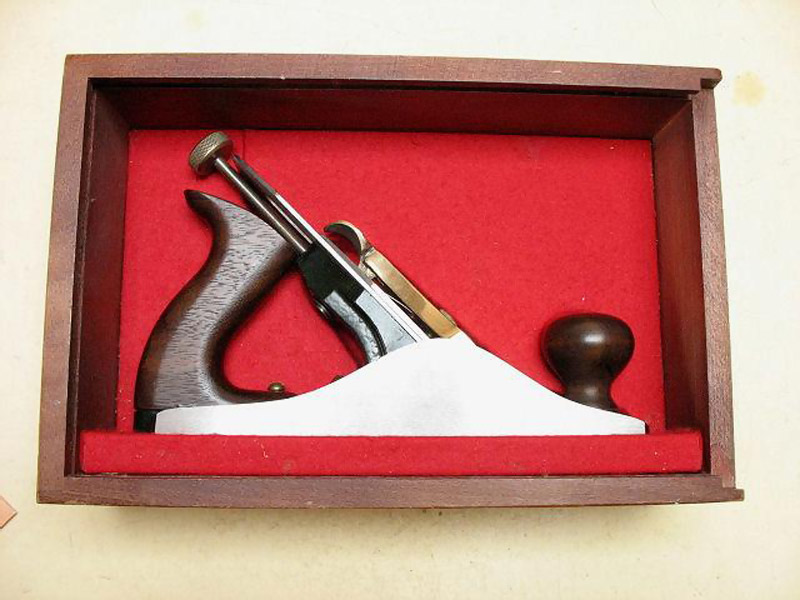

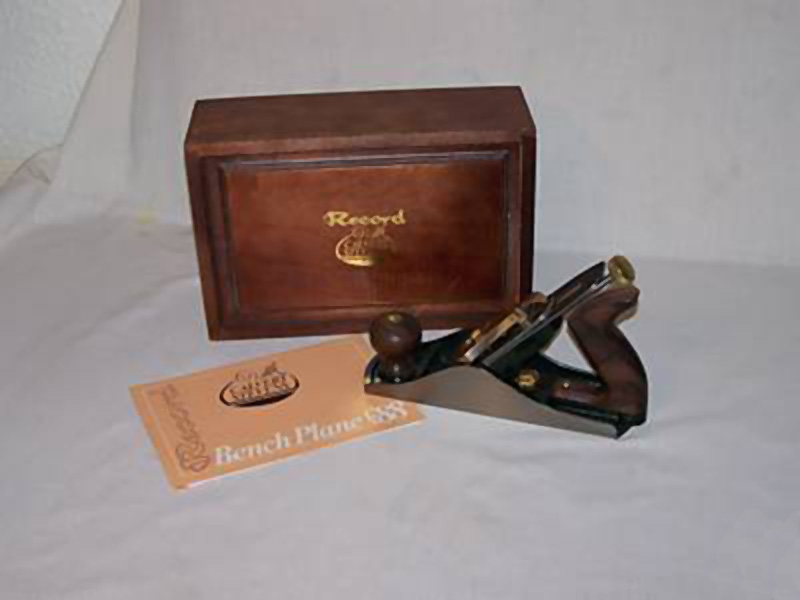

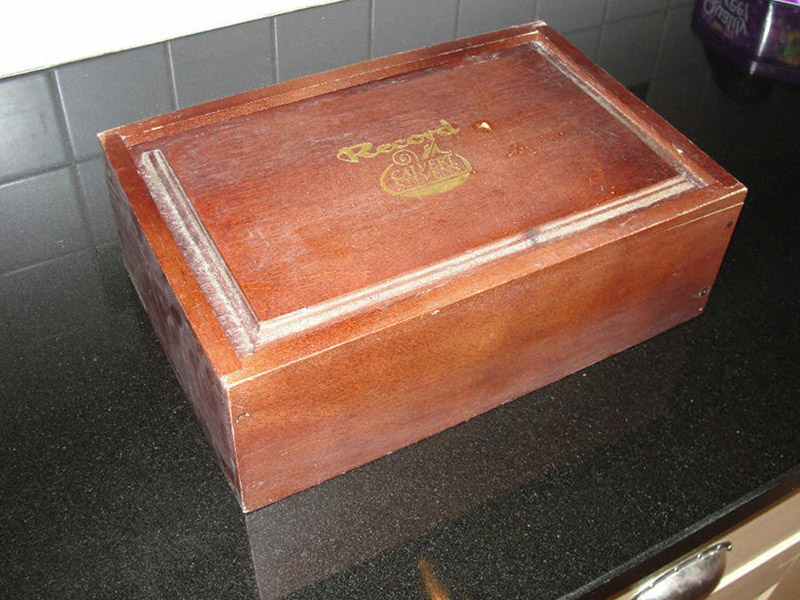

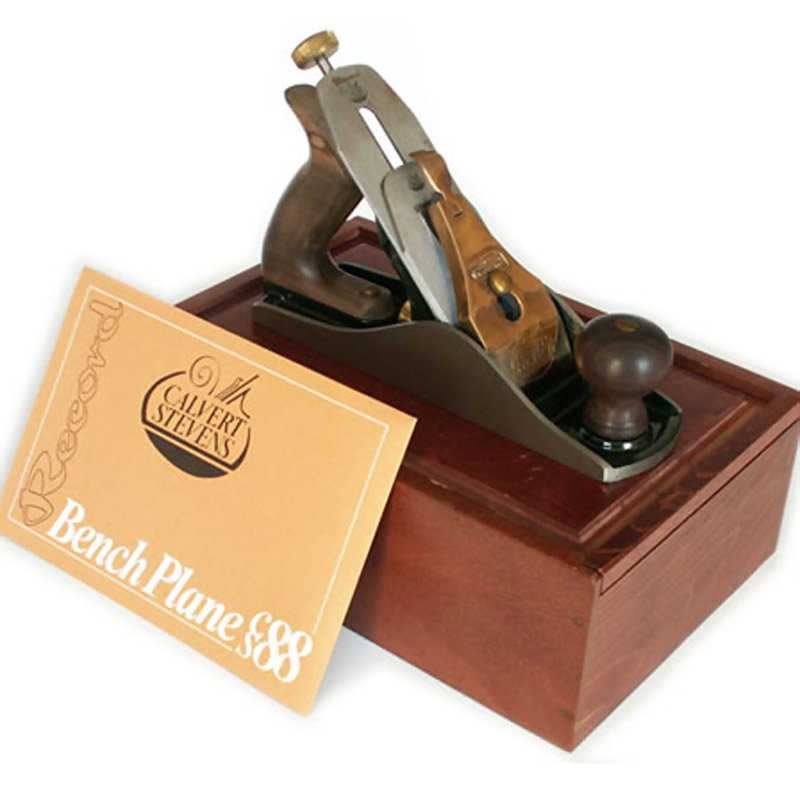

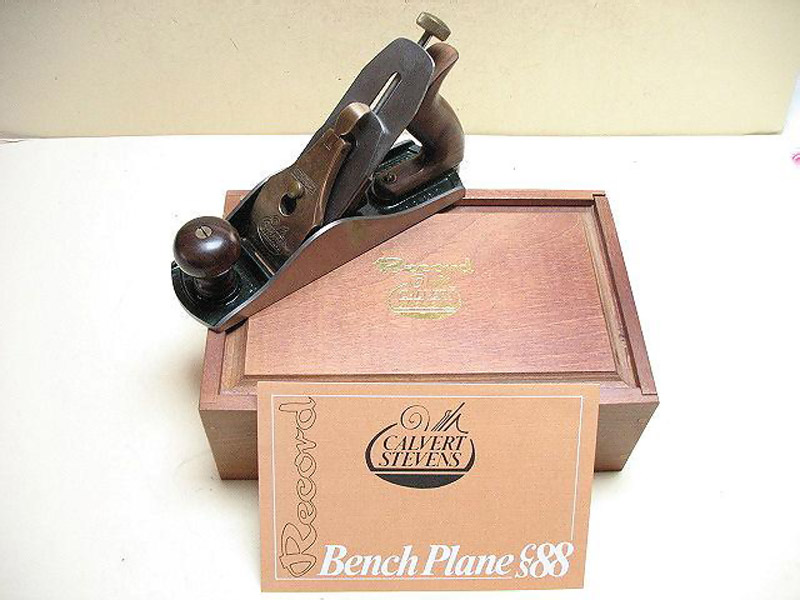

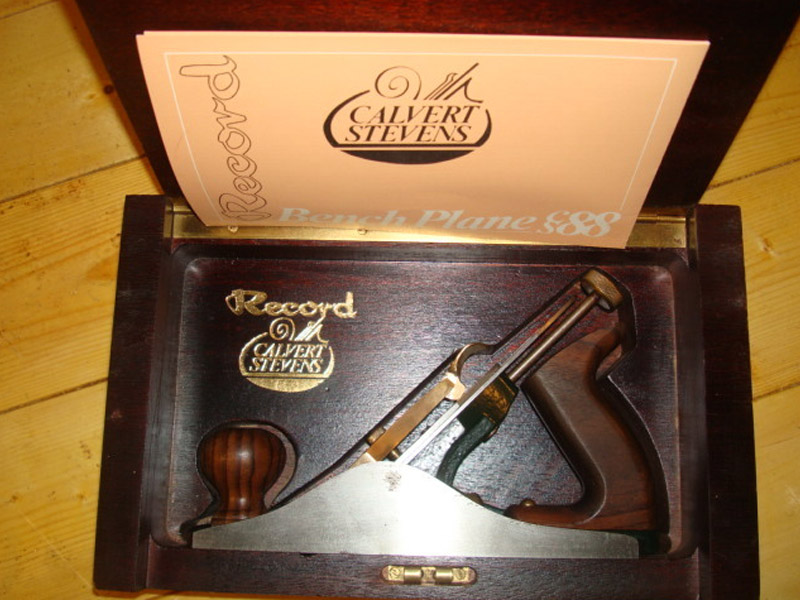

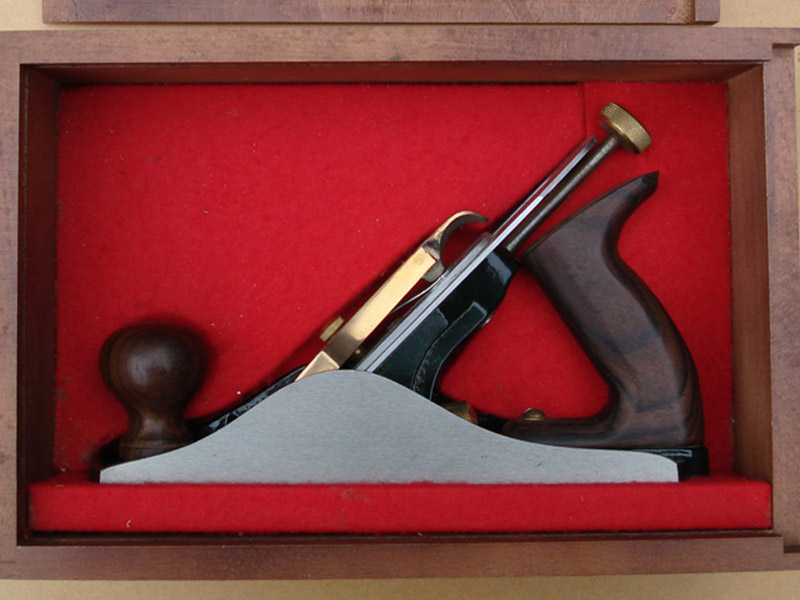

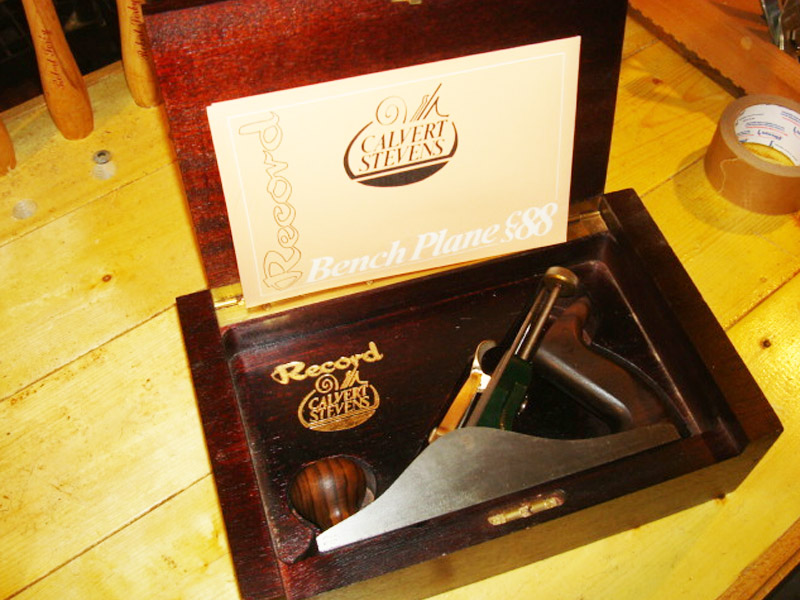

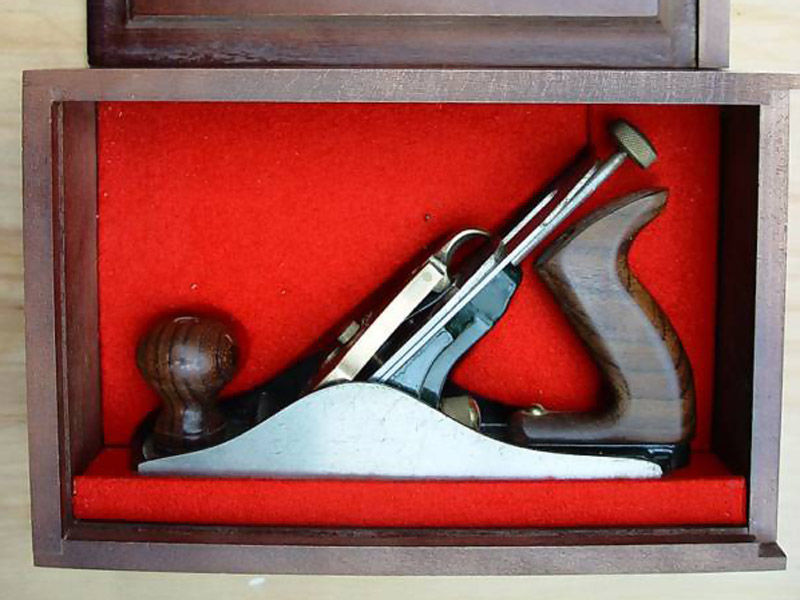

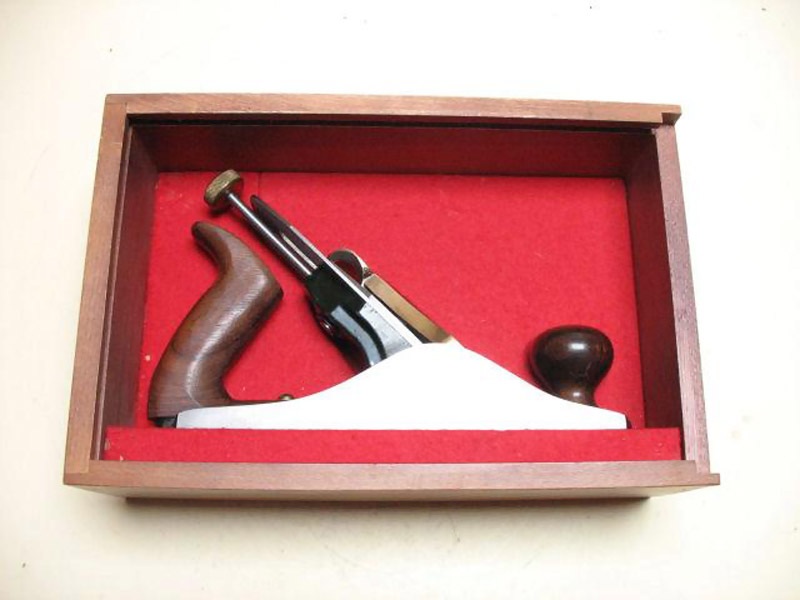

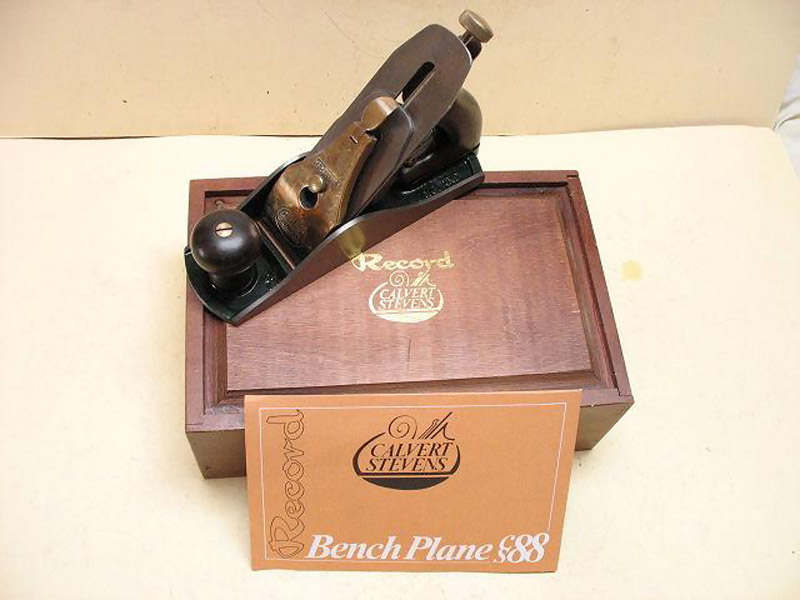

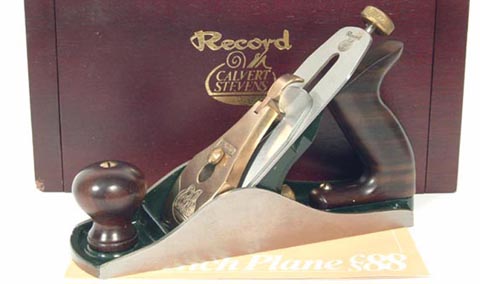

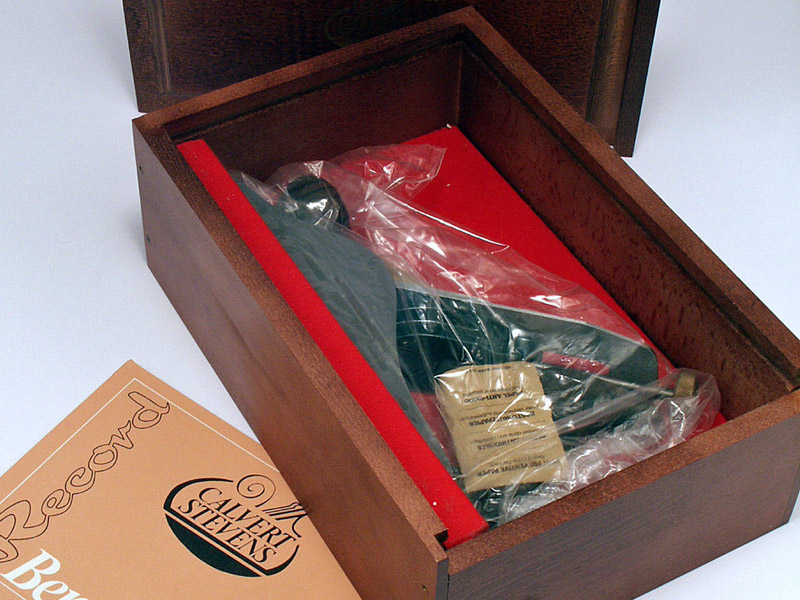

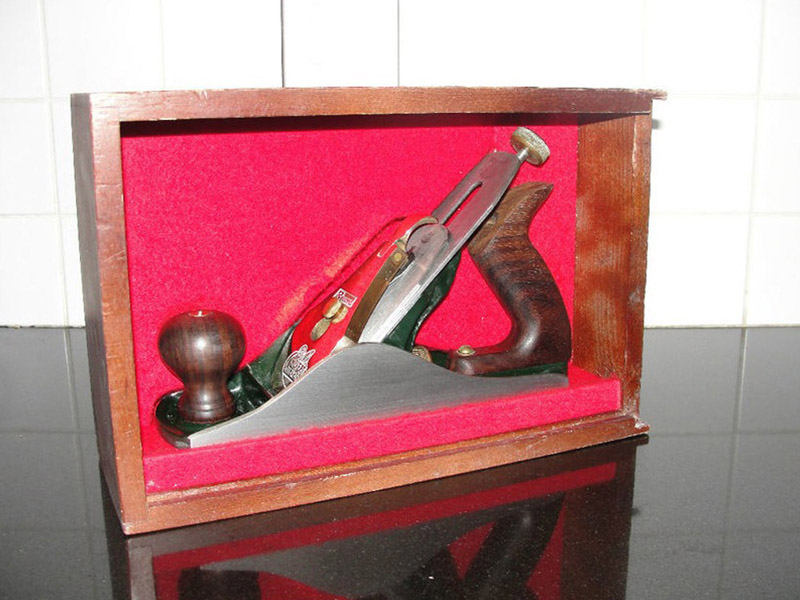

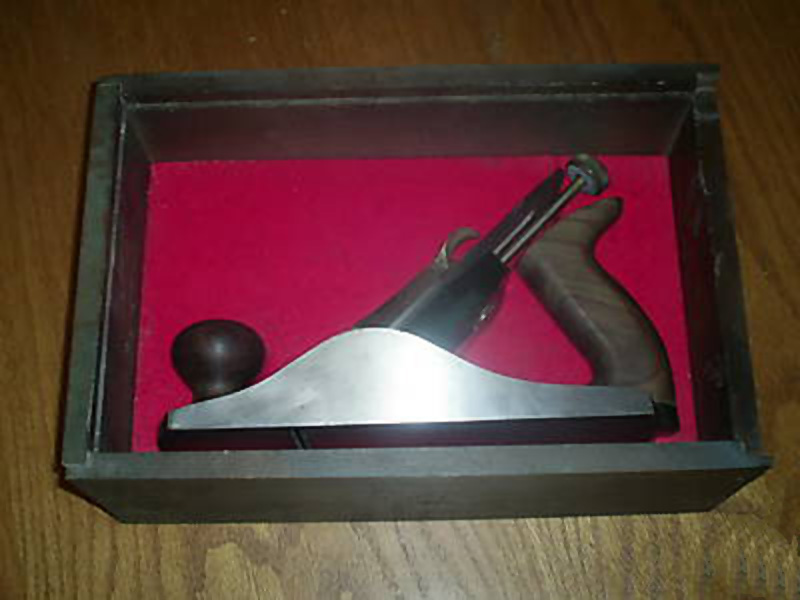

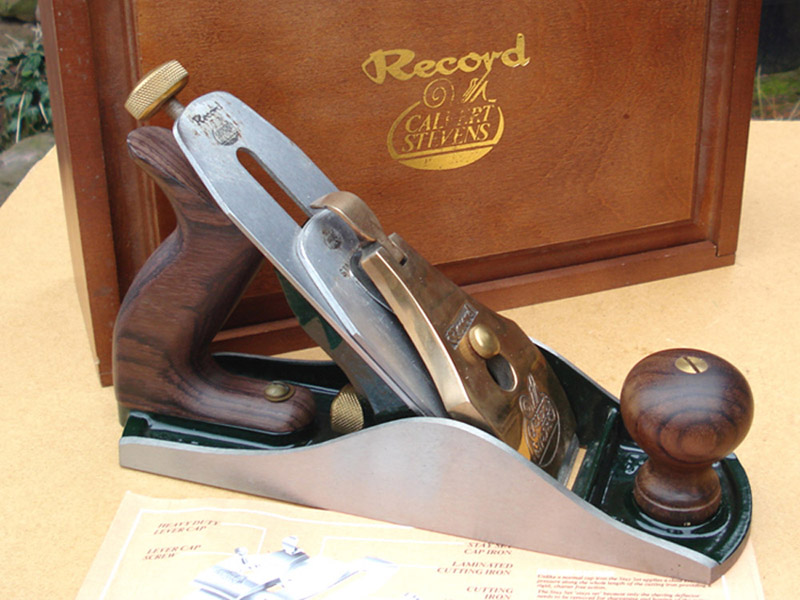

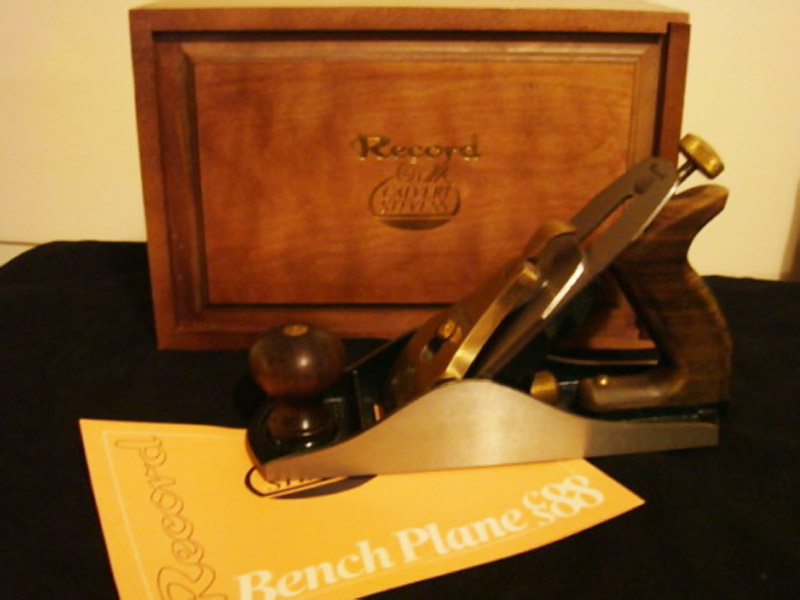

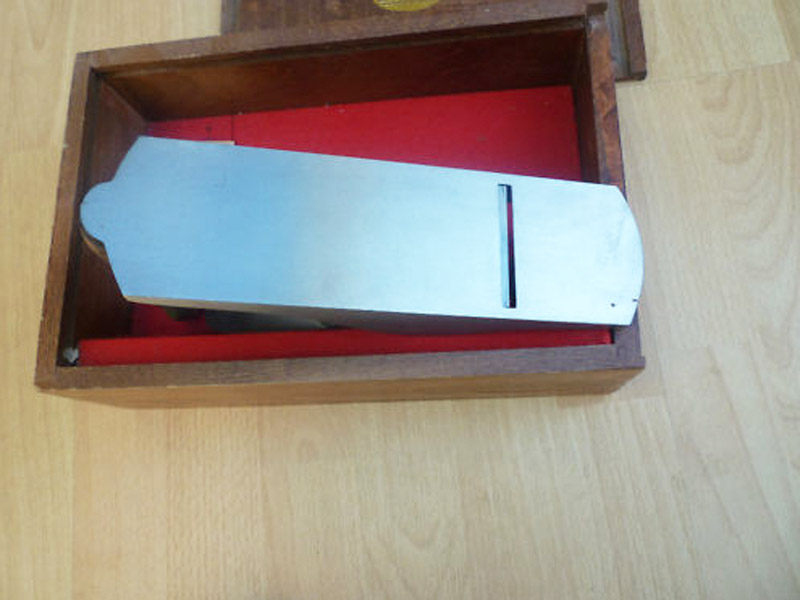

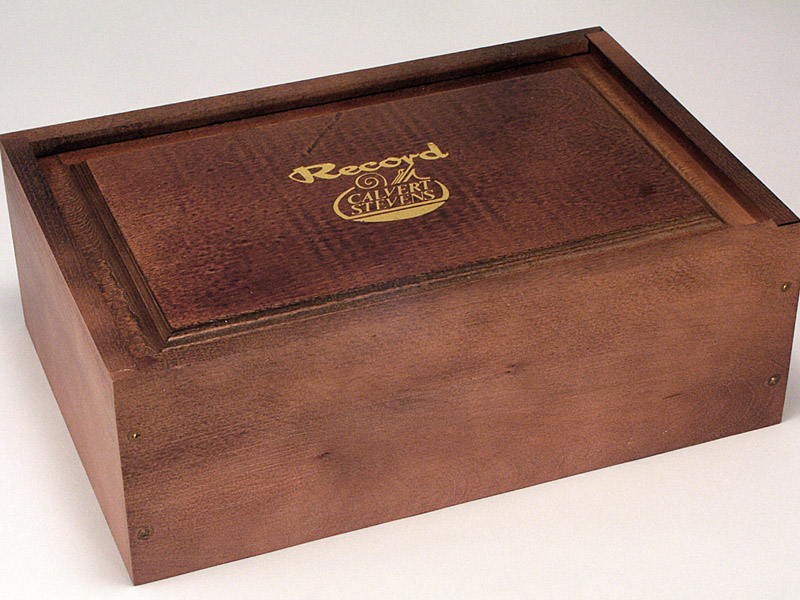

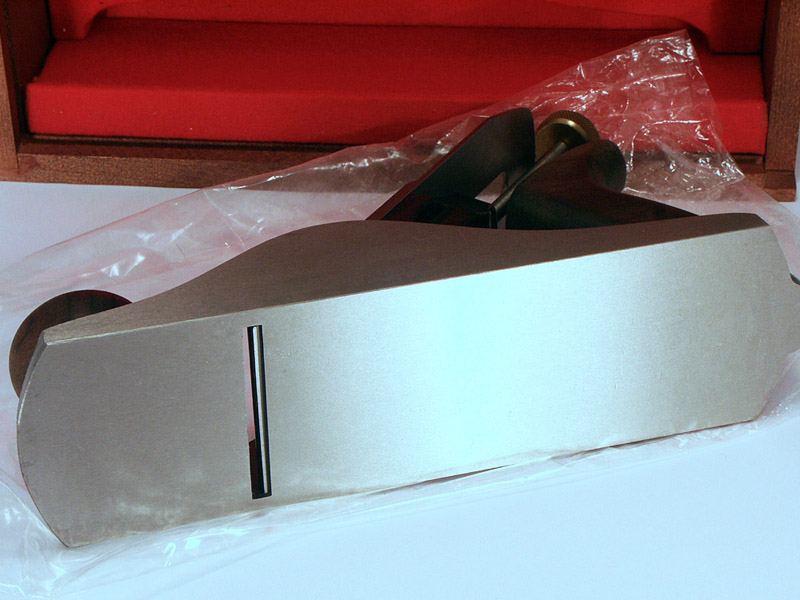

The Record CS88 was supplied in a baize-lined stained wooden box.
Specifications:
| Manufactured: | From 1988 to 1990 |
| Length: | 9 inches |
| Weight: | 5-1/4 pounds |
| Cutter Width: | 2-3/8 inches |
| Construction: | Cast iron body, rosewood handle & knob. Laminated steel cutter with brass Norris-style adjuster |
| Finish: | Dark Green Enamel |
| Features: | Superior quality & workmanship. Norris style adjuster |
| Uses: | Superior quality bench plane |
| Average Dealer Price: | $150 to $300 |
| Average eBay Price: | $150 to $340 |
| Prices Updated: | December 2008 |
 |  |  |
 |  |  |
Record Planes on eBay right now...
 |
 Record 730 Fibre Board Plane w Original Box Stanley  US $149.50
|
 Record UK No 73 Rabbet Plane Heavy Item US $136.65
|
 Record UK No 042 Rabbet Plane In box Heavy Item US $132.10
|
 22 RECORD 7 JOINTER PLANE BOX BOOKLET WATER STONES US $89.99
|
 Record No 078 England Blue Plane Rabbet Fillester US $79.95
|
 Vintage Boxed RECORD 311 Bull Nose Shoulder Plane US $77.01
|
 New Irwin Record No 5 Jack Plane w Rosewood Handles US $75.00
|
 RECORD No 06C corrugated wood plane US $63.28
|
 EXCELENT RECORD BULL NOSE RABBIT PLANE NO 077A VINTAGE US $49.95
|
Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
