Record No. 077A Bull-Nose Rabbet Plane
Record No. 077A Bull-Nose Plane
as illustrated in Catalogue No. 15, February 1938

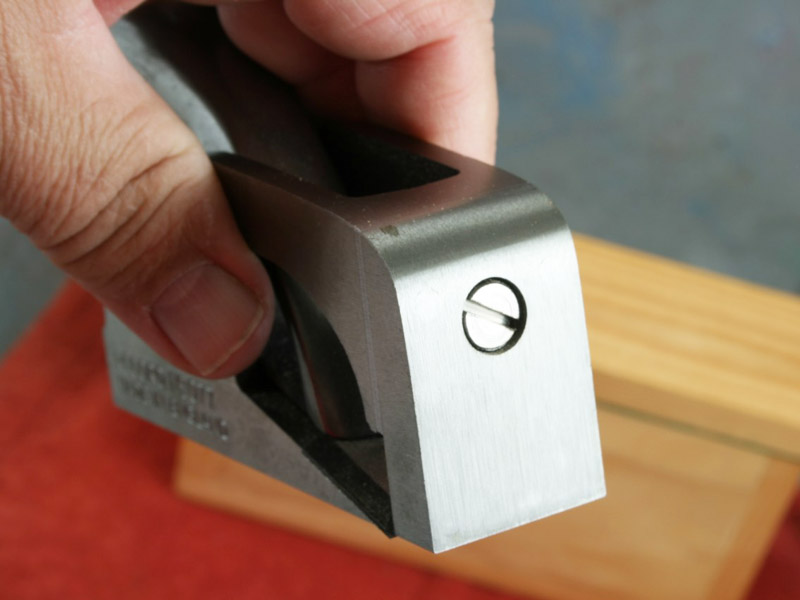

This plane is for fine work where extreme accuracy is required. The base and sides are accurately machined and ground. An improved adjustable mouth has been embodied in this plane by fitting two steel distance pieces in between the detachable nose and the plane body, which gives four varying openings for fine or coarse work.
It can be used as a chisel plane by removing the nose.
It has screw adjustment for regulating the depth of cut, and is fitted with a tungsten steel cutter.
Packed in a varnished wood box with sliding lid.
First introduced in a Price List in August 1933.
Specifications:
| Manufactured: | From 1933 to 1994 |
| Length: | 4 inches |
| Weight: | 1-1/4 pounds |
| Cutter Width: | 1-1/8 inches |
| Construction: | Cast iron body. Tungsten steel cutter |
| Finish: | Nickel or Rustless Plated |
| Features: | Cutter & mouth adjustment. Detachable nose |
| Uses: | For accurate and detailed rabbeting |
| Average Dealer Price: | $50 to $120 |
| Average eBay Price: | $40 to $100 |
| Prices Updated: | December 2008 |
 |  |  |
 |  |  |
 |  |  |
