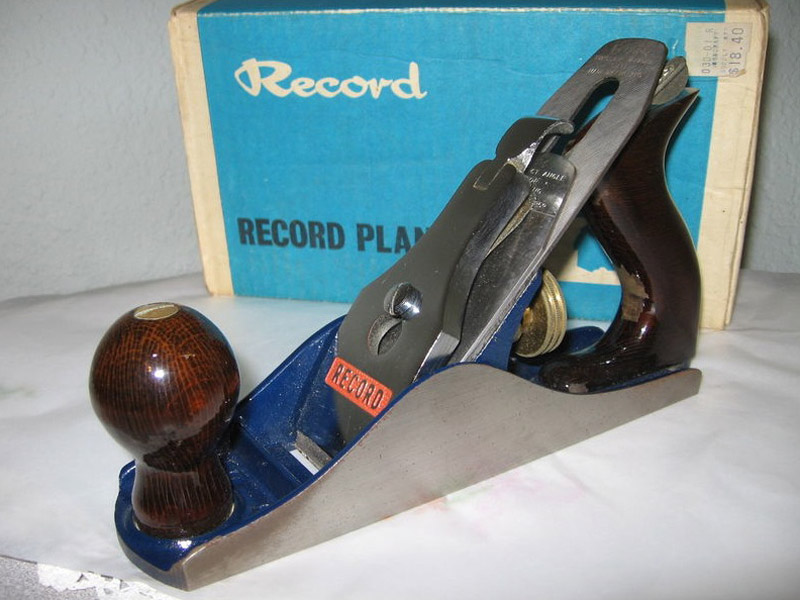

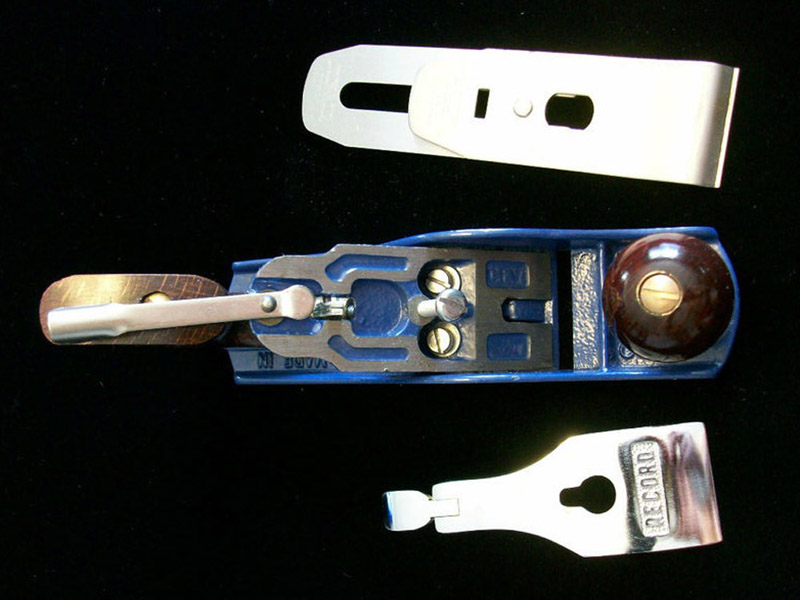

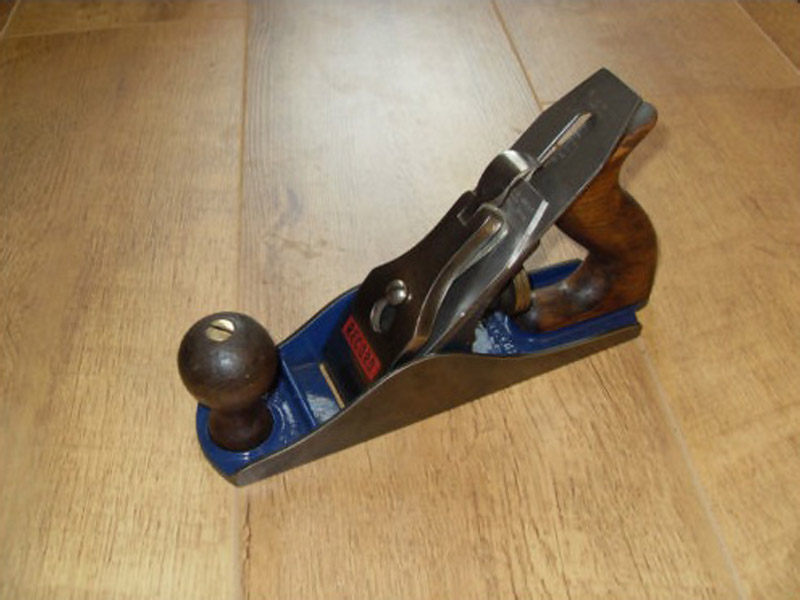

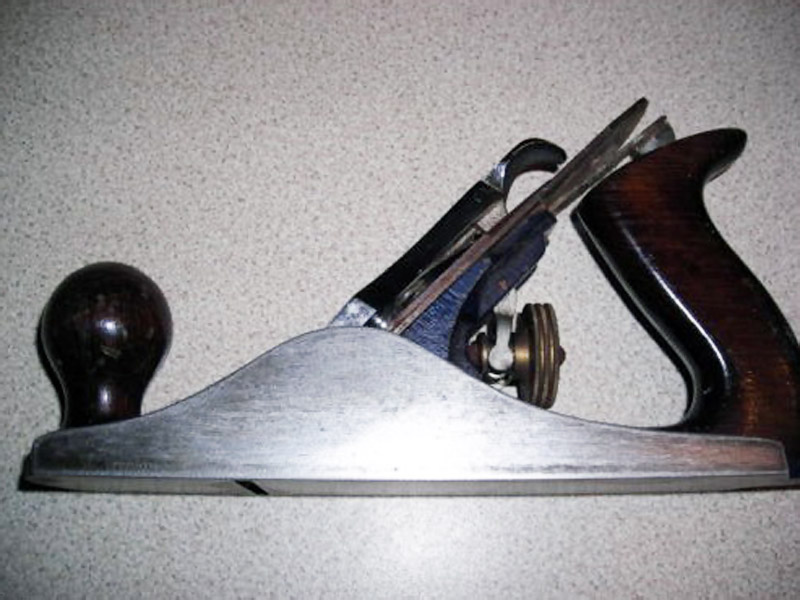

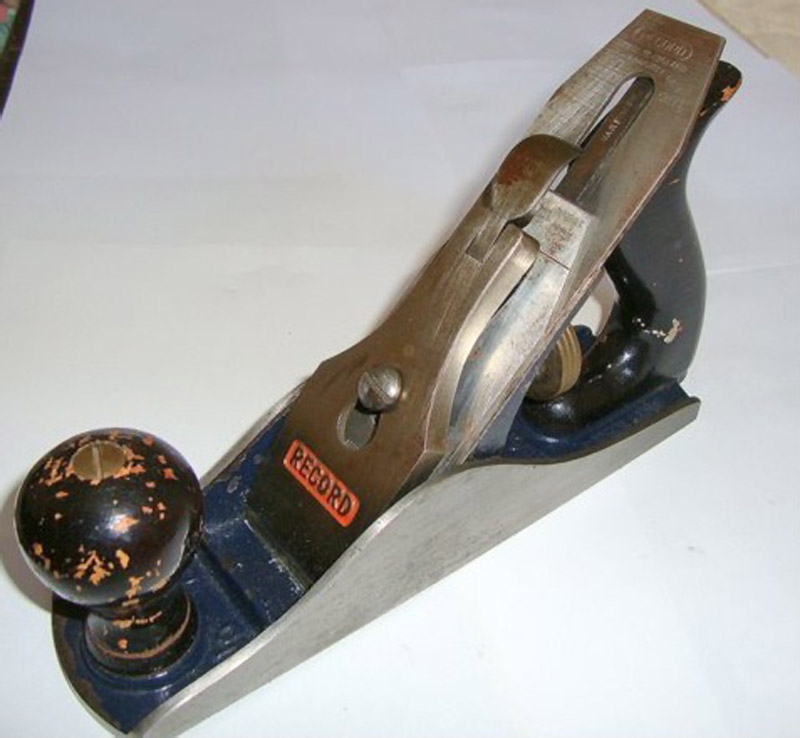

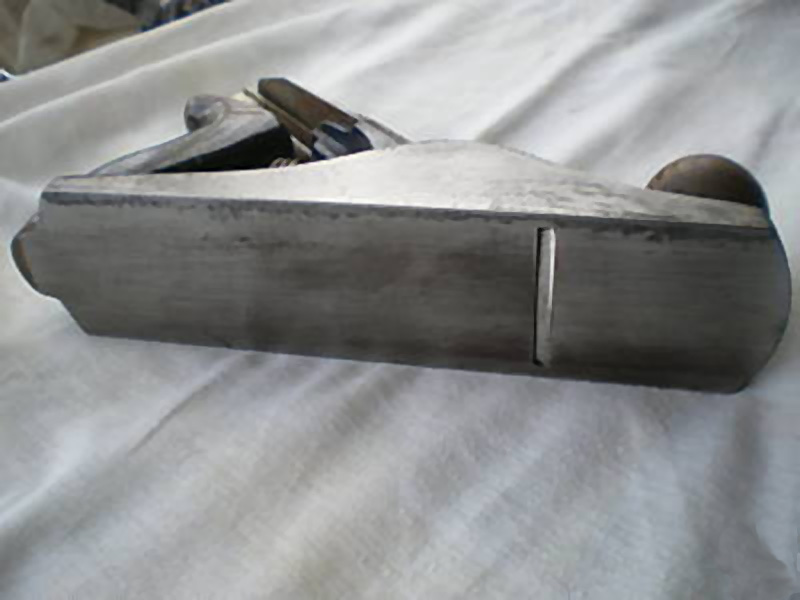

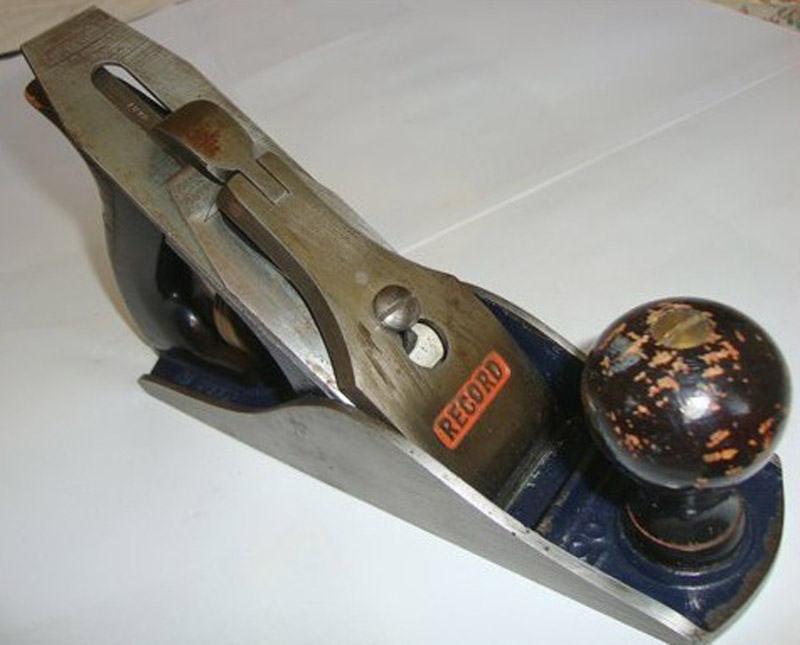

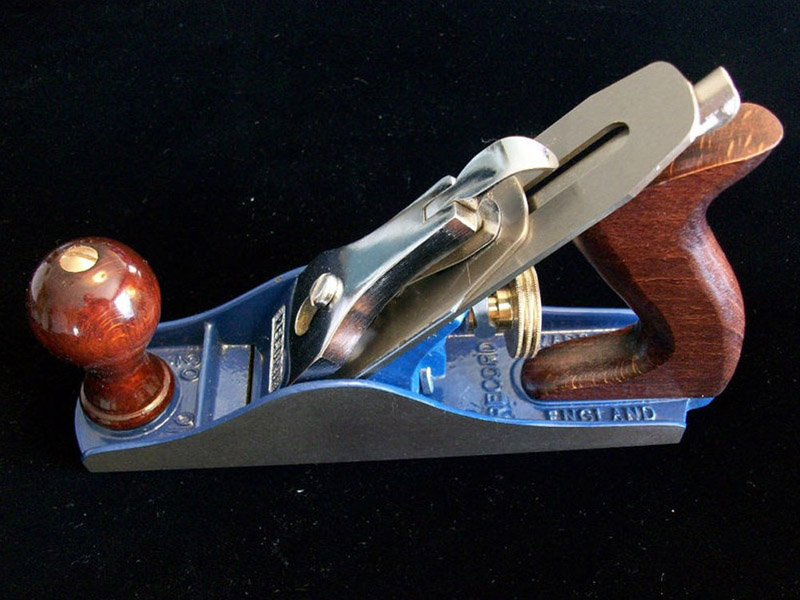

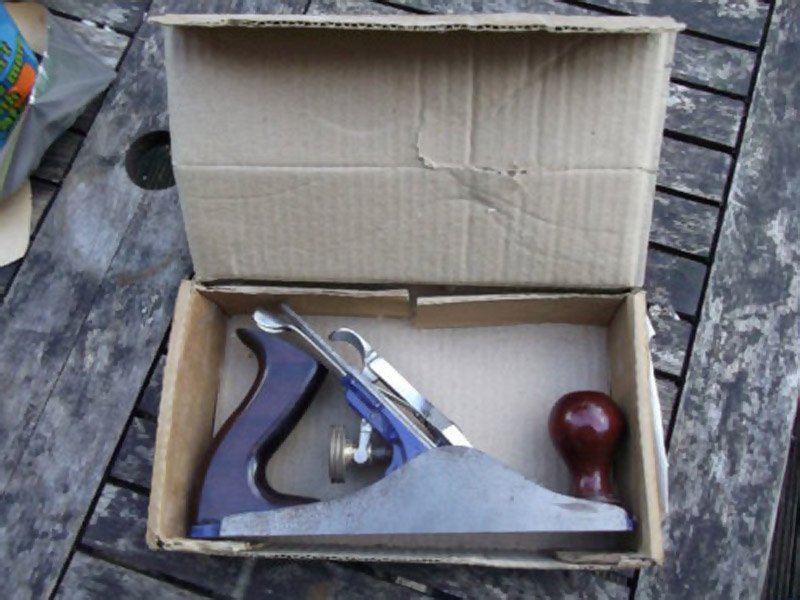

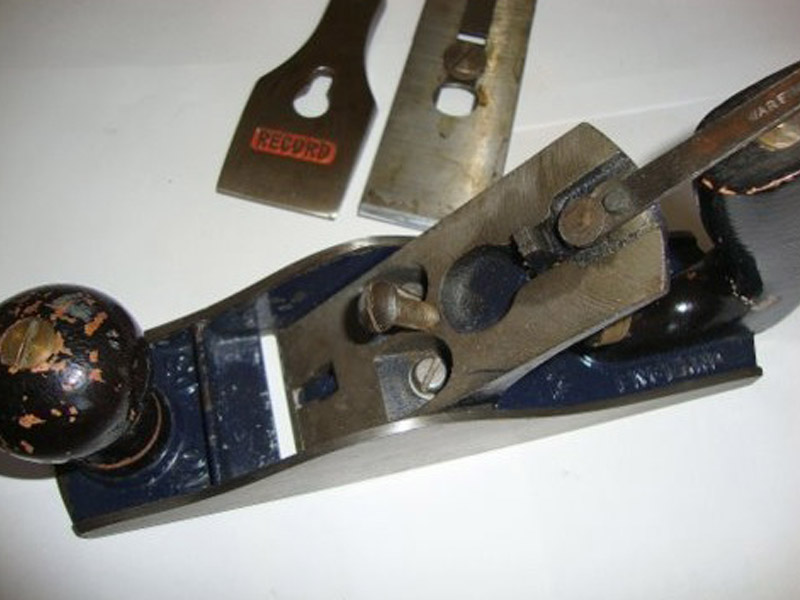

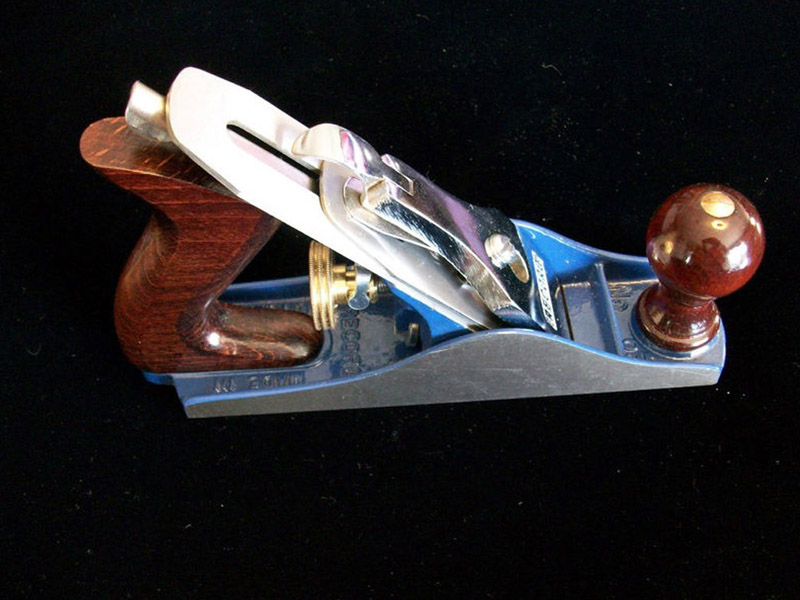

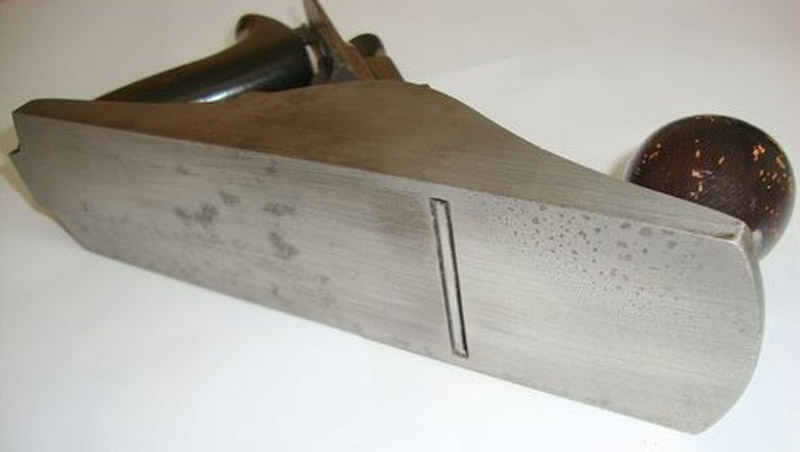

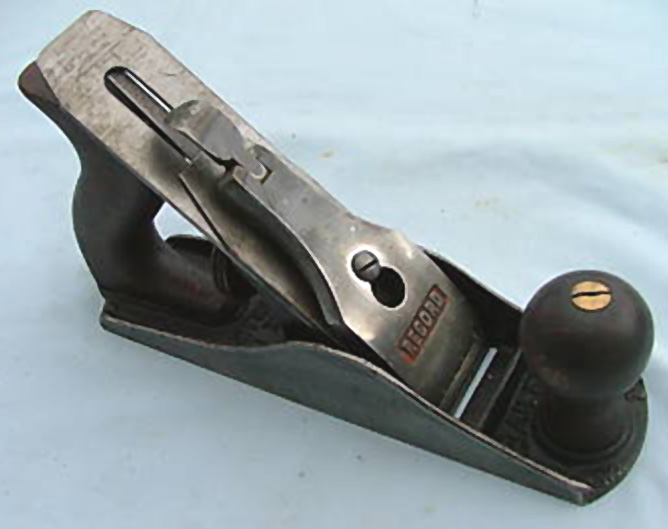

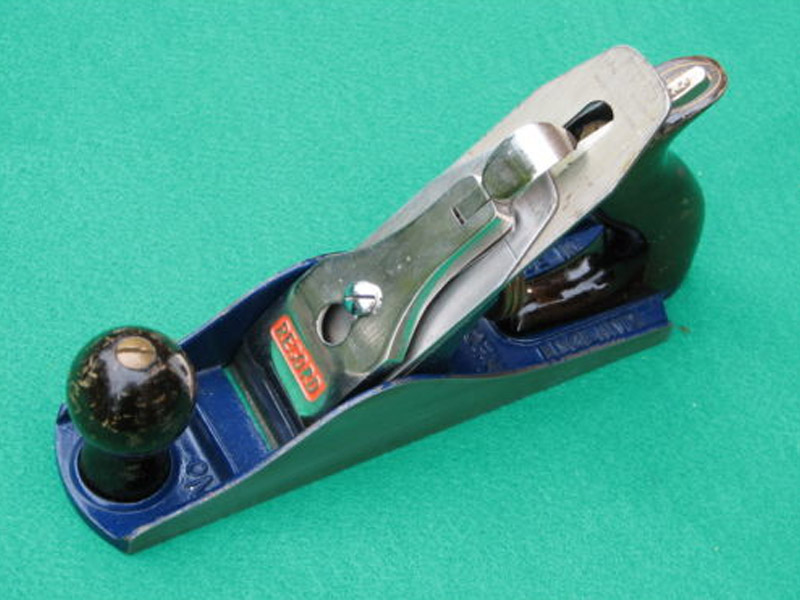

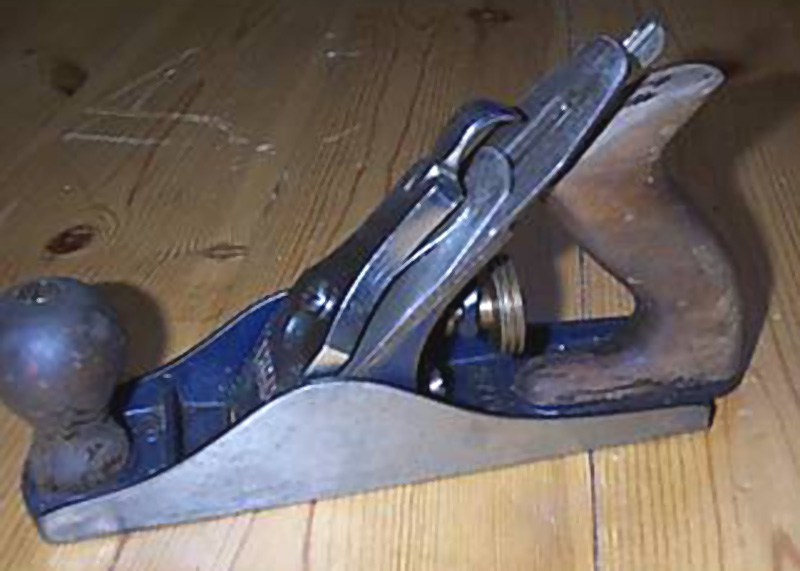

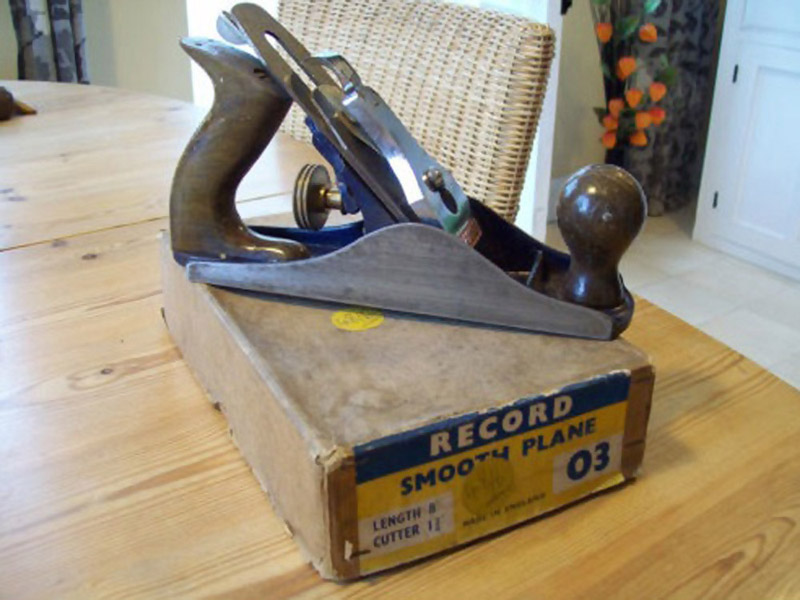

Record No. 03 Smooth Plane
Record No. 03 Smooth Plane

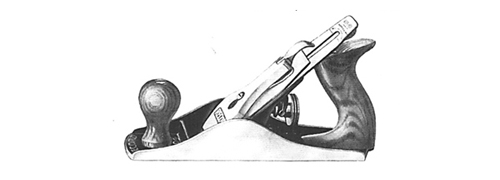

as illustrated in Catalogue No. 15, February 1938

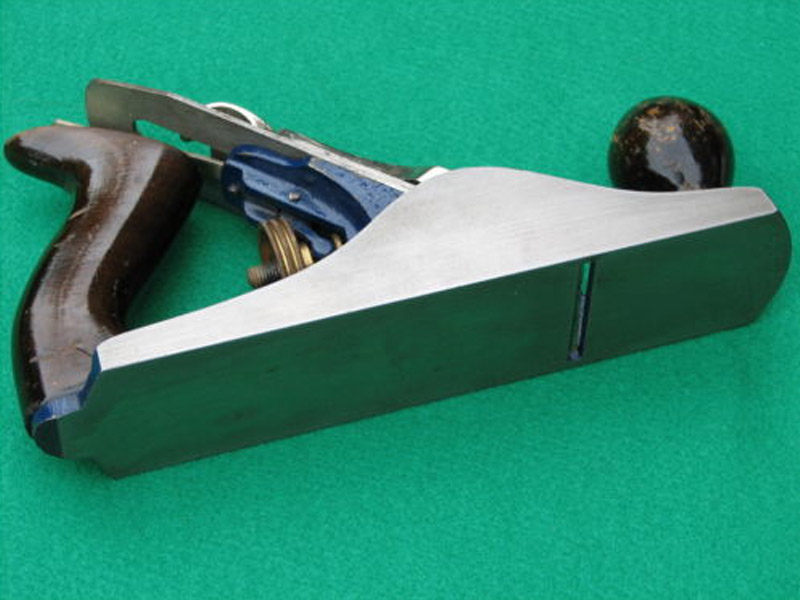

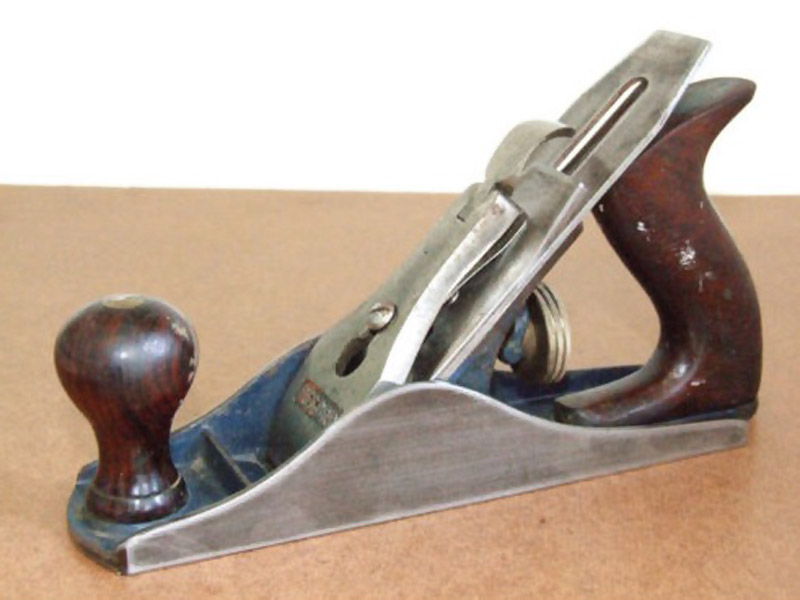

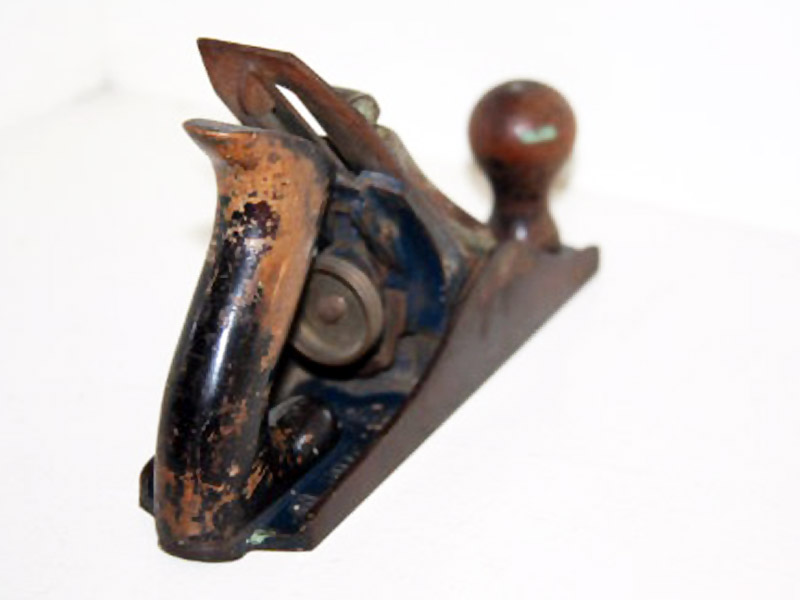

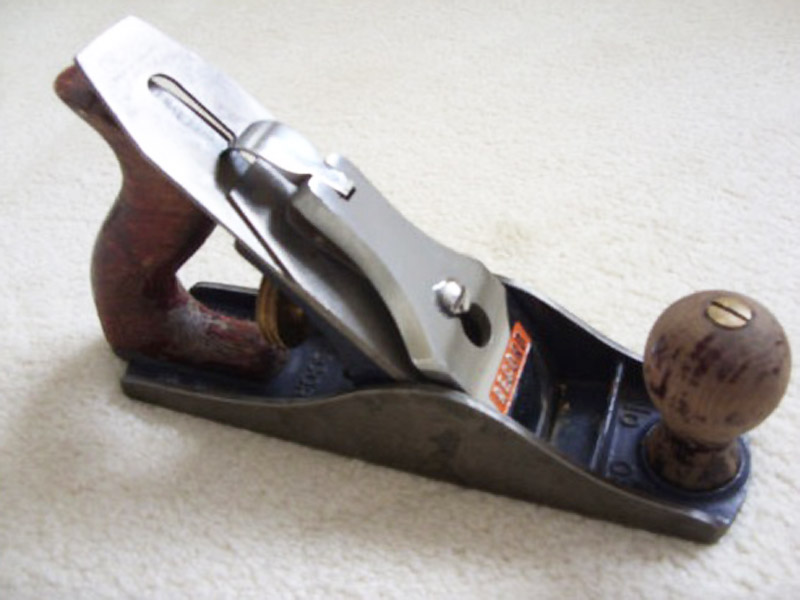

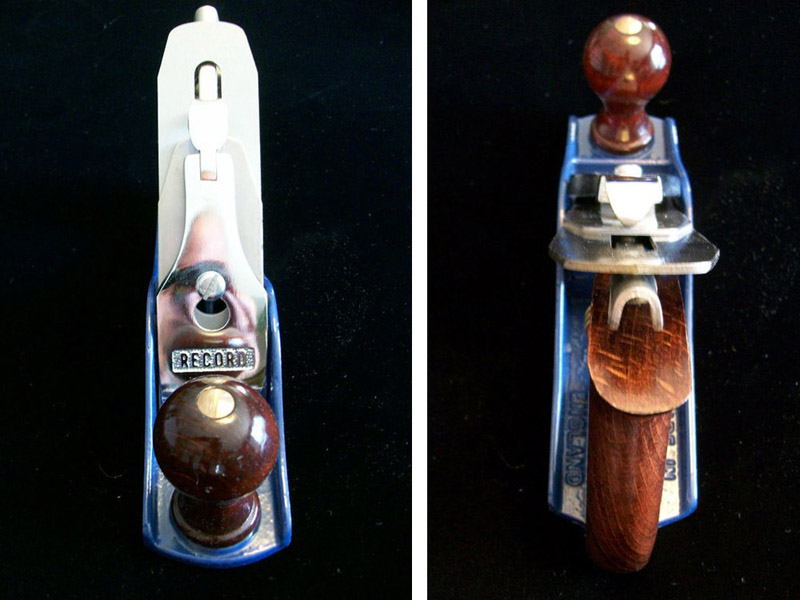

This plane features end and side adjustment of the cutter. Handles and knobs are of selected rosewood (post-war models are made of beech and late 1990's models were made of impact resistant resin, or plastic.)

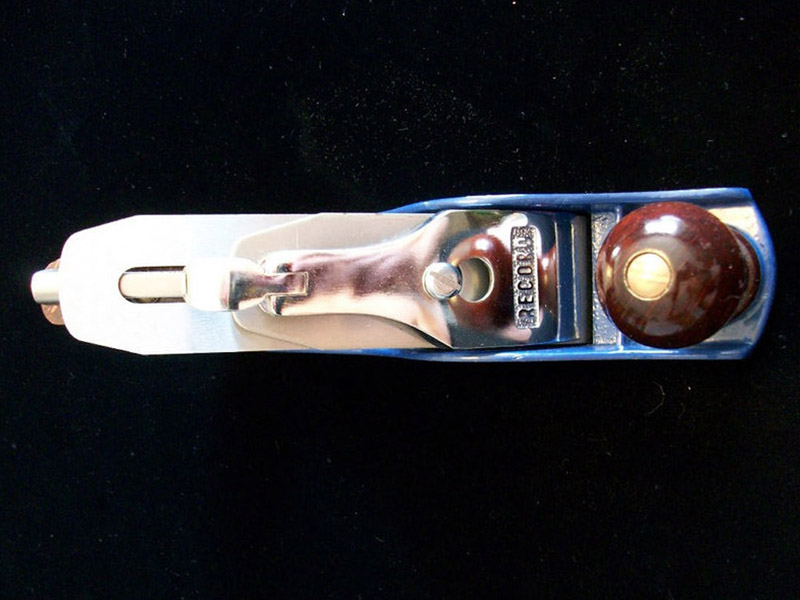

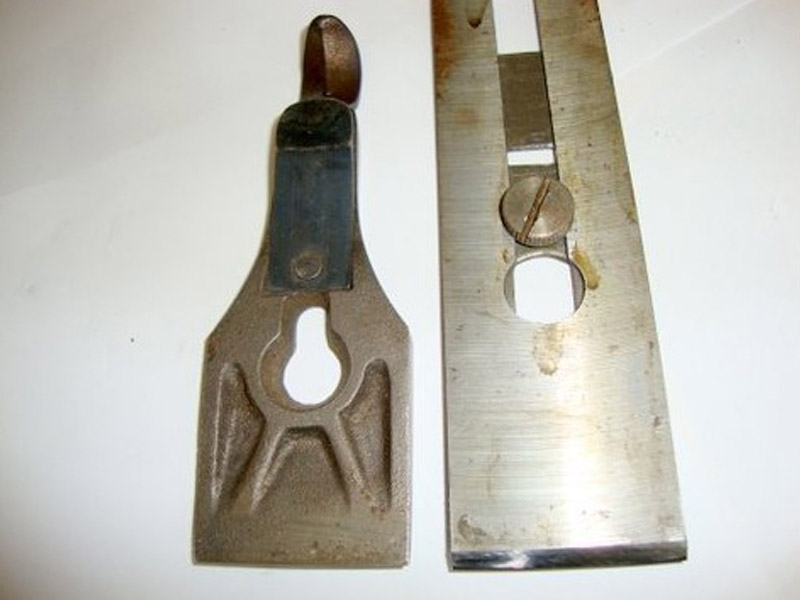

Lever caps and small screws were nickel plated on early models. A brass screw replaced the cam lever in 1995.
First introduced in Catalogue No. 10, published in January 1931.
Specifications:
| Manufactured: | From 1931 to 1997 |
| Length: | 8 inches |
| Weight: | 3-1/4 pounds |
| Cutter Width: | 1-3/4 inches |

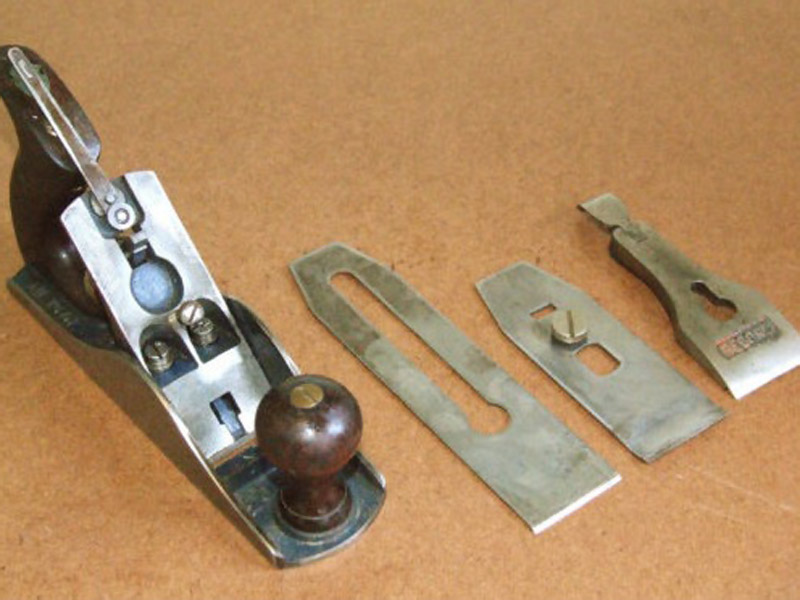

| Construction: | Cast iron body, rosewood, stained beech or plastic handle & knob. Tungsten steel cutter with brass adjuster |
| Finish: | Blue Enamel |
| Features: | Compact size |
| Uses: | Small smooth plane |
| Average Dealer Price: | $40 to $80 |
| Average eBay Price: | $40 to $70 |
| Prices Updated: | December 2008 |
 |  |  |
 |  |  |
 |  |  |
 |  |
Record Planes on eBay right now...
 |
 Record No 078 England Blue Plane Rabbet Fillester  US $79.95
|
 Record 730 Fibre Board Plane w Original Box Stanley US $149.50
|
 Record Plough Plane 044c US $79.00
|
 VINTAGE RECORD 405 MULTI PLANE Compare to Stanley 45 US $350.00
|
 RECORD 04 SMOOTHING PLANE MADE BY MARPLES US $21.99
|
 VINTAGE RECORD COMBINATION PLANE 50A IN BOX COMPLETEBK US $45.71
|
 vintage RECORD PLANE 010 made in England nos US $112.89
|
 vintage RECORD PLANE 04 made in England US $41.00
|
 Record 010 hand plane with box US $50.00
|
Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
