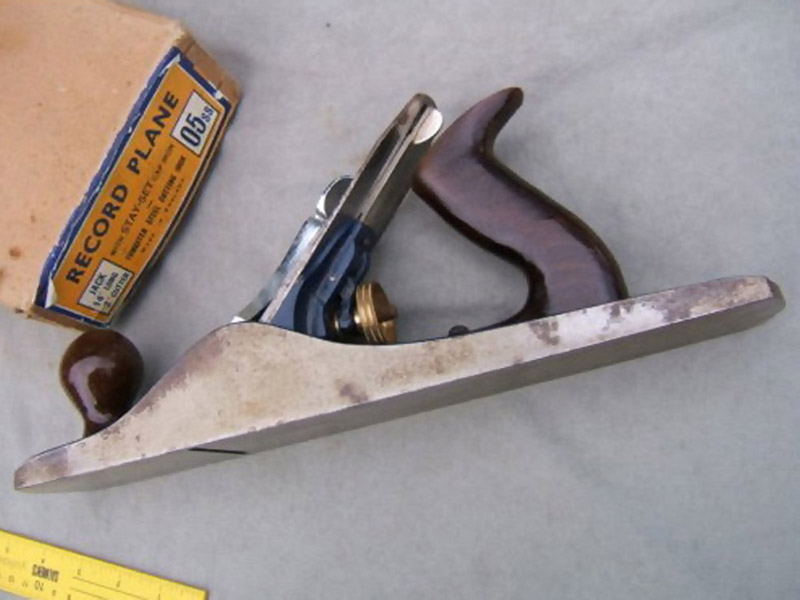

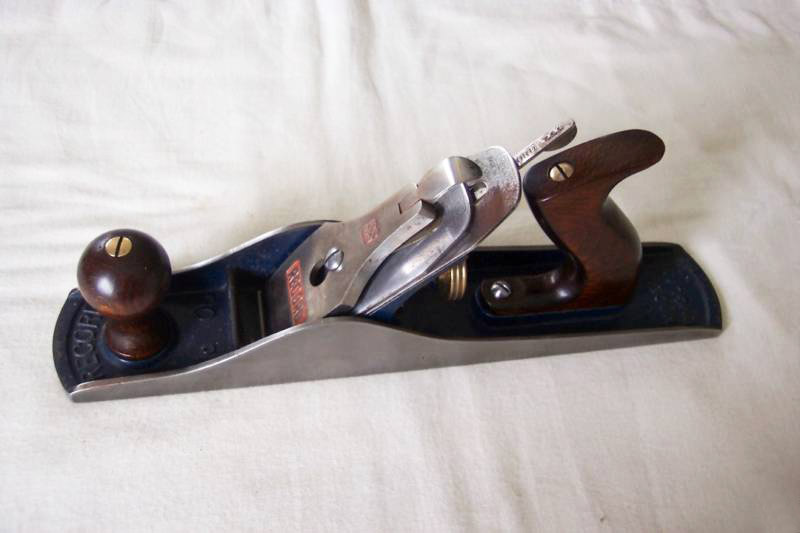

Record No. 05 SS Jack Plane
as illustrated in Catalogue No. 15, February 1938
NOTE: The 05 SS Jack Plane was exactly the same as the 05 except that it had the letters “SS” cast into the lever cap above the screw hole. The box label also had “SS” after the model number. The plane was sold at the same price as the 05.
This plane features end and side adjustment of the cutter. Handles and knobs are of selected rosewood (post-war models are made of beech.)
Lever caps and small screws were nickel plated on early models. All SS (Stay set) models were discontinued in 1965.
First introduced in Catalogue No. 10, published in January 1931.
Specifications:
Manufactured: | From 1931 to 1965 |
Length: | 14 inches |
Weight: | 4-3/4 pounds |
Cutter Width: | 2 inches |
Construction: | Cast iron body, rosewood or stained beech handle & knob. Tungsten steel stay set cutter with brass adjuster |
Finish: | Blue Enamel |
Features: | Stay set cutting iron |
Uses: | General purpose jack plane |
Average Dealer Price: | $60 to $120 |
Average eBay Price: | $55 to $120 |
Prices Updated: | December 2008 |
Record Planes on eBay right now…
Please note that the average prices for Record planes have been determined by keeping track of planes sold on eBay, internet auctions, actual real-world auctions, through dealers and various dealer websites. They should only be used as a guide and it should be noted that all prices are dependent on the age, condition, completeness and rarity of a particular plane, as well as the presence, if any, of packaging and associated items, such as brochures, advertising or instructions.
